• Model NO.：sj-65,30
• Customized：Customized
• Condition：New
• After-sales Service：Provide Technical Support
• Transport Package：Export Packing
• Specification：16mm
• Trademark：WEIER
• Origin：Qingdao
• HS Code：84772090
• Production Capacity：150kg,H

Basic Info.

Model NO. sj-65/30 Customized Customized Condition New After-sales Service Provide Technical Support Transport Package Export Packing Specification 16mm Trademark WEIER Origin Qingdao HS Code 84772090 Production Capacity 150kg/H

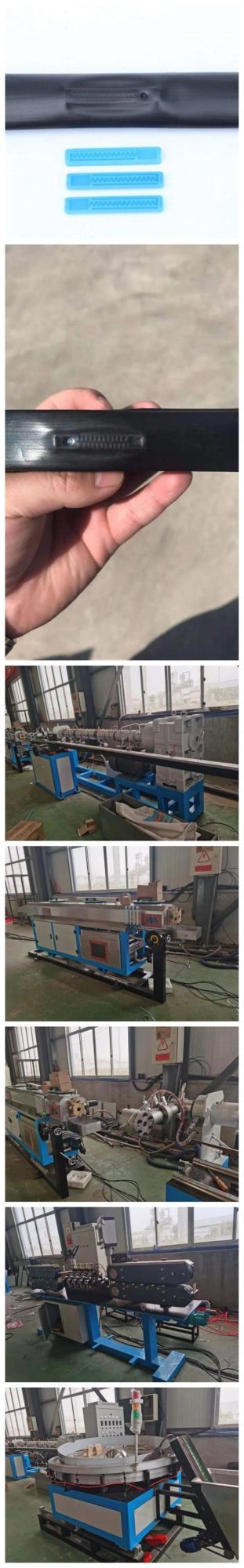

Product Description

Tape Diameter 16mm

Tape Wall thickness 0.15-0.6mm

Dripper spacing 100-2000mm

Production speed Stable production speed:

1)While produce thin wall tape with thickness 0.15-0.2mm and dripper distance 30cm, the speed is ≥150m/min

2) While produce thick wall tape with thickness 0.6mm and dripper distance 30cm, the speed is ≥80m/min

 Cooling water 15-35ºC, purified water

 Dripper identification speed ≤1100 pc / min

 Punching speed 900 holes/min

Hauling speed ≤200 m/min

Coiling speed ≤220 m/min

Package 500-2500m/coil

Total rated power 97KW/h

Actual consumption power 54-59 KW/h

Power Supply 3 phase 4 wire 380V 50Hz

Normal water consumption (circulating water) 0.1-0.5 m3/24h (natural vaporization & leakage)

 Normal air consumption 1.5m3/min 1

Production line dimension (L*W*H) 30000mm x 4000mmx 2500mm

FAQ1,Why choose us?
We are the professional manufacture focus on HDPE Pipe Production Line/HDPE Pipe Extrusion Machine/HDPE Pipe Line/HDPE Pipe Machine/PPR Pipe Extrusion Line and etc...
2,What's the advantage do we have?
We adopt high efficient extruder with deep groove and water recycle inside, high capacity,high efficient,energy saving;We have the updated product that keep innovate tehcnology according to the market requirement;
