Plastic Machinery

Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine

ZHEJIANG TONVA PLASTICS MACHINE CO., LTD.
  • Type:Extrusion Blow Molding Machine
  • Raw Material:HDPE
  • Making Method of Parison:Extrusion-Blow Molding
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008

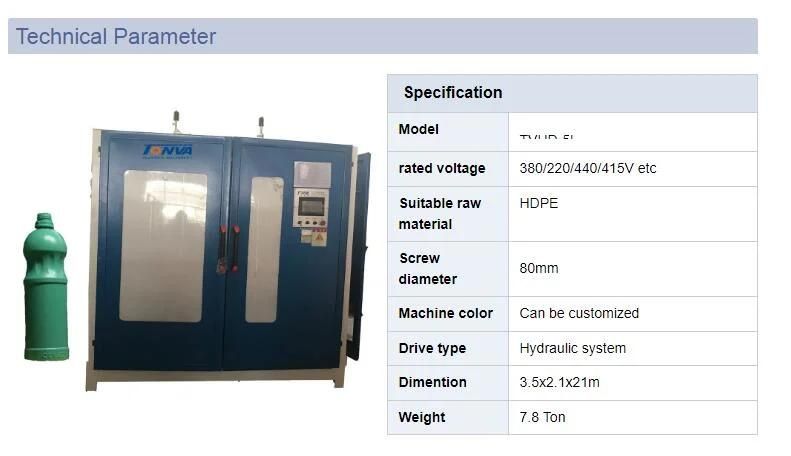

Base Info

  • Model NO.:TVHD-5L
  • Drive System:Pure Hydraulic or Hybrid Type
  • Machine Color:Customized
  • Maximal Volume:up to 5L
  • Cavity Number:3-Cavity
  • Output Capacity:Around 3000 Bph
  • Voltage:380,220,415,440V
  • View Stripe Line:Optional
  • Parison Control:Moog 100point
  • Machine Condition:New
  • After-Sale Service:Engineer Available for Overseas Installation
  • Place of Origin:Taizhou, Zhejiang
  • Suitable Material:HDPE
  • Extra Function:Optional
  • Advantage:Flexible Manufacturer
  • Auxiliaries:Optional
  • Transport Package:Water Proof Film or Standard Wooden Case
  • Specification:3.5*2.1*2.1
  • Trademark:TONVA
  • Origin:Zhejiang, Taizhou
  • HS Code:8477301000
  • Production Capacity:400sets Per Year

Description

Blow molding typeExtrusion blow molding machine,TVHD-5L-3(pure hydraulic system,  Double stations, three  die heads)Total power:59-63kwoutput capacity :around 800pcs per hour Suitable products making range:maximal volume: 5L,  power supply :440V/415V/380V/50HZ,3PHASEApplicable materials:pe/pp/pa/pvc etcPLC and HMI:Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture displayTonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine
Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine
Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine

Workshop:
Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine

Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine


Packing and Shipping:

Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine


Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine
Sample Room:
Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine

Exihibition and service:
Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine

Tonva Plastic Bleach Bottle Decolorizer Bottle Production Extrusion Blow Molding Machine
