High Quality Plastic Waste Recycling Plant PP Woven Bag and LDPE HDPE PE Farm Film Washing ...
ZHANGJIAGANG RETECH MACHINERY CO., LTD.- After-sales Service：Video Technical Support, Free Spare Parts, Field I
- Warranty：1 Year
- Material Processed：Film and Bags
- Plastic Type：PP PE LDPE HDPE MDPE
- Screw：Single-Screw
- Automation：Automation
Base Info
- Model NO.：RM300,500,1000,1500,2000,2500,3000
- Computerized：Customized
- Certification：ISO9001:2008, CE
- Raw Material：Waste LDPE,LLDPE,HDPE Film, PP Raffia Bags, etc
- Final Moisture：Less Than 5%
- Condition：New
- Service Provided：Video Technical Support, Free Spare Parts, Field I
- Machinery Test Report：Provided
- Final Product：Clean LDPE,LLDPE,HDPE,PP,BOPP Flakes
- Final Flake Size：60-80mm or Customized
- Voltage：380V, 50Hz, Three Phase(Optinal)
- Power Supply：300kw,Hr
- Place of Origin：Jiangsu, China
- Water Consumption：4-10 Ton,H
- Machine Type：PP PE Washing Machine
- Core Components：PLC, Engine, Bearing, Gearbox, Motor, etc
- Transport Package：Stretch Film or Wooden Box
- Specification：35000mm*5000mm*4200mm
- Trademark：Retech machinery
- Origin：China
- HS Code：8477800000
- Production Capacity：100pieces,Year
Description

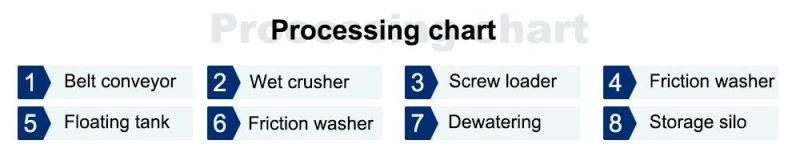

4.PP PE Washing Machine Working Procedure:
1. Belt conveyor→2.wet crusher→3.Friction screw conveyor→4.Floating washer→5.Friction screw conveyor→6.High speed friciton washer→7.Friciton screw conveyor→8.Dewatering machine→9.Drying system→10.Transition silo→11.Drying system→12.Storage silo→Electric panel

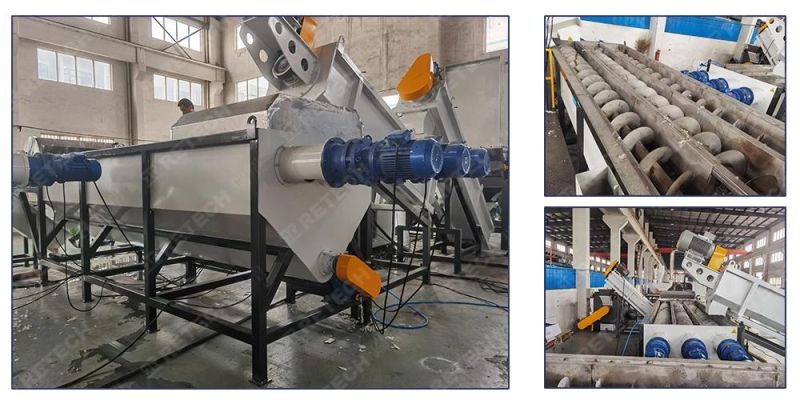

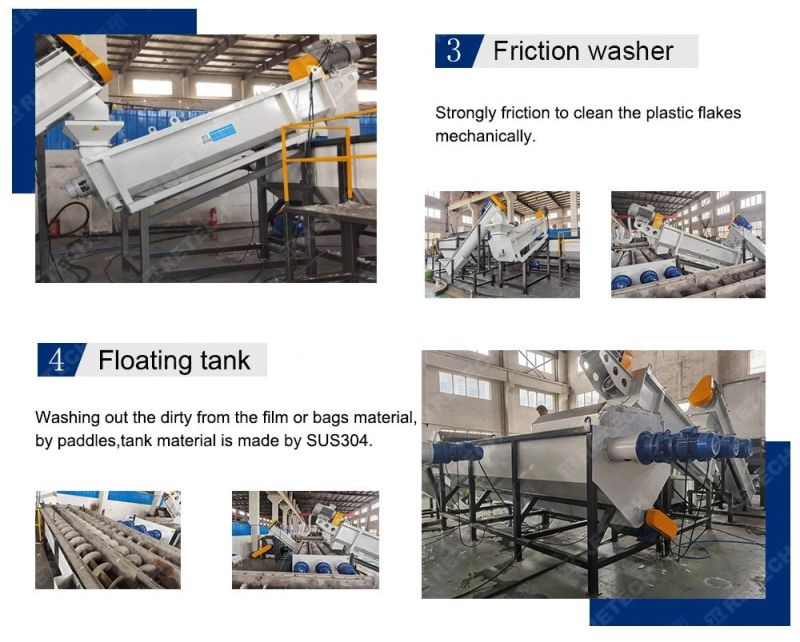

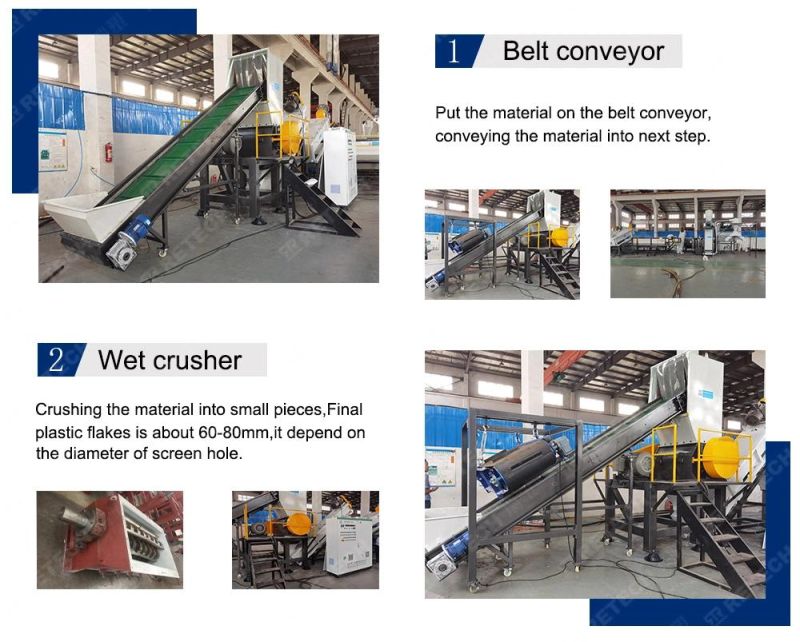

5.PP PE Washing Machine Detail:
6.PP PE Washing Machine new design for floating tank:

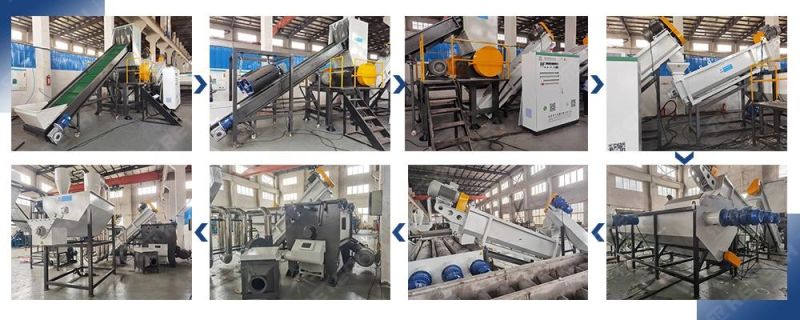

7.PP PE Washing Machine Simple Picture Diagram:
8.PP PE Washing Machine Workshop:

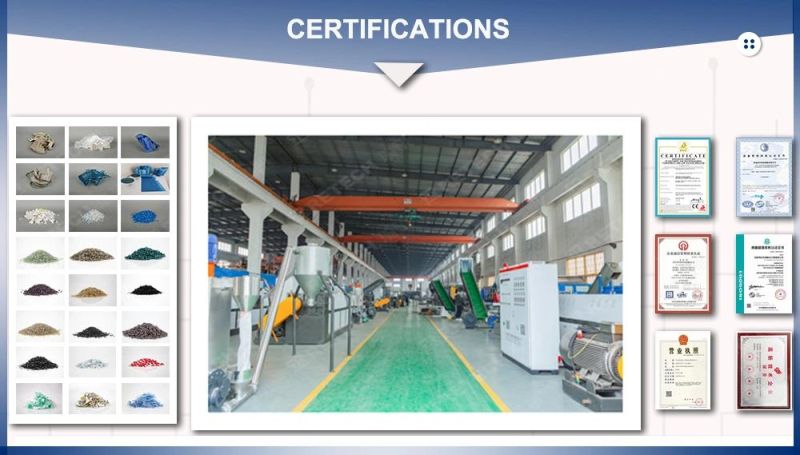

9.PP PE Washing Machine Company Profile:

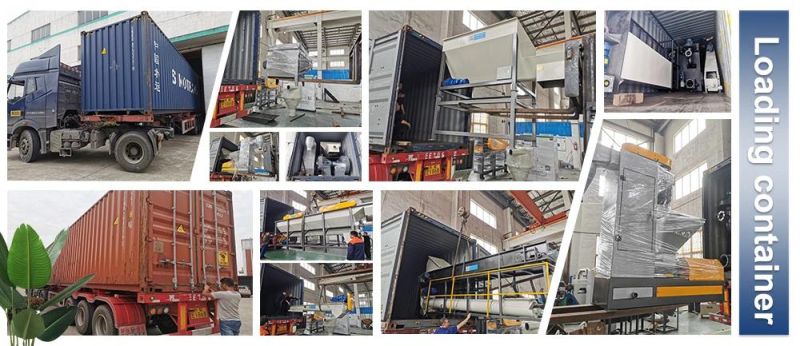

10.PP PE Washing Machine Packaging Shipping:
11.PP PE Washing Machine Sales service:
1. After finish the production, we will report the production line, take photos, videos and send them to customers via mail or instant tools.
2. After the commissioning, we will package the equipment by standard export package for shipment.
3. According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
