• Model NO.：GF160
• Engagement System：Full Intermeshing
• Screw Channel Structure：Non Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Electrical Parts：Siemens, ABB, Schneider
• Motors：Siemens
• Speed Control：by Inverter
• Inverter：ABB
• Guarantee Period：1 Year
• Manufacturing Time：40 Days
• Delivery：by Shipment
• Pack：Film and Wooden Box
• Extruder Control：by PLC Touch Screen
• Machine Color：Customized
• Transport Package：Plastic Film,Wooden Box
• Specification：automatic
• Trademark：Yusheng
• Origin：China
• HS Code：8477209000
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. GF160 Engagement System Full Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Electrical Parts Siemens, ABB, Schneider Motors Siemens Speed Control by Inverter Inverter ABB Guarantee Period 1 Year Manufacturing Time 40 Days Delivery by Shipment Pack Film and Wooden Box Extruder Control by PLC Touch Screen Machine Color Customized Transport Package Plastic Film/Wooden Box Specification automatic Trademark Yusheng Origin China HS Code 8477209000 Production Capacity 10 Sets Per Month

Product Description

PVC pipe extrusion line/production line

Application:
Applied for manufacture of caliber PVC, UPVC supply and drain pipes.

Performance &Advantages:

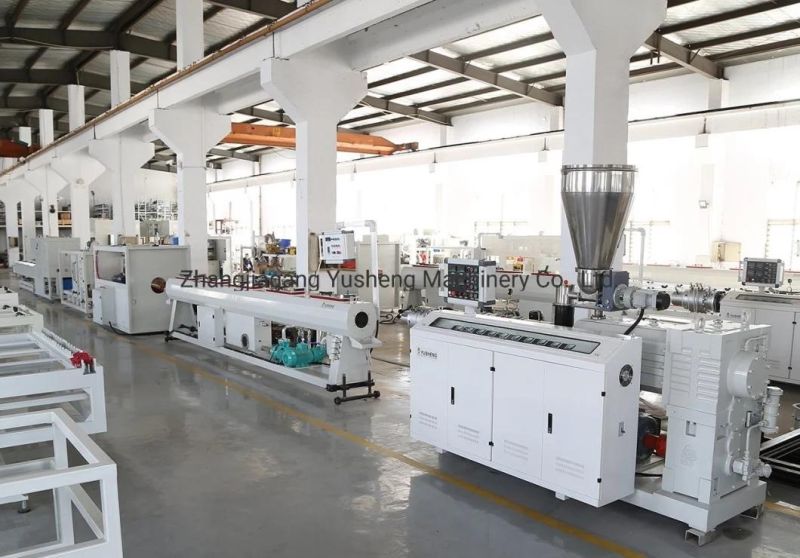

GF series plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction. This line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc. The extruder and the haul-off adopt the quality AC frequency conversion control device. The vacuum pump and motor adopt the famous brand. The haul-off have two-claw, three-claw, four-claw, six-claw. It may choose the saw blade cutting type or the planet cutting production efficiency. Our company may equipped the special device for the manufacture of the inner wall spiral coil and core layer blister according to the client's requirement.

Item	GF63	GF110	GF160	GF250	GF400	GF630	GF800
Diameter of pipe material (mm)	Diameter 16-63	Diameter 16-110	Diameter 32-160	Diameter 63-250	Diameter 160-400	Diameter 315-630	Diameter 450-800
Claw number of drawing machine	2	2	2	3	4	6	8
Pulling force(KN)	6	8	11	20	30	40	50
Drawing speed (m/s)	15	12	8	9	4	2	2
Tatal power of auxiliary machine(kw)	14	14	14	21.5	41	56	64
