Plastic Cup Making Machine for PP, PS, Pet, PE

Ruian Hoin Machinery Co., Ltd.
  • Warranty：365 Days
  • Certification：CE
  • Column number：Four Column
  • Molding Method：Pressing
  • Automatic Grade：Automatic
  • Transport Package：Film Wrap

Base Info

  • Model NO.：HY-PC750
  • Specification：4500*1600*2500mm
  • Trademark：HOIN
  • Origin：China
  • HS Code：8477409000
  • Production Capacity：20sets,Month

Description

Basic Info.

Model NO. HY-PC750 Specification 4500*1600*2500mm Trademark HOIN Origin China HS Code 8477409000 Production Capacity 20sets/Month

Product Description

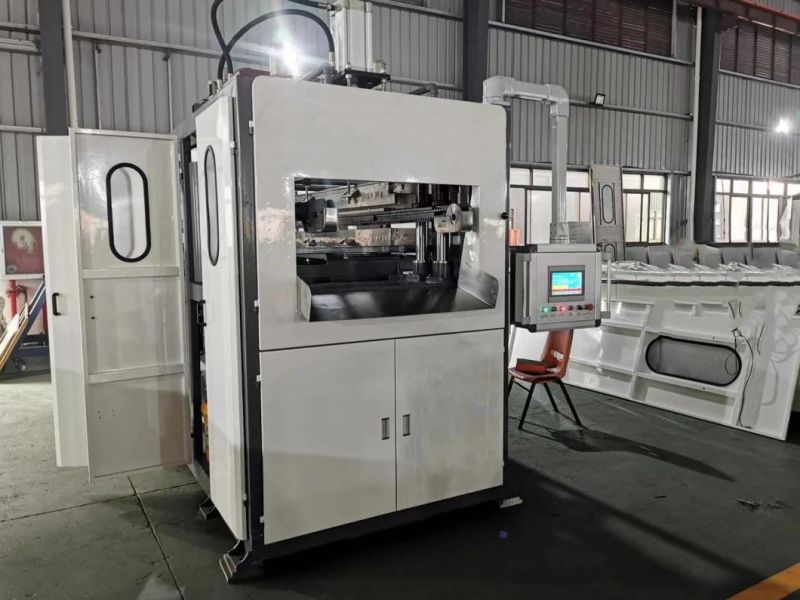

Automatic plastic cup making machine for producing different kinds of plastic cup/bowl/container,like drinking cups,ice cream cups, jelly cups, coffee cups,take-away container,meal box,soup bowl etc.
Plastic Cup Making Machine for PP, PS, Pet, PE
Main Technical Parameter
Sheet Material PP/PS/PE/HIPS/PET/PVC(Hard Sheet )
Sheet Thickness0.3-2.0mm
Sheet Width500-720mm
Max Install Area750×350mm
Max Shaping Depth170mm(can be adjust)
Max Forming Depth130mm(can be adjus)
Productivity10-35strokes/min
Heating Rated PowerAbout 50kw
Total Power100Kw
Main Motor Power11kw
Power Supply380V/50Hz(three phase four wire)
Forming Pressure0.6-0.8Mpa
Water Volume Required40~45L/min
Machine WeightAbout 6T
Overall Dimension 4.5m*1.8m*2.4m
