• Model NO.：cnmc-500
• Output：14kg,Min (30 Lb,Min)
• Clean Mode：Self-Clean by Air
• Transport Package：Wooden Case or as Customer′s Requeaet
• Specification：1400mm*990mm*60mm
• Trademark：CNMC
• Origin：Shandong, China
• HS Code：8477800000
• Production Capacity：300 Sets,Month

ItemCNMC-500 Hydraulic polyurea spray machine

Standard

configuration

Proportion Fixed Mainframe: 1 setSelf-cleaning spray gun: 1 setFeeding pump: 2 setsHeating hose: 49.2 feet (15m)Connecting hose from feeding pump to machine: 10 feet(3m)Connecting hose from heating hose to gun: 5 feet(1.5m)Rings and ToolsTechnical DataThe ratio of raw material: 1:1(Fixed)The viscosity range of raw material: 200-1000CPS (Under the operate temperature)Max Working pressure: 25 MPa (200 bar)Max fluid temperature: 88°C (190°F)Max Output: 14kg/min (30 lb/min)Heating hose power: 2000W*2Max hose length: 94m (308 feet)Whole power: 17KWVoltage: 380V/400V 3 phaseOperate temperature: 0°C-70°CClean mode: Self-clean by airMax heating hose length: 308 feet (94m)Working fluid pressure: 6-8MpaMachine size: 1400mm*990mm*60mmGross weight: 240KG

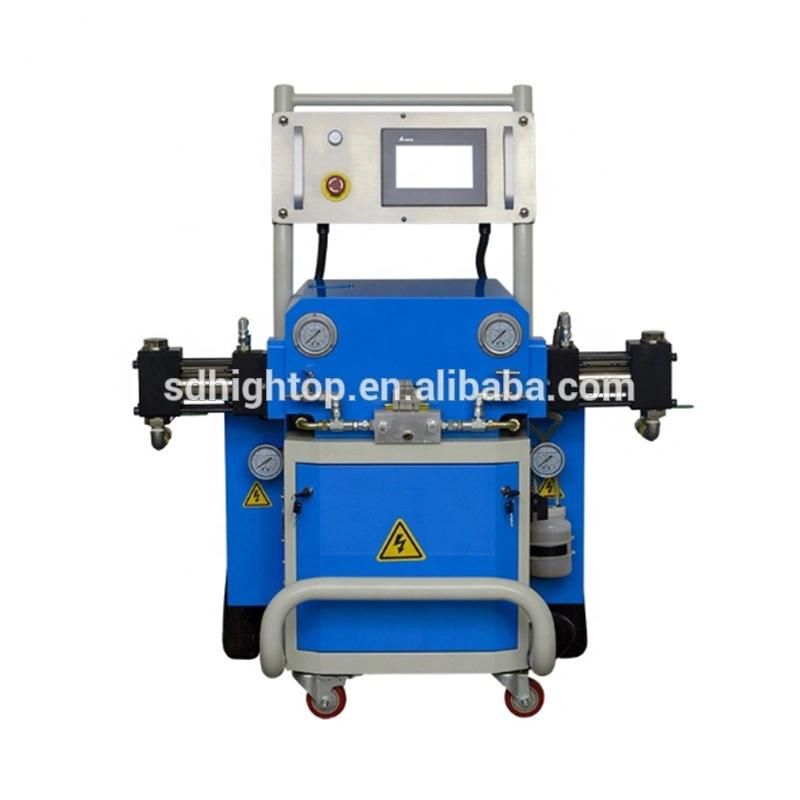

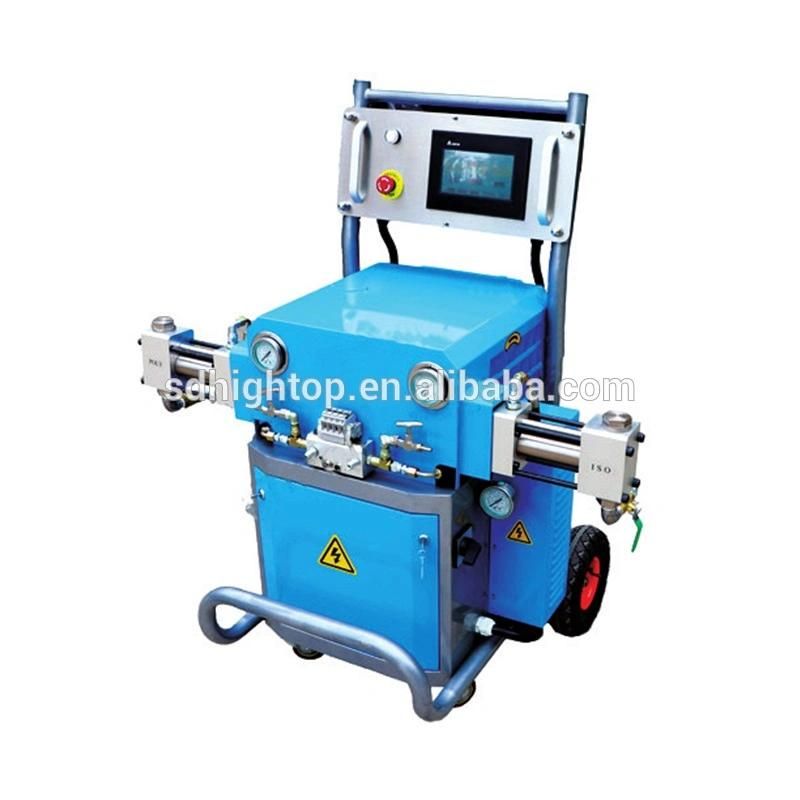

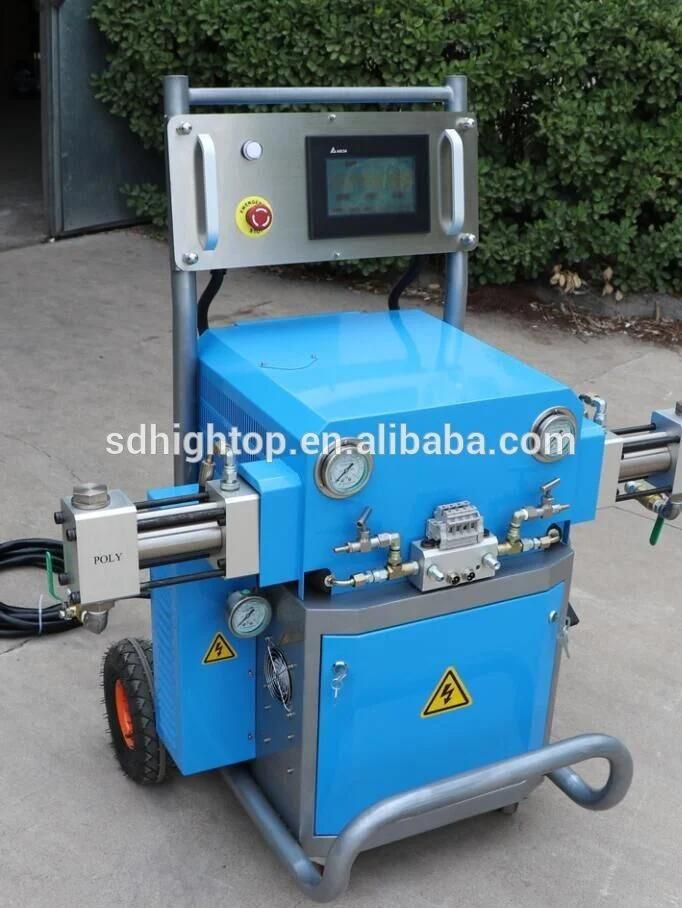

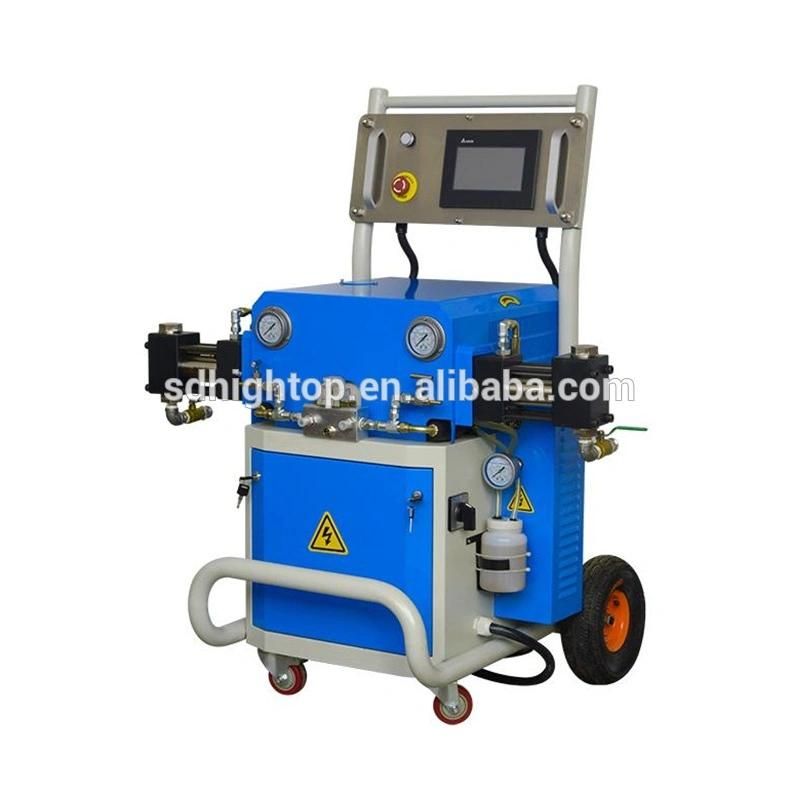

Images of hydraulic polyurea foam spray machine
