160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High ...

Dongguan Jieyang Machinery Co., Ltd.
  • Type：Tube Head Injection
  • Structure：Vertical
  • Plastic Type：Thermoplastic
  • Plasticizing Way：Screw Type
  • Clamping Way：Hydraulic
  • Automation：Automatic

Base Info

  • Model NO.：JY-1600ST-R
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008
  • Transport Package：Wooden Case
  • Specification：1.65*1.9*2.7m
  • Trademark：JieYang
  • Origin：China
  • HS Code：8477209000
  • Production Capacity：200 Sets,Month

Description

JY-1600ST-RScrew Barrel Diametermm485255Injection Pressurekg/cm2149513701295Max. Shot Weightgram285363420Max. Shot Weightcm3/sec295389446Screw Barrel Routemm210Screw Barrel Rotary Speedrpm0-210Nozzle Contact Forcetons8.5Nozzle Retraction Nozzlemm220Number of Temperature Controlpcs5Clamping Forcetons160    Disk Staionpcs 2/3Disk Diametermm1400    Min. Mold Heightmm530/330Opening Strokemm300    Max. Opening Mold Distancemm890/690Ejetor Forcetons2 4/9Ejetor Stokemm170    Max. Hydraulic Pressurekg/cm2140Pump OutputL/min63Oil Resservoir CapacityLiter230Cooling Water ConsumptionL/hr1200-1400Pump Motor Powerkw/hp16/23Barrel Heating Powerkw7Total Powerkw24Machine Weighttons7.6Machine Dimension(LxWxH)meter3*1.92*2.8Shipping Weighttons8.4Shipping Measurements(LxWxH)meter3.2*2.15*3.0

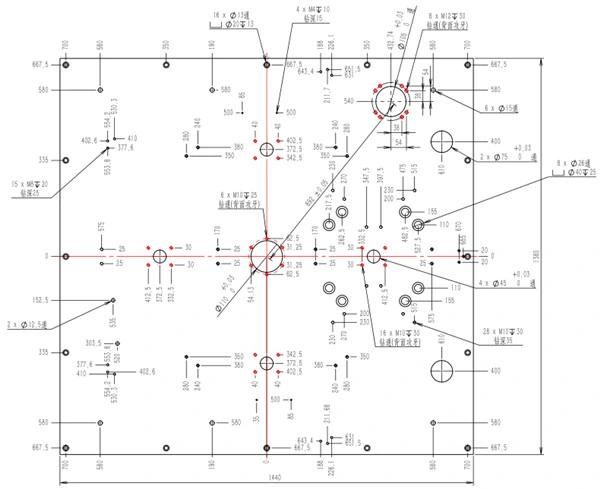

Product Drawing

160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed
Product Features

1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.

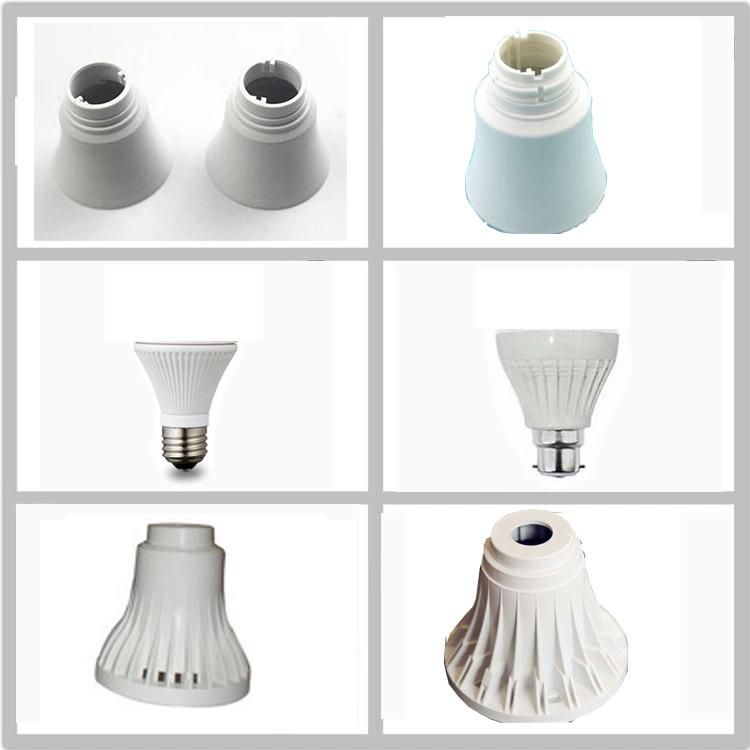

Injection Machine Can Make

160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed

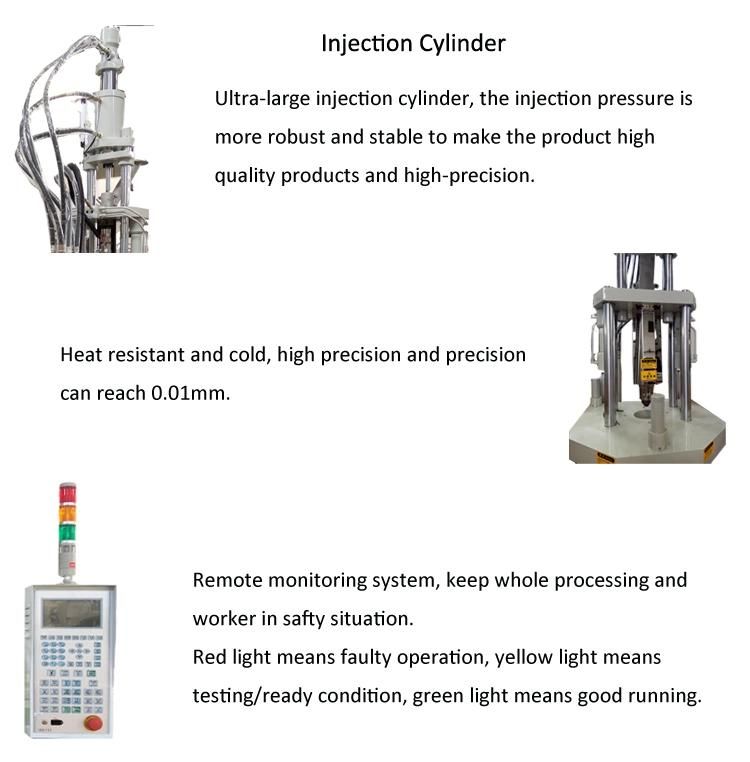

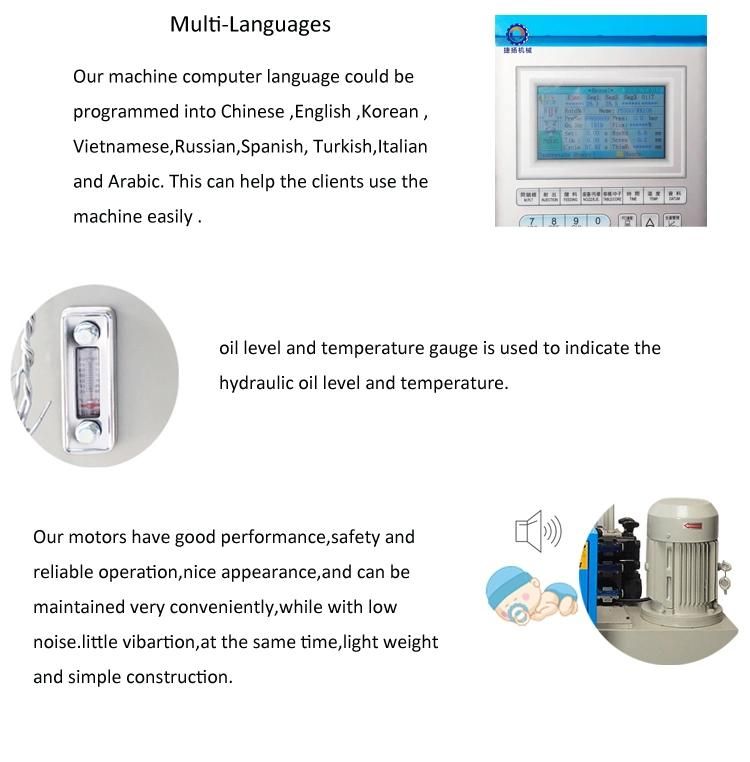

Advantage
160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed
160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed
Packaging&Shipping
160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed
160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed

Certification
160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed

160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed


Our Service:

160 Ton 3 Station Rotary Table LED Housing Plastic Injection Moulding Machine with High Speed

1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.

2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.

3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.

4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.

5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.



Please contact us,we will provide a professional production plan for you.
