Fd30 Automatic One Step Injection Stretch Blow Molding Machine for Small PP PE Plastic ...

ZHANGJIAGANG FENGDAKAILAI MACHINERY CO., LTD.
  • Type：Injection Blow Molding Machine
  • Raw Material：HDPE,LDPE,PP,PS
  • Making Method of Parison：Injection Blowing
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Making Bottles Range：2ml-2000ml
  • Suitable Material：HDPE,LDPE,PP,PS,EVA
  • Max.Height of Bottle：240mm
  • Max.Dia of Bottle：100mm
  • Transport Package：Sea Worthy Standard Packages
  • Specification：3200*1150*2200
  • Trademark：FD
  • Origin：Jiangsu China
  • HS Code：8477401000
  • Production Capacity：20sets,Month

Description

No.ItemUnitFD30FD50FD701Dia. of screwmm4045502Screw L/D ratio 2222223Max. theoretical injection capacitycm³1652543244clamping force of injection mouldkn3004506005clamping force of blowing mouldkn5570806pressure of hydraulic systemMpa1416167Max. pressure of compressing airMpa1118Wastage of cooling waterm³/min≥0.3≥0.5≥0.89Range of formability productml1.5-20001.5-20001.5-200010Height of formability productmm≤200≤200≤20011Dia of formability productmm≤100≤100≤10012Total powerkw24.7364813Overal size(L×W×H)mm3200×1150×22003750×1300×23004000×1450×235014Machine weightton466





»Machine Main Parts Brand

Key partsBrandServo motor / VDP(Optional)Techmation/YukenHydraulic motorIntermoteHydraulic valveYukenPneumatic valveFestoElectrical valveSchendier or OmronLiner scaleJEFFRAMControllerJinghua/Omron(optional)ContactorSchendierSealsDZApproach switchOmron

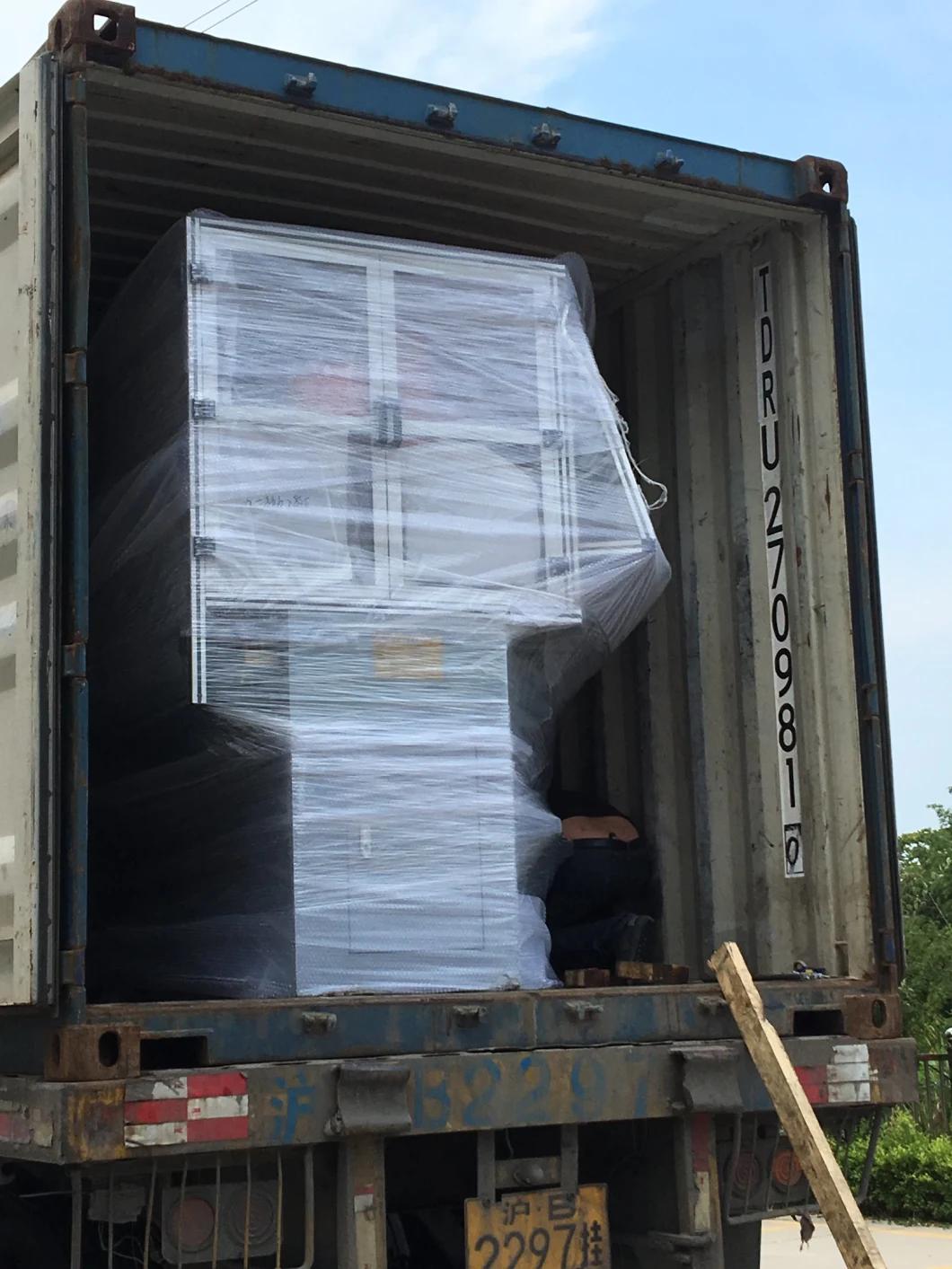

»Packaging & Shipping
