HDPE Insulation Pipe/ Tube Extrusion Machine Production Line
Qingdao Huashida Machinery Co., Ltd.- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：ISO9001:2008
- Customized：Customized
Base Info
- Model NO.：Dim 110mm-1886mm
- Condition：New
- Capacity：1000kg,H
- Production Speed：0.5-6m,Min
- Diameter of Pipe：110mm-1860mm
- Transport Package：Standard Package for Export
- Specification：Dim110mm-1860mm
- Trademark：Huashida
- Origin：Qingdao China
- HS Code：8477209000
- Production Capacity：100lines,Year
Description
Thickness can be settled by customer's requirement2 1372mm 17mm 3 1155mm 15mm 4 1054mm 14mm 5 960mm 14mm
Condition:
Material: HDPE
PE-960/1680
PE-960/1680 Pre-insulating Jacket Pipe Production line Configuration
Condition:
- In room
- No danger zone
- 85% no condensation
- Tempreture: 0-35ºC
- 3 phrase ,380V(-10%,+5%)50Hz
- supply: 3 phase 380V(-10%,+5%) 50HZ
- 560 kW
- About 1500KW
- ≤20ºC≥0.3Mpa 26~30 m3/h
- water recycling: ≤20ºC≥0.3Mpa 26~30 m3/h
- air 0.4m3/min >0.5MPa
Total length: About 45m
Material: HDPE
PE-960/1680
PE-960/1680 Pre-insulating Jacket Pipe Production line Configuration

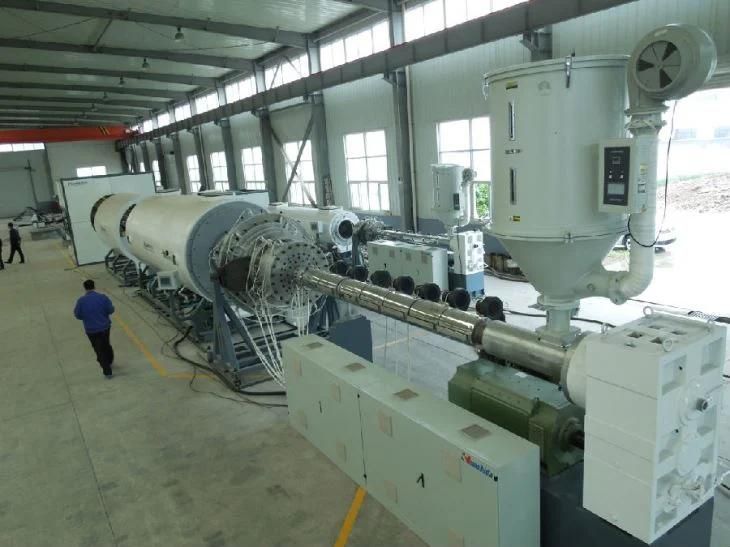

No. | Equipment | Nos |
| 1 | Automatic feeding dryer | 1 set |
| 2 | SJ-150/33 single screw high efficiency extruder | 1 set |
| 3 | Die head and extruder connector | 1 set |
| 4 | Mould 960mm, 1054mm,1155mm,1370mm,1680mm | 1 set |
| 5 | 1680mm die head adjust device | 1 set |

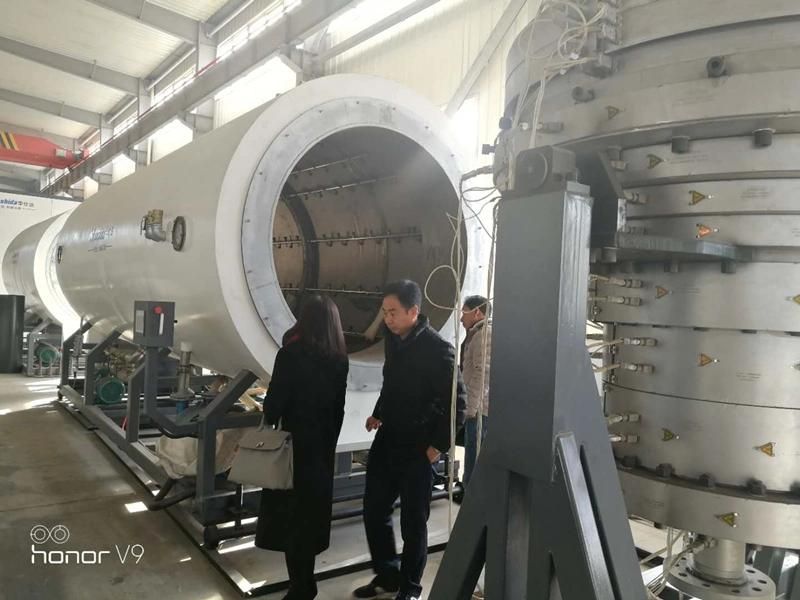

| 6 | 1680 vacuum calibrating tank | 1 set |
| 7 | 1680 cooling tank | 1 set |
| 8 | 12 caterpillars hauling off machine | 1 set |
| 9 | 1680 planet cutting machine | 1 set |
| 10 | PLC computer centralized control system(SIEMENS) | 1 set |
| 11 | Pipe bracket | 1 set |
