Servo Motor Made in China Water Bottle Blow Moulding Machine
Zhangjiagang Dawson Machine Co., Ltd.- Type：Extrusion Blow Molding Machine
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：ABLB90II
- Application：Bottles, Jars, Jerry Cans, Gallons, Containers
- Station：Single Station
- Die Head：Single Head
- Max. Product Volume：20L
- Auto-Deflashing：with Auto-Deflashing
- Clamping System：Toggle Type Clamping System
- Mould：One Cavity
- Suitable Material：HDPE,PP,PVC,PS,PETG,LDPE
- Sutiable：10~20L Bottle
- Made in：China
- Weight：5.3t
- Output Capacity：100~110 PCS,H
- Plasticization：130kg,H
- Heating Zone：4 Aluminum Heater
- Heating Power：8kw,H
- Transport Package：Film Packing
- Specification：ABLB90I
- Trademark：DAWSON
- Origin：Jiangsu Zhangjiagang
- HS Code：8477301000
- Production Capacity：100~110 PCS,H
Description

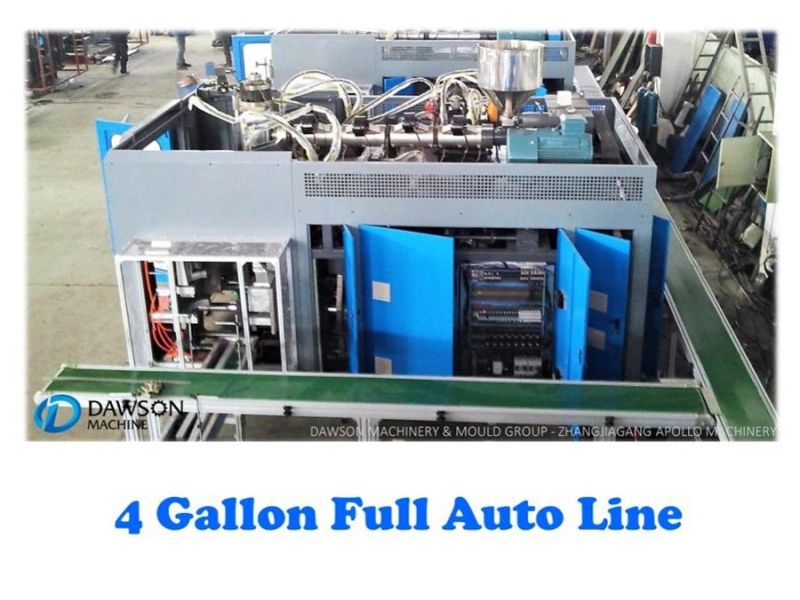

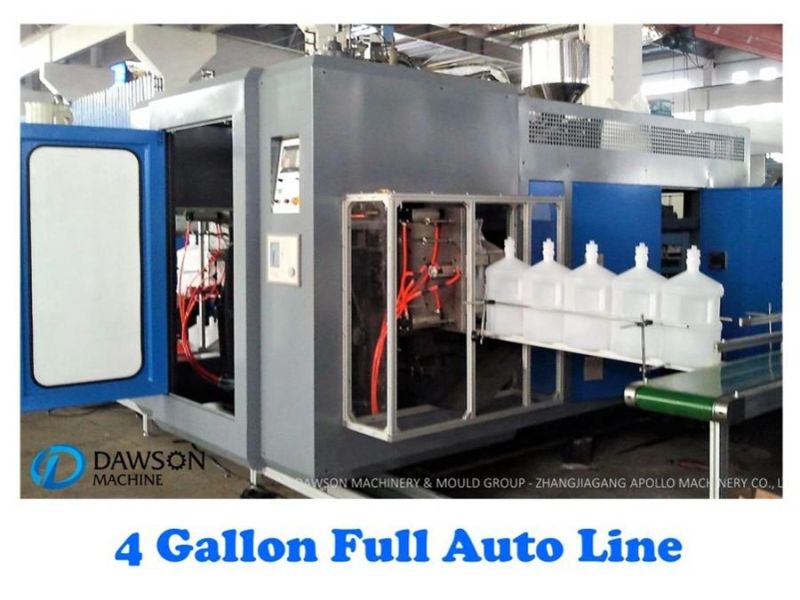

This type of blow molding machine ABLB90 can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L. The machine is especially designed for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.
Double station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.All jerry cans, gallons, containers, bottles below 20L no problem
The main components of the machine. ( ABLB90 )
| electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | TAIWAN JINSHUN |
| Oil pump and connection | TAIWAN JINSHUN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | FESTO |
| Max. Product volume | 18 liters |
| Out put capacity | 110~140pc/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 37KW |
| Screw heating capacity | 18 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 130KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 110KN |
| Max.size of mold | 240-660mm |
| Mold stroke | 530 X 550mm |
| Max.die diameter | 180mm |
| Blowing pressure | 0.8 mpa |
| Air Volume | 1M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 90 L/MIN |
| Size of Machine | 4.2x3x3.2m |
| Weight of machine | 11ton |
