• Model NO.：IBM65D
• Screw Diameter：50mm
• Clamping Force of Injection：650 Kn
• Clamping Force of Blowing：89 Kn
• Oil Pump and Hydraulic Valve：Yuken Brand Ex Japan
• Pneumatic Valve Connector：Festo Ex Germany
• Oil Seal：Valqua Brand Ex Japan
• Controlling System：Act Technologies
• Electronic Rulers：Italy Gefran
• Molded Case Circuit Breaker, Contactor,：Scheider Brand Ex France.
• Dimension：4*1.28*2.35
• Heating Capacity：10kw
• Opening Stroke of Mold Platen：140mm
• Heating Capacity of Mould：5.0kw

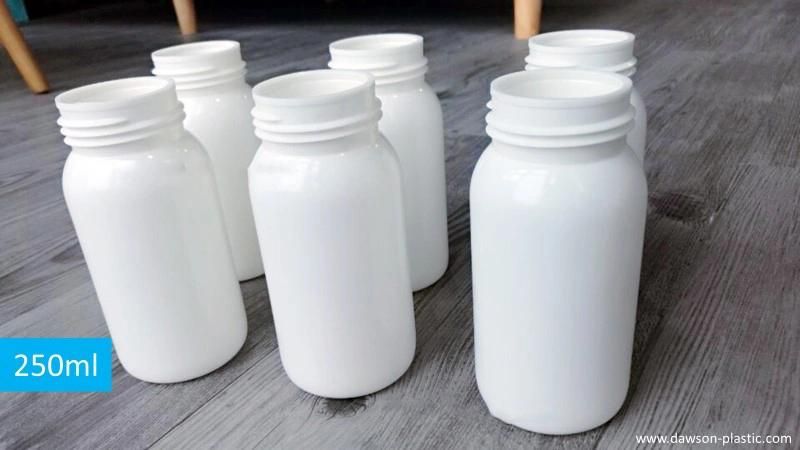

• Suitable Bottle Range：5-800ml
• Motor Power：17kw
• Transport Package：Film Packing
• Specification：IBM65D
• Trademark：DAWSON
• Origin：Jiangsu Zhangjiagang
• HS Code：8477301000
• Production Capacity：as Per Samples

Item    Unit       DataInjection systemScrew Diametermm50Max. Theoretical injection capacityG314Heating capacityKW10No. of heating areaQty3Clamping & blowing systemClamping force of injectionkn650Clamping force of blowingkn89Opening stroke of mold platenmm140Max. Platen size (L×W)mm740×390Min. Mold thickness (H)mm280Heating capacity of mouldKW5.0Product dimension rangeSuitable bottle rangeml5-800Max. bottle heightmm≤200Max. Dia. of  bottlemm≤80Hydraulic driving systemMotor powerKW17hydraulic pressureMpa14Pneumatic systemMin. Air pressureMpa1.0Discharge rate of compressed airM3/mm≥0.8Cooling systemWater flowageM3/h4 Total rated power with mold heatingKW45Machine informationDimensionM4×1.28×2.35machine weightTon7.5
Feature

* Excellent plasticizing unit



  * Bridge clamping unit for synchronism mould open/close, cycle time less



* Servo system can save 35 to 40% energy compared to normal system



  * Servo rotary, precise, long using time, easy maintenance, save energy.



  * Optional injection with all-electric way, replacing hydraulic way * CE certificate

Configuration of Injection Blow Molding Machine


* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves):   YUKEN brand Ex JAPAN.


* Pneumatic valve connector:   FESTO Ex Germany.


* Oil seal:   VALQUA brand Ex JAPAN.


* Controlling system:   Act Technologies


* Electronic Rulers:   Italy GEFRAN


* Molded case circuit breaker, contactor, Thermal overload relay:   SCHEIDER brand Ex FRANCE.
