• Model NO.：BEK-BM30,50,100 blow molding machine
• Material：PE
• Model：Bek-Bm30,50,100
• Die Head：Accumulating Type Die Head
• Coextrusion：View Strip Line
• Layer：Single Layer,Multi Layer
• Auxiliray Machine：Leak Testing Online
• Auxiliray Machine.：Auto Deflashing on Line
• Screw Diameter：80,90,100
• Max Output：190kgs
• Transport Package：Best Sea Transportion Package to Avoid Damagement
• Specification：15-30L
• Trademark：Bekwell & Jwell
• Origin：Foshan & Suzhou
• HS Code：84774010
• Production Capacity：1000set,Sets Per Year

Basic Info.

Model NO. BEK-BM30/50/100 blow molding machine Material PE Model Bek-Bm30/50/100 Die Head Accumulating Type Die Head Coextrusion View Strip Line Layer Single Layer/Multi Layer Auxiliray Machine Leak Testing Online Auxiliray Machine. Auto Deflashing on Line Screw Diameter 80/90/100 Max Output 190kgs Transport Package Best Sea Transportion Package to Avoid Damagement Specification 15-30L Trademark Bekwell & Jwell Origin Foshan & Suzhou HS Code 84774010 Production Capacity 1000set/Sets Per Year

Product Description

Description of equipment:

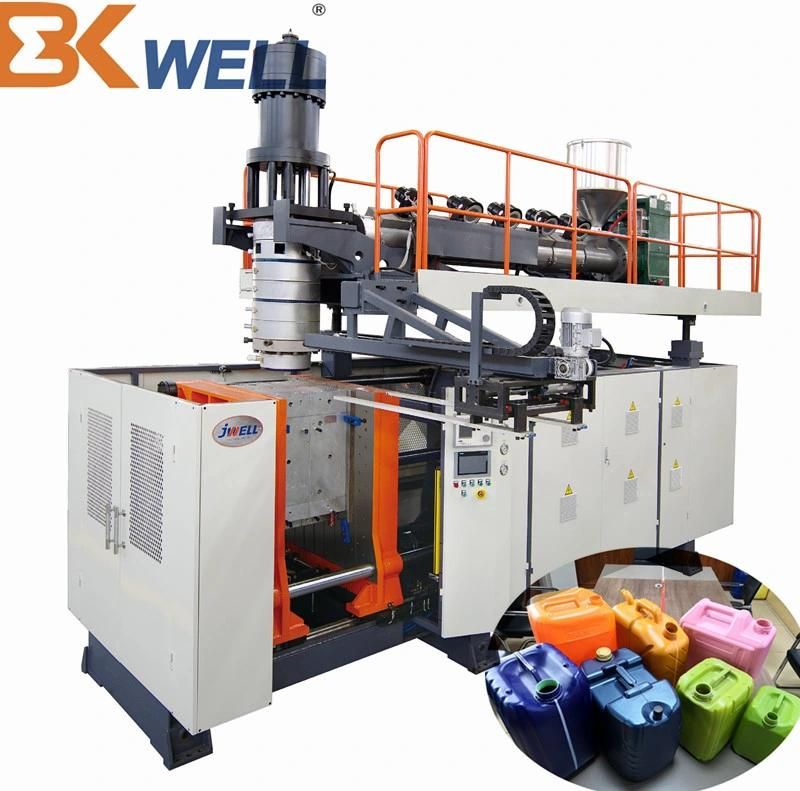

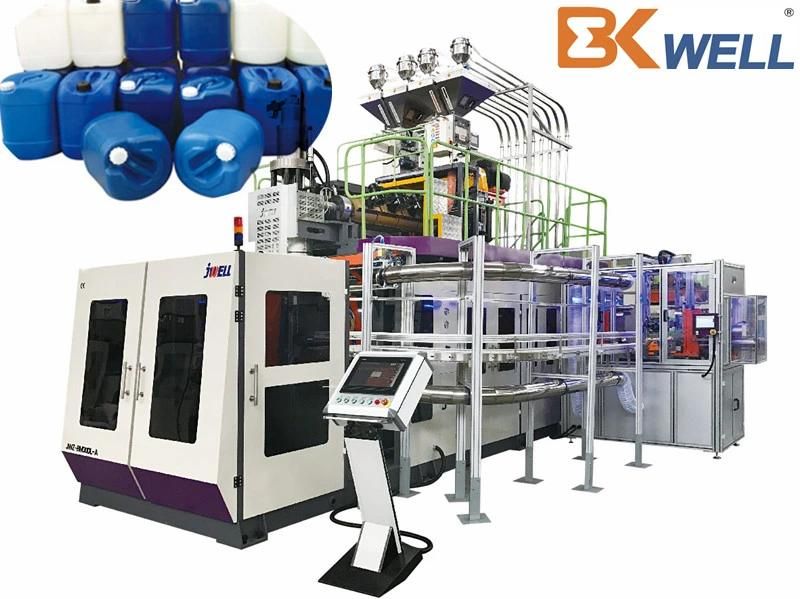

BEKWELL PLASTIC JERRY CAN MAKING BLOW MOLDING MACHINE BLOWING MACHINE (We can offer complete solutions:Mould with auto deflashing,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Product Overview:


Performance&Advantages
·Suitable for producing 15-30L different size Chemical packaing jerrycan.
·Adopt continuous type die head, up-blowing structure, convenient for
product auto-deflashing on-line, scrap conveying on line, finished
product leak testing on line, conveying,packing, etc.,reducing the
working cost and increasing the production ratio.
·Adopt toggle type platen structure, have the advatages
of uniform-clamping, big clamp force, assembling large
mould, easier dismounting& assembling the mould.
·Optional double layer co-extrusion system.
·Optional view strip line system.
·Optional hydraulic servo control system.
Technical parameters of machine

Model	Unit	BM30
Max product volume	L	30
Dry cycle	PC/h	450*2
Die head structure	type	Continuous
Main screw diameter	Mm	100
Max plasticizing capacity (PE)	Kg/h	190
Driving motor	Kw	55
Oil pump motor power	Kw	18.5
Clamping force	Kn	300
Space between platen	Mm	340-860
Platen size W*H	Mm	580*600
Max. mold size	Mm	500*600
Platen moving stroke	Mm	800
Heating power of die head	Kw	20
Machine dimension L*W*H	M	5.6*4.8*4.5
Machine weight	T	18
Total power	Kw	125

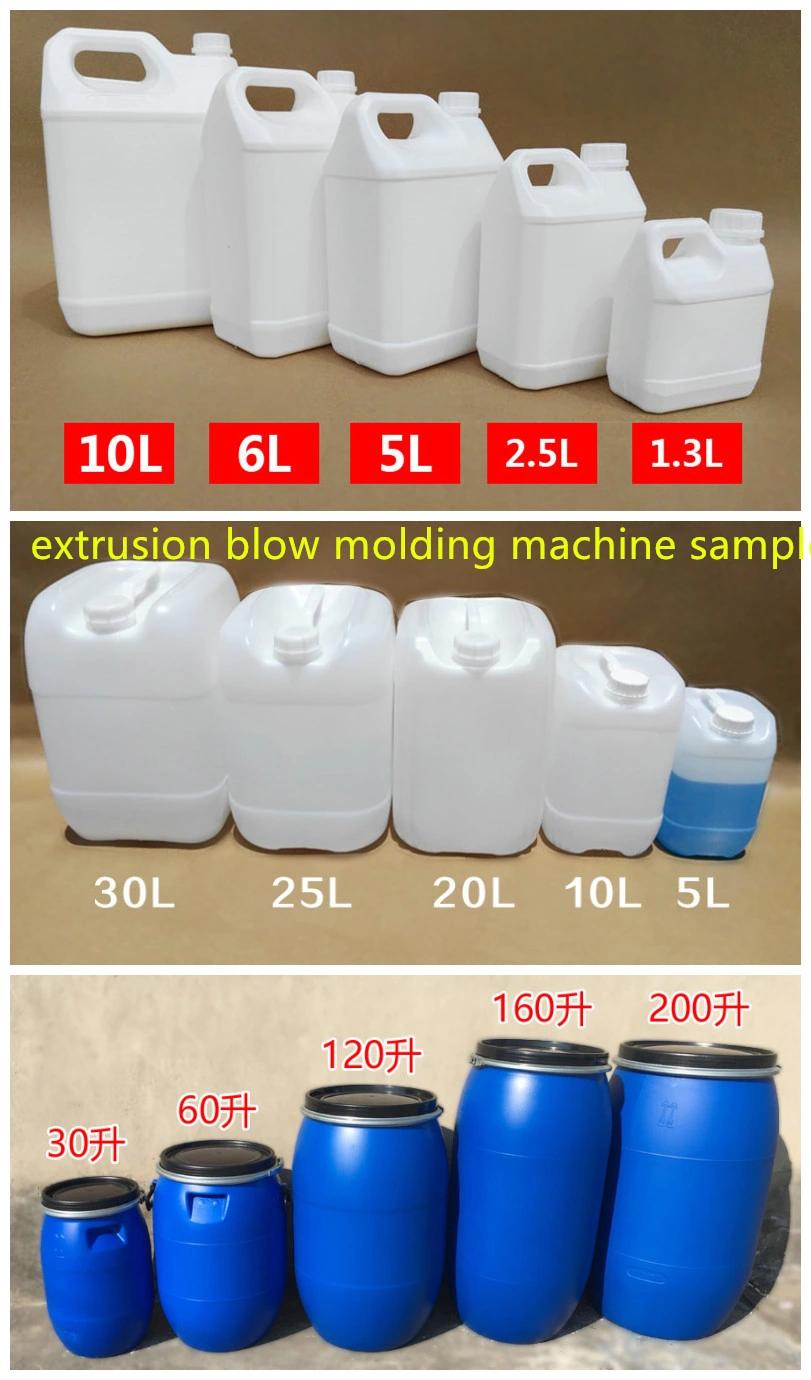

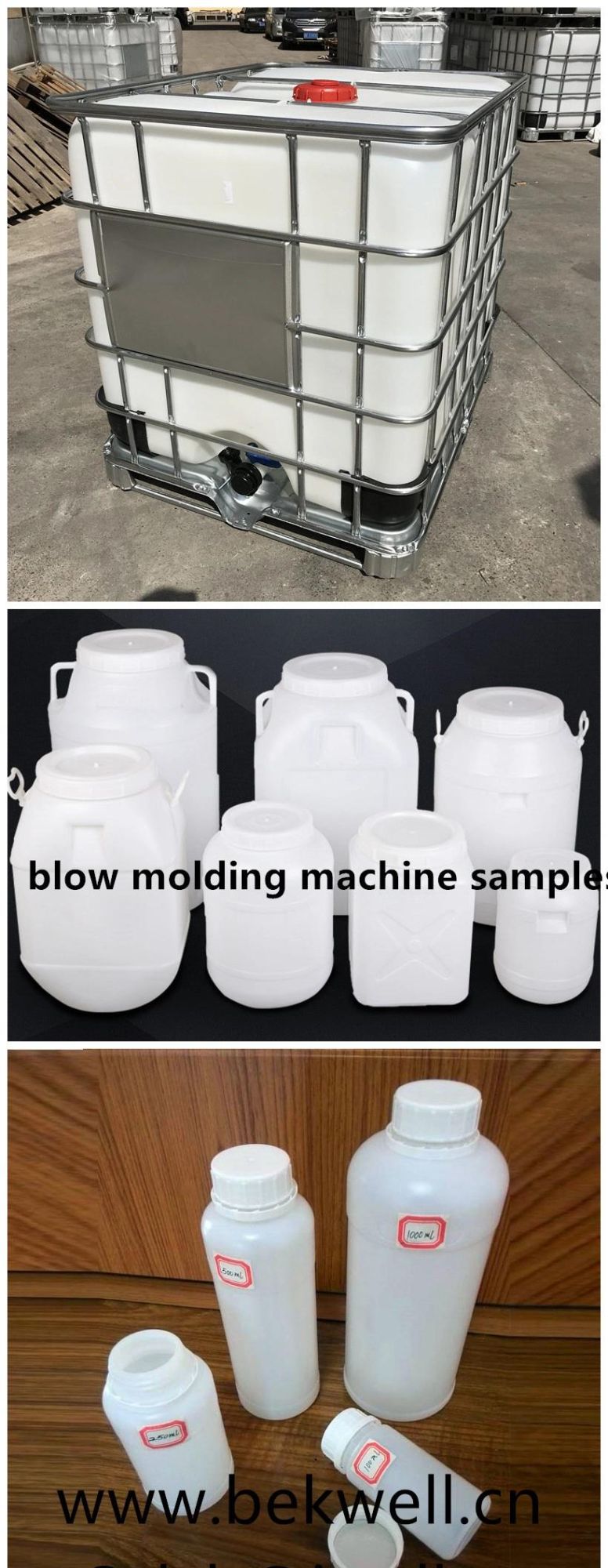

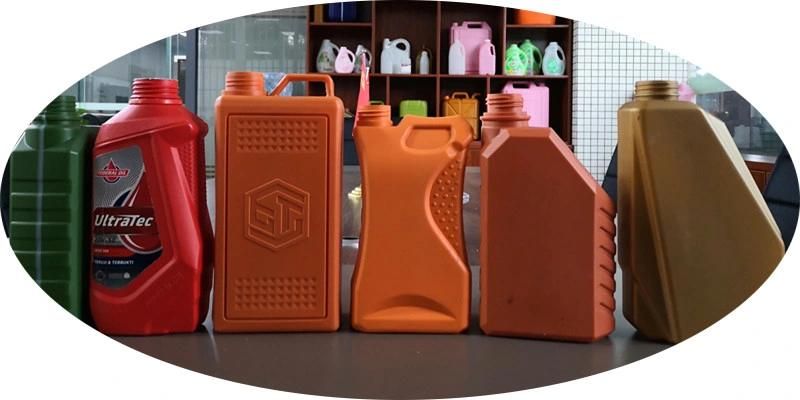

Blow moulding machine/extrusion blow molding machine samples:

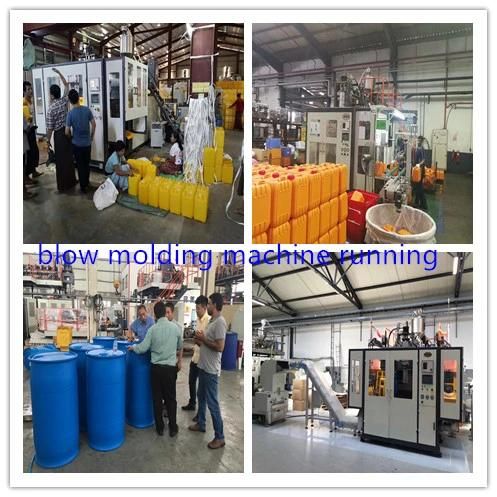

Extrusion Blow molding machine running in our customer workshop

Different kind of Control system of machine

Different kind of Control system of machine

parts name	country	Brand
PLC and touch screen	Germany/Austria	SIEMENS/B&R
Contactor	France	Schneider
Inverter	China/Germany	JWELL/Rexroth
Parison control system	Japan/Austria	MOOG100/B&R 300
Pneumatic valve	China	Air TAC
Hydraulic Control System	China	Famous brand
hydraulic valve	China	Taiwai Yuken
Take out robot	China	JWELL
Accumulate type Die head	China	JWELL
Driving motor	Germany	SIEMENS-Beide MADE IN CHINA
Gearbox	China	Famous brand
Screw and Barrel	China

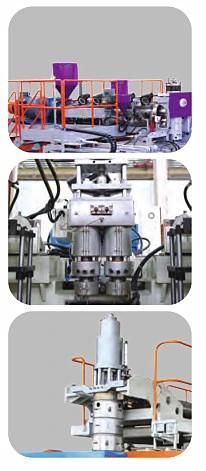

Extrution & Die head
No1.The extruder uses screw and barrel, which is a famous brand JINHAILUO  all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer cotinuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.Blowpin system
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy

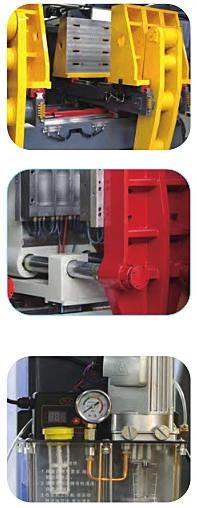

Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
  Electric system
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
