• Customized：Customized
• Certification：CE, ISO9001:2008
• Condition：New
• Cutting Method：Hot Cutting
• Extruder：Conical Twin Screw Extruder
• Screw and Barrel：38CrMoAl
• Heater：Aluminum Casting
• Gearbox：Deling Brand
• Cutting Blades：3 PCS
• Air Silo：Stainless Steel Making
• Temperature Controller：Omron
• Contactor：Delixi
• Motor Brand：Xi′an Xima
• Transport Package：Wooden Pallet & PE Film
• Specification：HC-80
• Trademark：chenxing
• Origin：Jiangsu, China
• HS Code：8477800000
• Production Capacity：500sets,Year

Basic Info.

Customized Customized Certification CE, ISO9001:2008 Condition New Cutting Method Hot Cutting Extruder Conical Twin Screw Extruder Screw and Barrel 38CrMoAl Heater Aluminum Casting Gearbox Deling Brand Cutting Blades 3 PCS Air Silo Stainless Steel Making Temperature Controller Omron Contactor Delixi Motor Brand Xi′an Xima Transport Package Wooden Pallet & PE Film Specification HC-80 Trademark chenxing Origin Jiangsu, China HS Code 8477800000 Production Capacity 500sets/Year

Product Description

This hard PVC/CPVC hot-cutting pelletizing line consists of  SJSZ series conical twin-screw extruder and corresponding pelletizing auxiliary machines.

Process flow:

Mixer→Spring loader→Conical twin-screw extruder→Mould & Cutter→Air-conveying system→Silo

Features:

-Saving power: the electrical part adopts advanced frequency conversion technology;

-High effiency: the fast net-changing device may help remove impurities from ganules quickly and effiently;

-Broad application: the conical twin-screw extruder is suitable for various hard PVC & CPVC recipes;

-Zero pollution: all parts of the granules contact are made of stainless steel.

Main technical parameters:

Extruder model	Screw diameter	Pellet size	Main motor power	Output
SJSZ55	55/110 mm	Φ3-Φ4 mm	22 kw	100-120 kg/h
SJSZ65	65/132 mm	Φ3-Φ4 mm	37 kw	220-260 kg/h
SJSZ80	80/156 mm	Φ3-Φ4 mm	55 kw	320-450 kg/h
SJSZ92	92/188 mm	Φ3-Φ4 mm	110 kw	650-800 kg/h

Reference pictures:

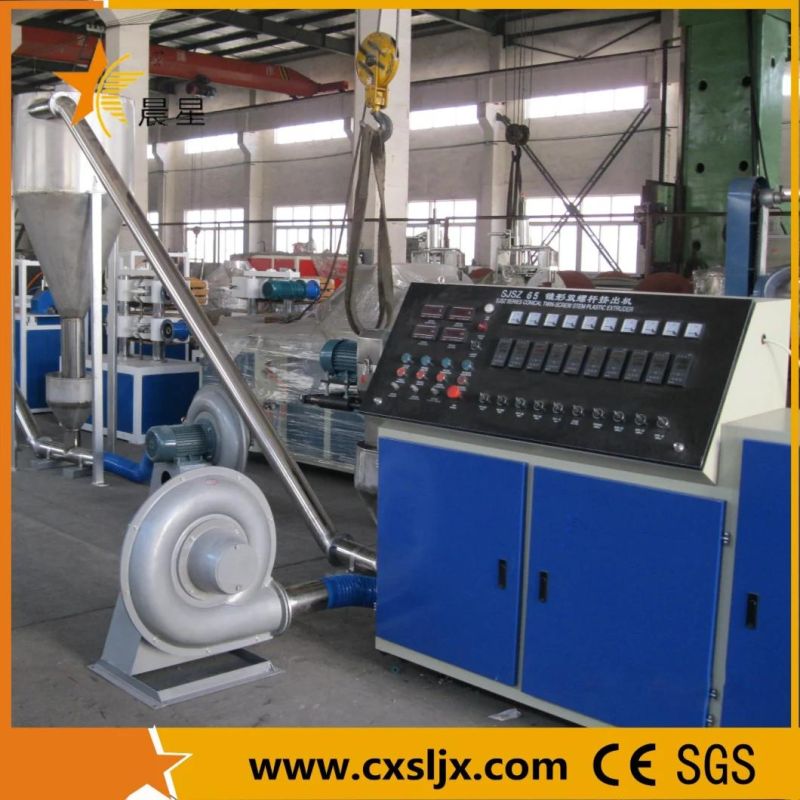

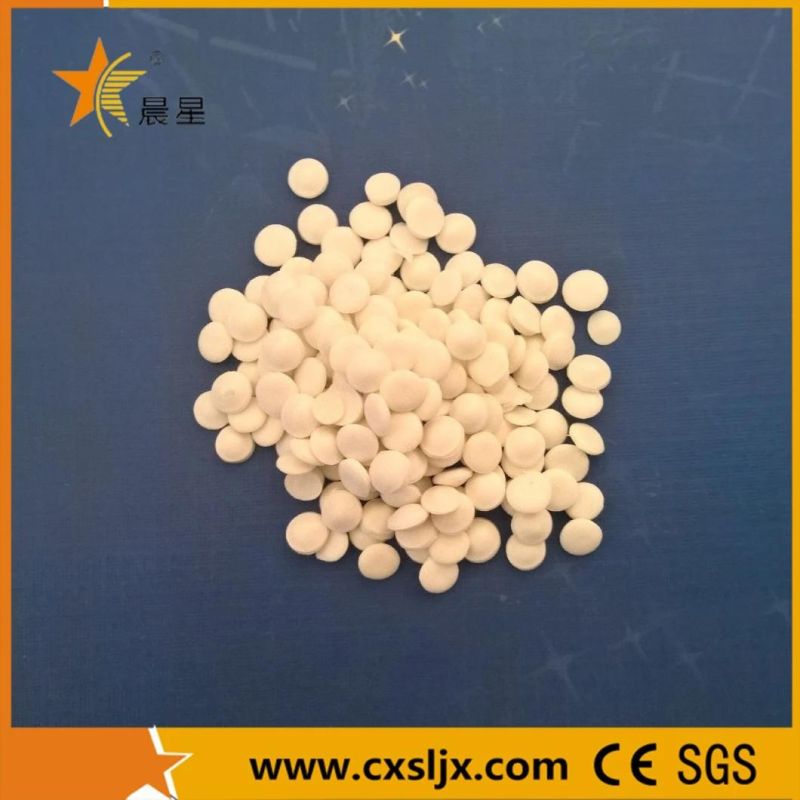

                Overview                                 Finished granules

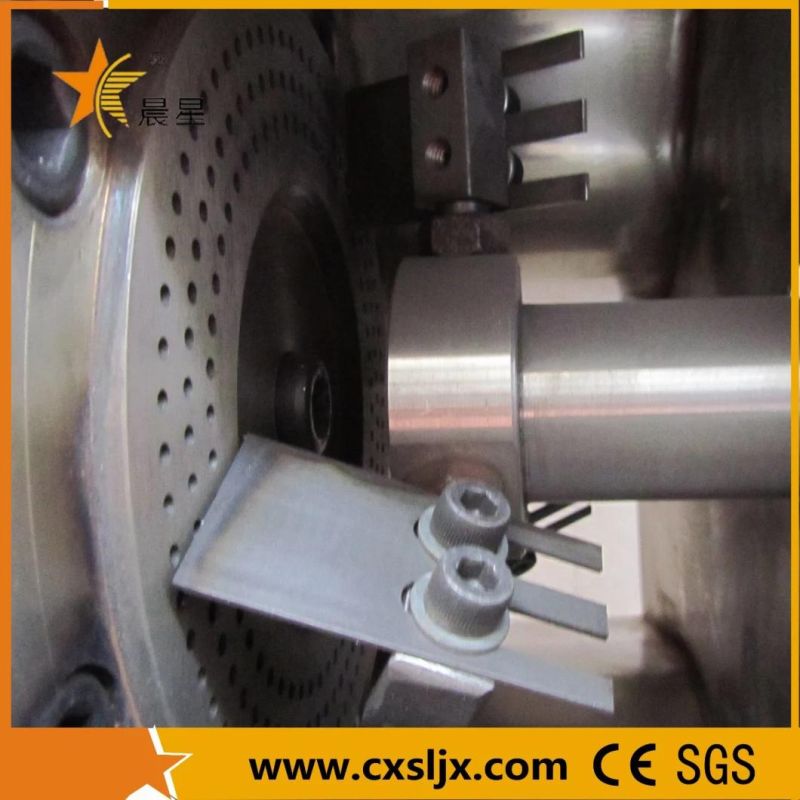

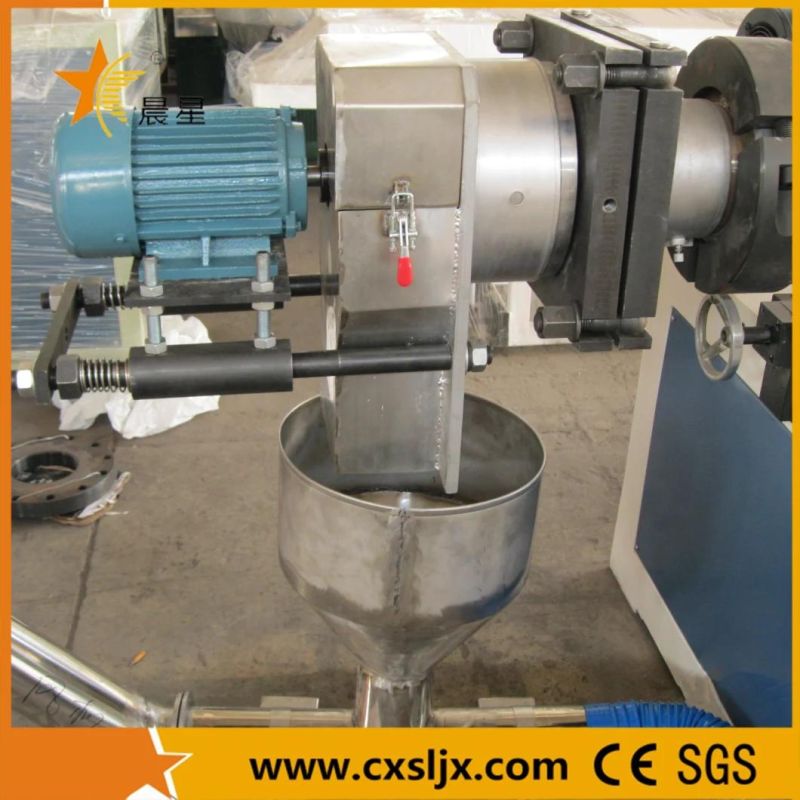

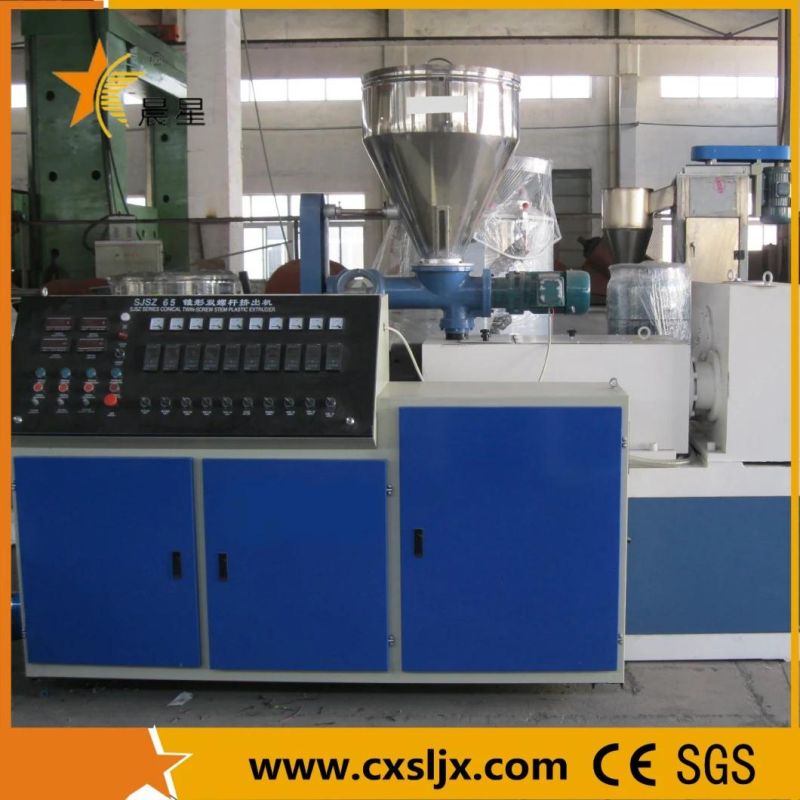

                 Extruder                                Mould & Cutter

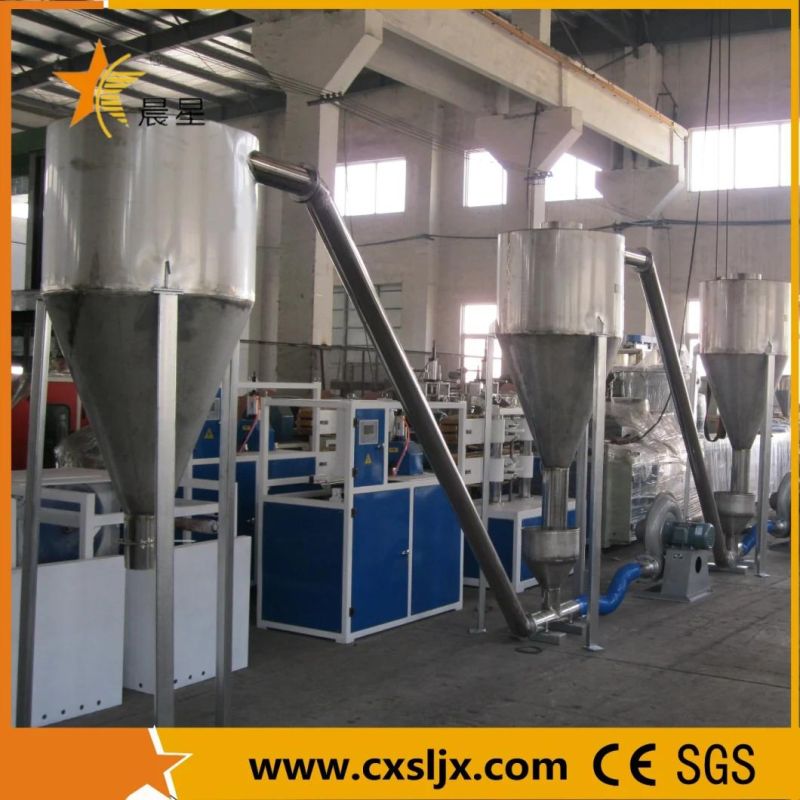

                         Air-conveying system & Silo


Production capacity:

200-300kg/h
500-600kg/h
900-1000kg/h
