960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine

Qingdao Huashida Machinery Co., Ltd.
  • Warranty：All Life
  • Product Type：PE Pipe
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, UL

Base Info

  • Model NO.：HSD960-1680
  • Customized：Customized
  • Condition：New
  • After-sales Service：6-12 Monthes
  • Extruder：Sj-75,33
  • Produce Speed：1-6m,Min
  • Output Capability：300-350kg,H
  • Transport Package：Wooden Pallet,Plastic Film
  • Specification：pipe dia. 110-600mm
  • Trademark：Huashida
  • Origin：Qingdao
  • HS Code：84772090
  • Production Capacity：100sets,Year

Description

Basic Info.

Model NO. HSD960-1680 Customized Customized Condition New After-sales Service 6-12 Monthes Extruder Sj-75/33 Produce Speed 1-6m/Min Output Capability 300-350kg/H Transport Package Wooden Pallet/Plastic Film Specification pipe dia. 110-600mm Trademark Huashida Origin Qingdao HS Code 84772090 Production Capacity 100sets/Year

Product Description

960-1680mm PU foaming preinsulation pipe of HDPE jacket shell casing extruder machine

Model:                                960-1680mm
Raw material & formulation: HDPE pellets
Total length of the line:         45m
Total power :                       about 560KW
Extruder:                            SJ-150/33
Output capability:                4000-1200kg/h
960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine
Introduction:
1. High-effeciency single screw extruder
Single screw is with barreir & mixing head; barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.

960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine

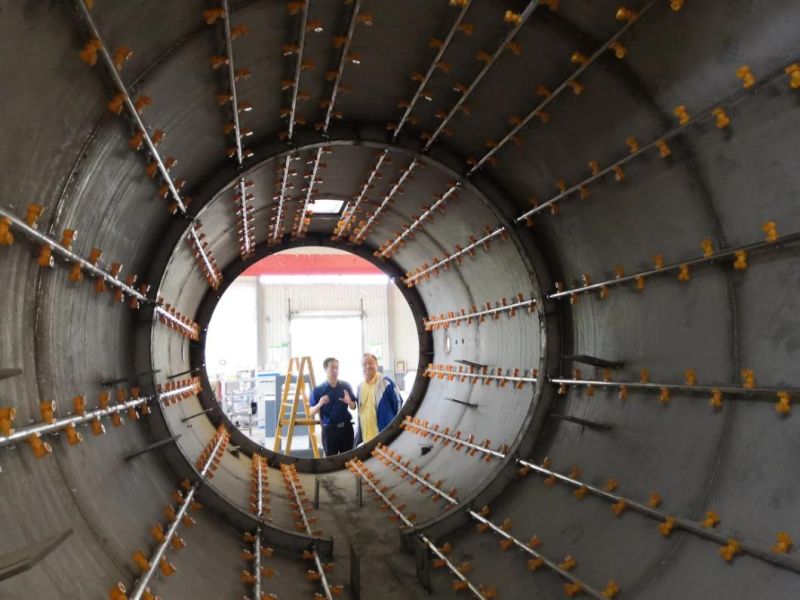

Vacuum forming tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, back and forth mobile device. When it is at work, the vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to realize calibrating the pipe outer diameter. Spray cooling system is used to cool down the extruded pipe by water. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.

960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine
Main machine line composed

No.NameQty.
1Hopper dryer & vacuum loader1set
2SJ150/33 High-efficiency Single Screw Extruder1set

3		Die head & Mould & Calibrator1set

4Vacuum calibration tank 6000mm 1set
5Water cooling tank 6000mm1set
5twelve-caterpillar Haul-off1set

6		Planetary cutting machine(Including dust catching device & ellipse correction)
1set
7Stacker1set
8PLC central controlling system1set

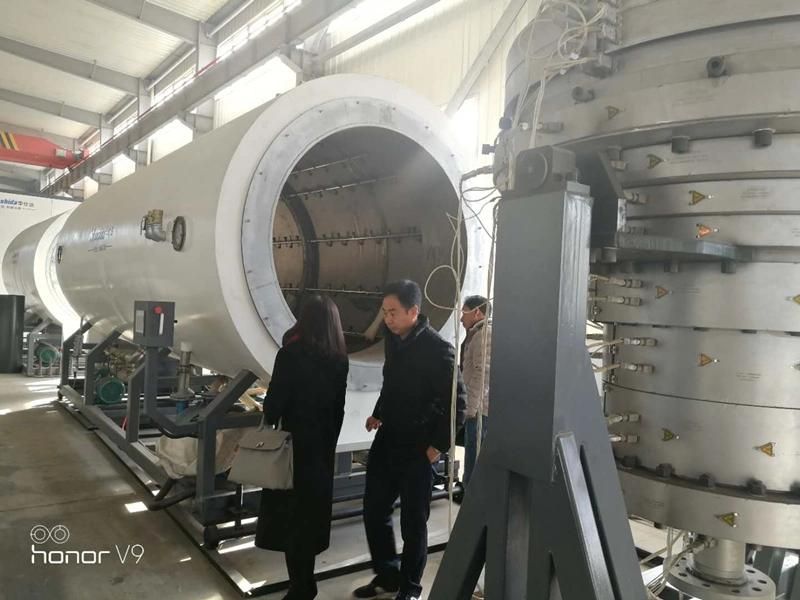

WORKSHOP

960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine
Client Visiting
960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine

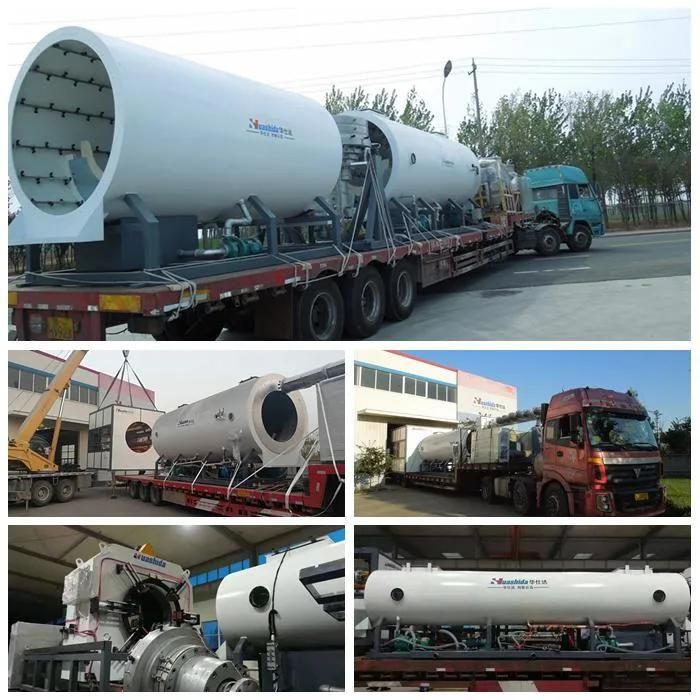

Delivery 960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine
Certification
960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine
 960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine960-1680mm PU Foaming Preinsulation Pipe of HDPE Jacket Shell Casing Extruder Machine
     Welcome you contact us to know more detail !
