• Model NO.：FRP Rebar Pultrusion Machine
• Certification：ISO9001:2008
• Customized：Customized
• Motor：2.2kw
• Speed Adjustment Method：Frequency Control
• Inverter Brand：ABB
• Material：Seal Plate Stainless Steel
• Transport Package：Wooden Packing
• Specification：4500*1500*1200
• Trademark：Prowell
• Origin：China
• HS Code：8477800000
• Production Capacity：150set

Belt Type

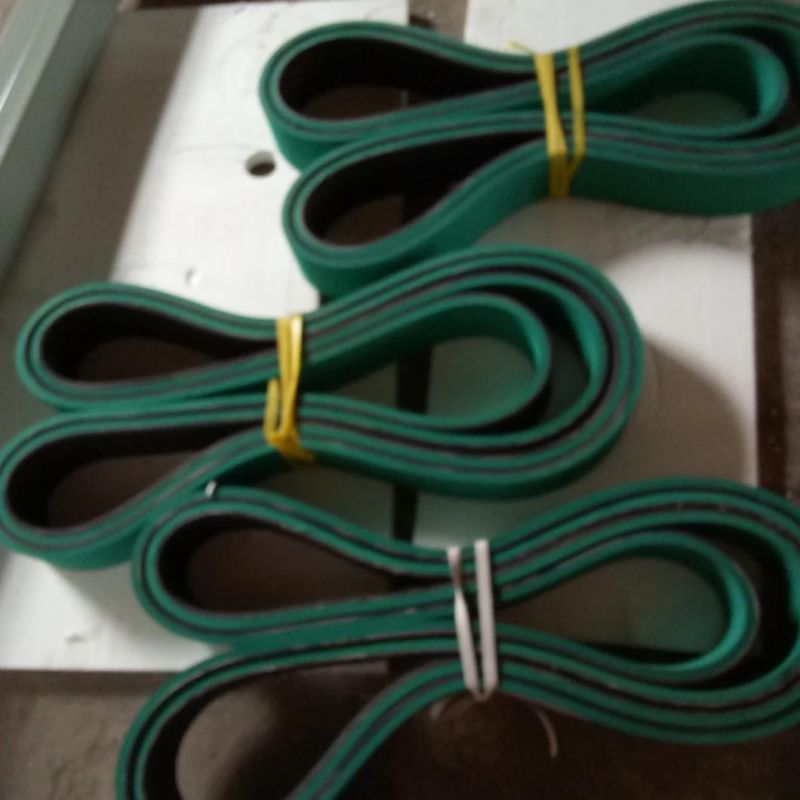

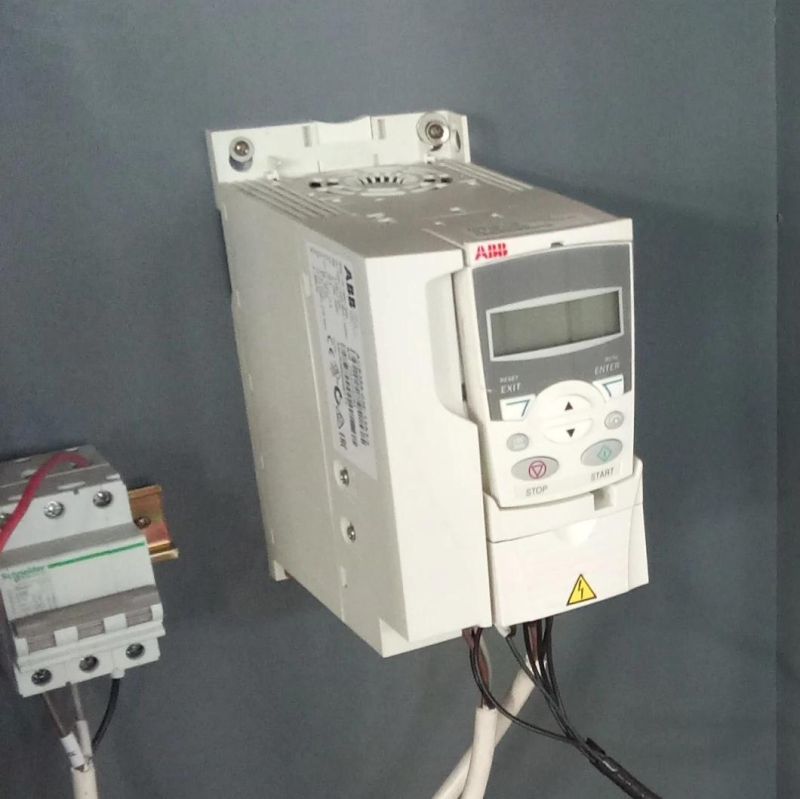

         High Hardness Rubber Block                                        ABB Frequency Converter                                   High Temperature Resistant Belt

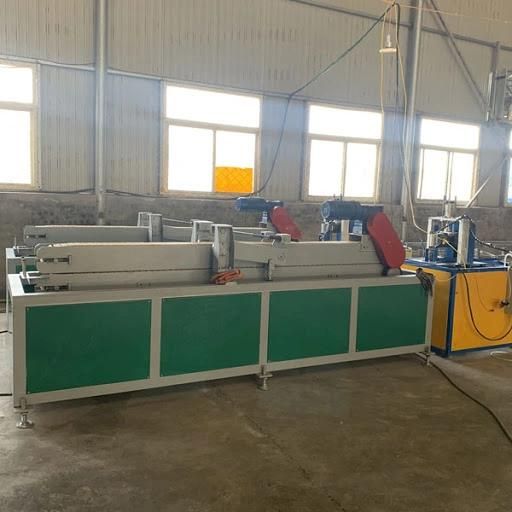

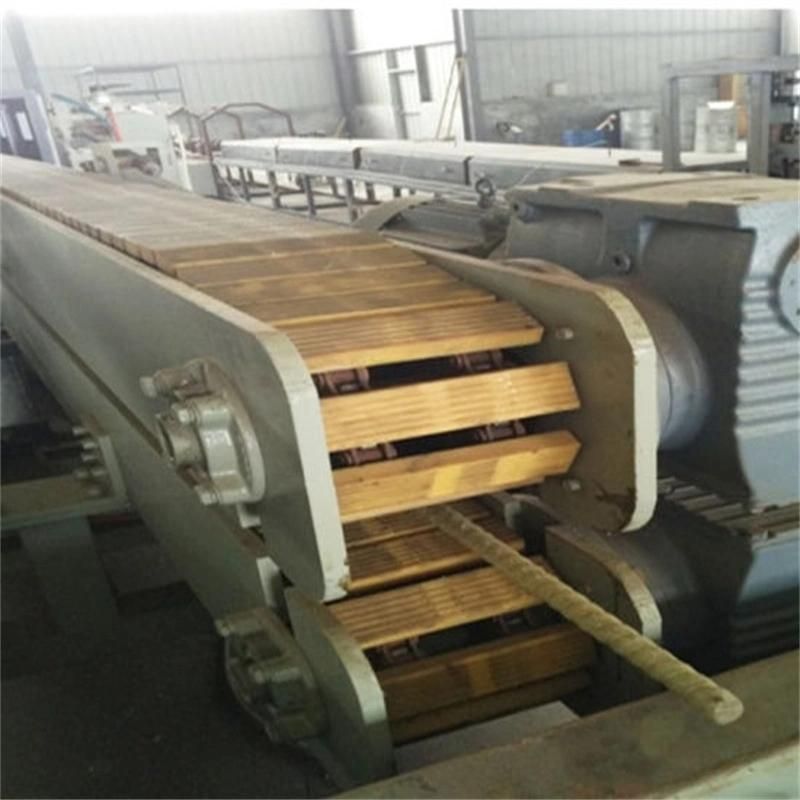

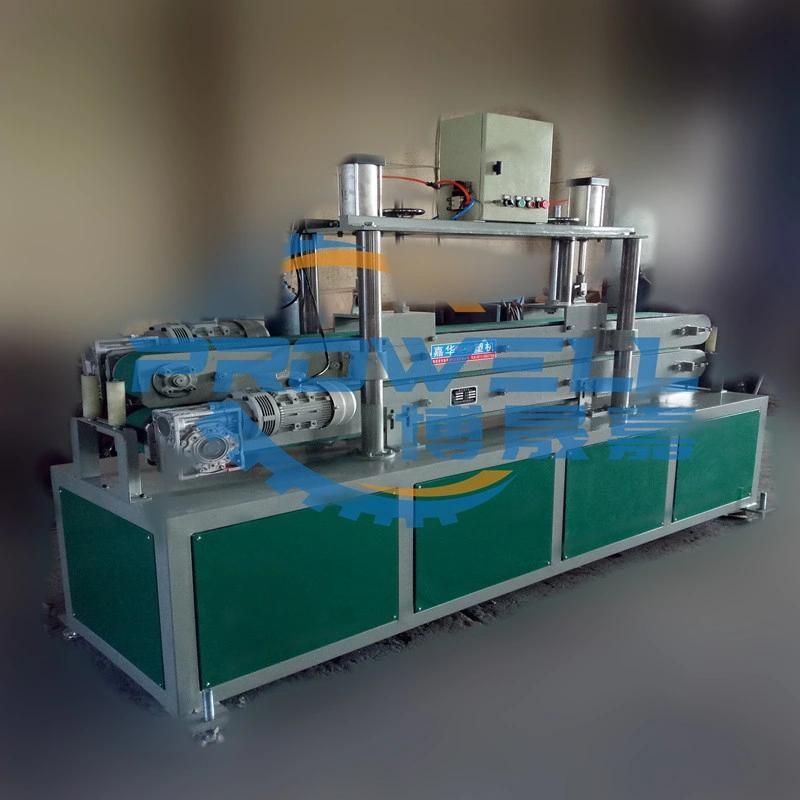

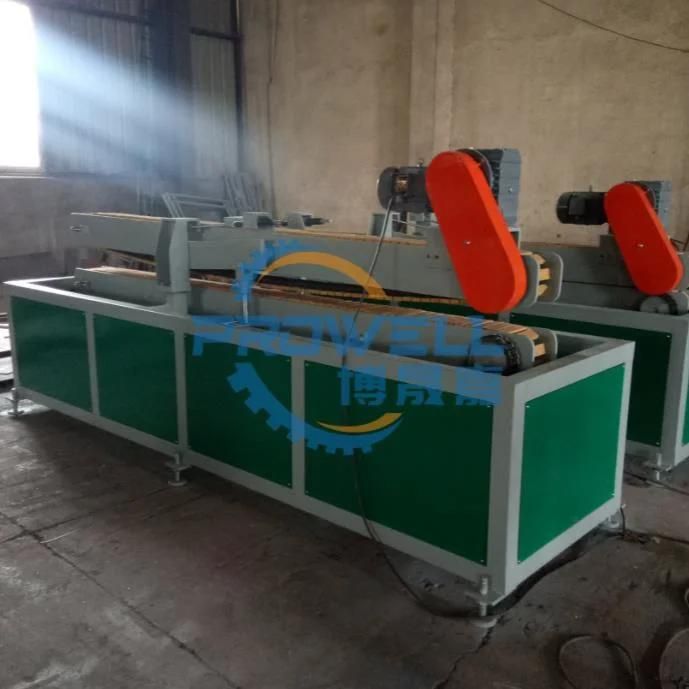

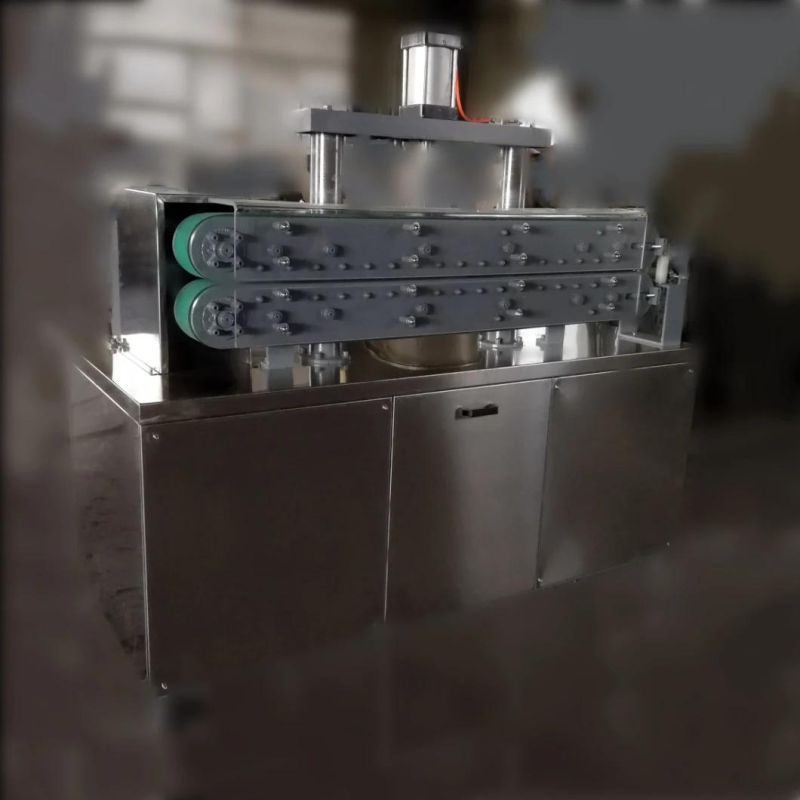

China Top GFRP Rods Hauling Puller/Fiberglass Reinforced Plastic Pultrusion Machine/Soild Rod Plastic Pipe Tractor   GFRP  Rubber Haul off Machine                                 1Haul off WayCaterpillar  2Motor 2.2KW*2  3Speed modeFrequency Control  4Transfer methodSprocket drive  5Haul Off Speed2 ~ 4m/mim  6Clamping methodPneumatic  7Applicable ProductsFrp Screw Rod/Glass fiber reinforced ribs  Because this equipment is a customized product, the above parameters are for reference only, please contact us if you need precise details

This FRP Rebar Pultrusion Making Machine equipment is a special machine for producing glass fiber reinforced materials. It is mainly made of fiber materials as reinforcement materials, resin as the body, adding a certain amount of additives, and drying and curing fiber products at a certain temperature. Medium function

1. The equipment is composed of creel, dipping device, winding device, heating device, traction device, cutting device, electric cabinet and pneumatic system.

2. The winding device adopts flexible winding wire, which will not cut the surface fiber structure.

The 3 yarn content can reach 80%, which greatly improves the mechanical properties of the rod body and reduces the product cost.

4. Automatic cutting, automatic unloading, saving a lot of labor costs.

5. It has a pre-heating function, which improves the curing effect and can smoothly produce rods with a diameter of 25mm or more.

6. The degree of automation is extremely high. The material trough, the pressure rod, the winding, the drying tunnel, and the traction are pneumatically controlled. All operations can be completed by operating the buttons on the electric cabinet.

9. The dust collector protects the environment and the health of the operator.

10. It adopts a closed type, beautiful and generous, has a heat preservation effect, and does not affect the operation.
