• Model NO.：CPJ58
• Screw Diameter：58.5
• Transport Package：1PC,Carton
• Specification：CPJ58
• Trademark：JOINER
• Origin：Sichuan
• HS Code：8477900000
• Production Capacity：200PCS,Year

 L/D8.5:1Powder (kw)4-5.5kwSections of Barrel 2Output Screw Speed 307Feed Materialsfillers, fiberglass, talcum powder,rubber dehydration, calcium carbonate and most inorganic materials Load Capacity(kg/h)300kg/hScrew Design:Double-ScrewApplication Machine:Twin Screw ExtruderCertification:ISO9001Automatic Grad:AutomaticConsistthe screw ,Gearbox ,Spline Housing, Box,
In a twin screw extruder, vacuum vent is generally located before the metering zone for removal of gases effectively in a continuous manner at lower than atmospheric pressure. This degassing helps to conserve the quality of the melt that is affected by the presence of monomers, solvents, moisture and other volatiles.


Side vacuum pumping machine are used for the following reasons:

1. In the process of polymer reaction and mixing, it is usually necessary to remove a large number of volatile components, such as water vapor, low molecular products, monomers, and easily crystallized substances. During operation, there is often melt material from the exhaust port or the exhaust port is blocked due to cooling and scaling, which affects the normal operation of the main engine. This problem can be solved by using the extrusion ability, self-cleaning ability and the completely open channel along the axial direction of the fully meshing coaxial twin-screw extruding material. Cooperate with the vacuum system to push the spilled material back to the main machine while removing volatile matter, so as to achieve the purpose of removing volatiles and the main machine running for a long time stably, reduce the downtime, reduce labor costs, improve product purity, reduce black spots, optimize the production capacity and process operating parameters.

Advantages of Joiner Side vacuum pumping machine

1). Independently develop and produce gearboxes.
a. All gearboxes are machined by gear grinding, the accuracy is up to six grades, and carburizing and hardening the tooth surface, thus ensuring that the noise of gearboxes is very low.
b. Gear casting is made of resin sand and machining center to ensure high precision.
c. The gearbox's bearing is imported from Germany.
d. The gearbox has unique design, long life and low noise.
e. The gearbox and screw element are connected by spline sleeve, which is very convenient to disassemble

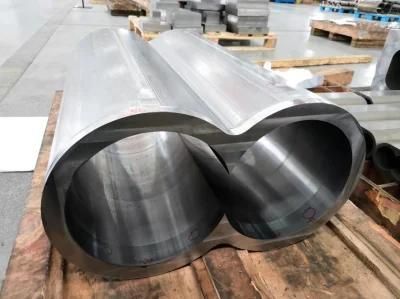

2). Barrel is made of wear resistant alloy steel and cooled by water channel.
3). Screw adopts modular screw, and the screw assembly can be adjusted according to different feeding materials to meet different feeding requirements.

Model and parameters:


Model	CPJ25	CPJ40	CPJ53	CPJ58	CPJ63	CPJ70
Screw diameter mm	25.4	35.5	45	58	63	70
Exhaust ability l/h	65	300	670	850	1350	1700
Screw speed rpm	Max.100	Max.100	Max.100	Max.100	Max.100	Max.100
Vacuum degree Mpa	0.02 - 0.098	0.02 - 0.098	0.02 - 0.098	0.02 - 0.098	0.02 - 0.098	0.02 - 0.098

Packing and Delivery

Packing Details : Standard packing for Joiner Extruder twin screw extruder parts/extruder spare parts
Delivery Details : Standard export packing
Delivery Time: Shipped in 45 days after payment for Side Feeder.

FRQ

1. Q: Are you a factory or trading company?
 ----A: A factory
2. Q: Where is your factory located? How can I visit there?
-----A: Our factory is located in Chengdu, Sichuan Province, China,
1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport;
All our clients, from domestic or abroad, are warmly welcome to visit us!
3.Q: What makes you different with others?
----A: 1) Our Excellent Service
 For a quick, no hassle quote just send email to us
 We promise to reply with a price within 24 hours - sometimes even within the hour.

2) Our quick manufacturing time
For Normal orders, we will promise to produce within 30 working days.
As a manufacturer, we can ensure the delivery time according to the formal contract.

 4.Q: How about the delivery time?
----A: This depends on the product. Typically standard products are delivered within 30 days.
5.Q: May I know the status of my order?
----A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
