• Assembly Structure：Separate Type Extruder
• Screw：Multi-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Material：LLDPE,LDPE
• Transport Package：Film Packing Wooden Box Packing
• Specification：8*6*2.5m
• Trademark：WT
• Origin：China
• Production Capacity：100

Basic Info.

Assembly Structure Separate Type Extruder Screw Multi-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Material LLDPE/LDPE Transport Package Film Packing Wooden Box Packing Specification 8*6*2.5m Trademark WT Origin China Production Capacity 100

Product Description

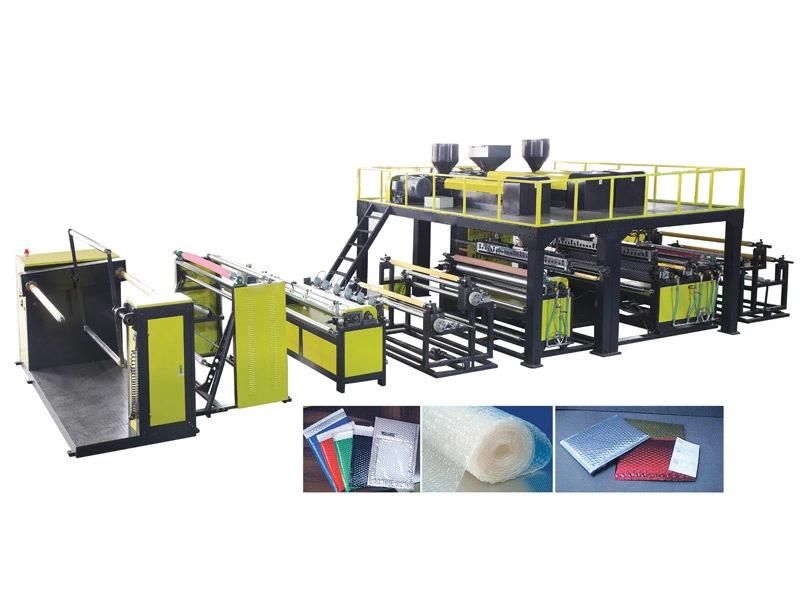

5-layer air bubble film machine (2 extruders)


Product Introduction:

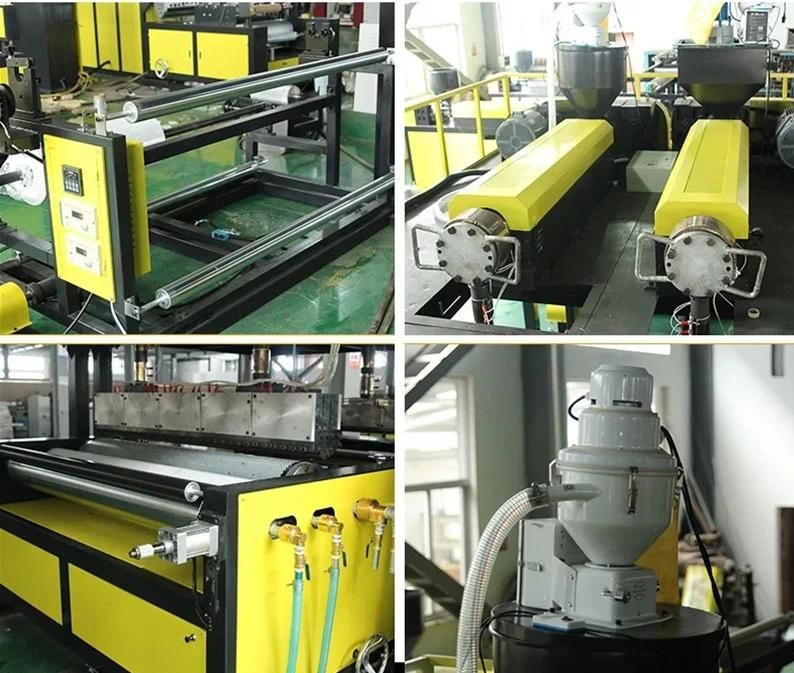

1. Main parts: 2 Extruders, Control Panel, Bubble forming section, Winder;
2. To produce 5 layers air bubble film (laminated layer + PE front layer + bubble layer + base layer + laminated layer);

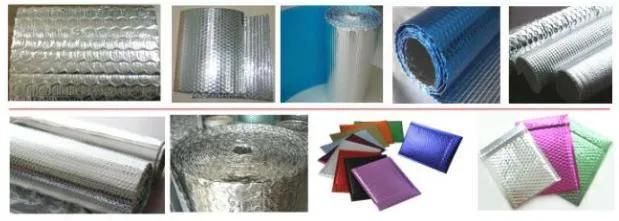

3. The laminated layer can be aluminized foil, MPET foil, kraft paper, EPE foam, BOPP film etc.;
4. Film width from 1,000mm to 3,000mm;
5. Screw L/D ratio is 1:30, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;
6. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation

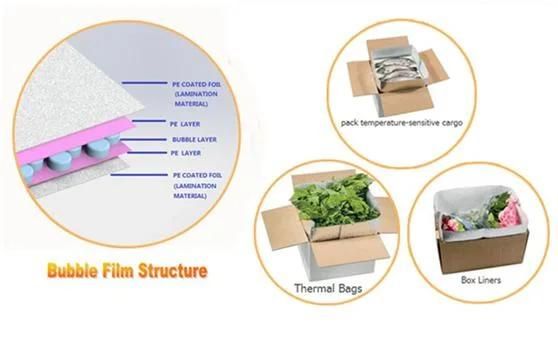

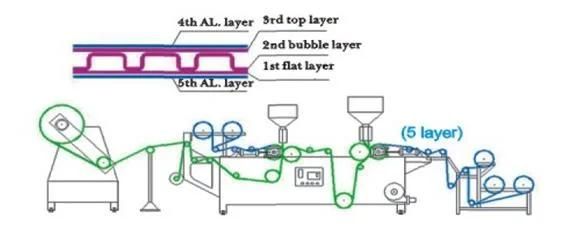

Mechanical Transmission Diagram & Bubble Structure:




Main Technical Variables:


Model	WTPEG-1000	WTPEG-1200
Diameter of Screw Stem	φ60mm , φ50mm	φ65mm , φ55mm
L/D Ratio of Screw	30:1	30:1
Material of Scerw & Barrel	38 CrMoALA	38 CrMoALA
Width of T-die Head	1150 mm	1350 mm
Heating Way	Casting-aluminum heating device	Casting-aluminum heating device
Width of Bubble Roller	1080 mm	1280 mm
Width of Products	1000 mm	1200 mm
Thickness	0. 06-0. 25 mm	0. 06-0. 30 mm
Main Motor	15 kw , 7.5 kw	15 kw , 11 kw
Tractiong Motor	1.1 kw*2	1.1 kw*2
Total Power	86 kw	95 kw
Rewinder	Turnover duplex turret rewinding type	Turnover duplex turret rewinding type
Max. Output	80 kg/h	100 kg/h
Linear Speed	1000 m/h	1000 m/h



Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing. If export to EUROPEAN countries, the wooden box will be fumigated. we  use PE film for packing or pack it according to customers special request.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
