• Model NO.：JY-350STDM-SS
• Computerized：Computerized
• Certification：CE
• Warranty：1 Year
• Machine Color：Customized
• Screw Diameter：30,32,35mm
• Max. Open Daylight：450,350mm
• Machine Weight：4200kg
• Injection Pressure：1171,996,810 Kg,Cm2
• Keyword：Vertical Plastic Injection Moulding Machine
• Machine Dimension：2.5m*1.9m*3.08m
• Slide Platen Size：830mm*400mm
• Min. Mold Height：200,150mm
• Transport Package：Playwood Frame Packing
• Specification：2.5m*1.9m*3.08m
• Trademark：JIEYANG
• Origin：Dongguan
• HS Code：8477209000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. JY-350STDM-SS Computerized Computerized Certification CE Warranty 1 Year Machine Color Customized Screw Diameter 30/32/35mm Max. Open Daylight 450/350mm Machine Weight 4200kg Injection Pressure 1171/996/810 Kg/Cm2 Keyword Vertical Plastic Injection Moulding Machine Machine Dimension 2.5m*1.9m*3.08m Slide Platen Size 830mm*400mm Min. Mold Height 200/150mm Transport Package Playwood Frame Packing Specification 2.5m*1.9m*3.08m Trademark JIEYANG Origin Dongguan HS Code 8477209000 Production Capacity 200 Sets/Month

Product Description

Product Description

Main Features

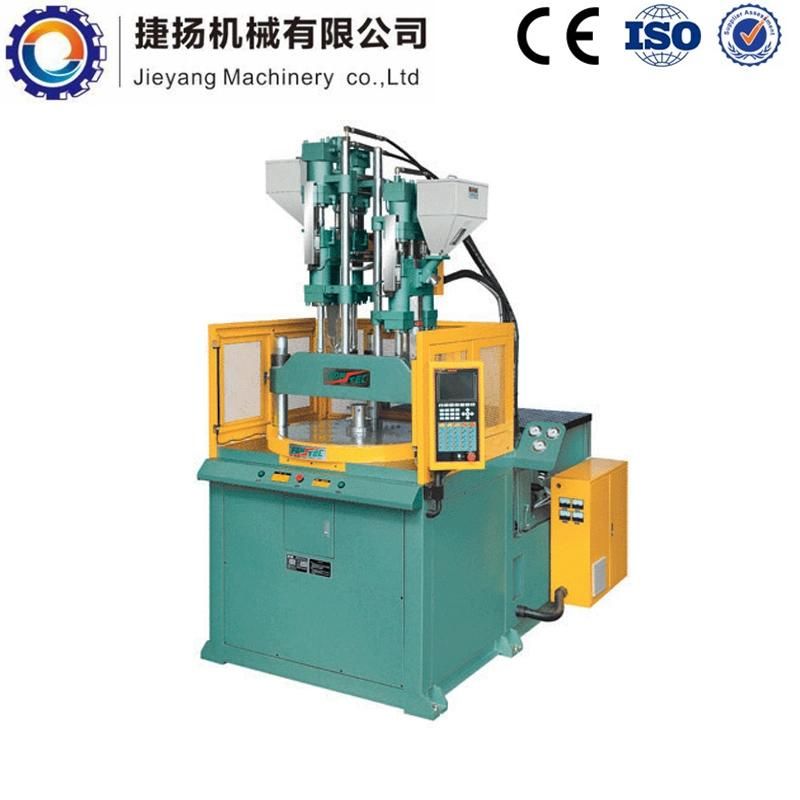

1) Load double-mode alternated side board in JY-DM double-color machine.One slow die and two upper dies are loaded in the machine. Alternate the dies from left to right at the same flat surface. After the completing of one color, don't take out the produce two-color products, Because high working safe features, working efficiency can be advanced in a large range. The finished goods are propped up to outside for completion.

2) Two single machines can be operated independently. Two machines can be also connected to operate.
3) When use single machine, thimble is built in.
4) Phase 5 of screw single machine controls temperature.

5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Low-pressure closed die assembly can protect the safety of die.

Machine Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.




Product Images


Our Company

Dongguan JieYang Machinery Co., Ltd established on 2010, located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2,000 square meters. We have more than 20years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment & professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.

We warmly welcome you to visit our factory, we are waiting for you at JieYang!





Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery

1.The standard package is wooden box without fumigation. 2. We can also pack it according to customers special request.

FAQ

Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
