• Model NO.：YS-600
• Computerized：Computerized
• Capacity：500kg
• Electrical Parts：Siemens, ABB, Schneider
• Motor：Siemens
• Control：by PLC Screen Touch
• PLC Brand：Siemens
• Guarantee Period：1 Year
• Manufacturing Time：30 Days
• Blades：Rotating and Fixed
• Blades Material：SKD-11
• Delivery：by Shipment
• Transport Package：Plastic Film,Wooden Box
• Specification：single shaft
• Trademark：Yusheng
• Origin：Zhangjiagang City (Near Shanghai), China
• HS Code：84778000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. YS-600 Computerized Computerized Capacity 500kg Electrical Parts Siemens, ABB, Schneider Motor Siemens Control by PLC Screen Touch PLC Brand Siemens Guarantee Period 1 Year Manufacturing Time 30 Days Blades Rotating and Fixed Blades Material SKD-11 Delivery by Shipment Transport Package Plastic Film/Wooden Box Specification single shaft Trademark Yusheng Origin Zhangjiagang City (Near Shanghai), China HS Code 84778000 Production Capacity 30 Sets/Month

Product Description

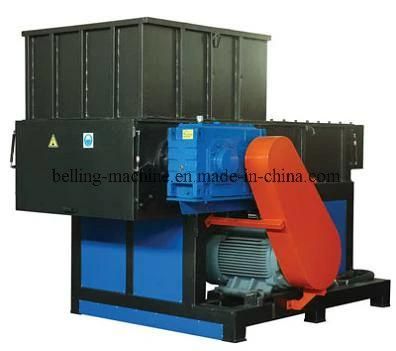

Machine name: Plastic single shaft shredder

Feature:

1. This Plastic Shredder is suitable to treat the big size of plastic product, such as big diameter plastic pipe, pressing plastic film and others

2. The blade base and blade on the rotary roller can be disassembly. It is easy to clean and maintenance.

3. The rotary blade adopt the V design, It can decrease the noise and decrease energy consumption.

4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.

5. Each fixed blade with 2 cutting knife edge, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continues use.

6. The main axis is drive by gearbox, its running very stably, low noise and strong power.

7. The material push feeding system is hydraulic ways, , its running very stably

The machine is control by PLC system, . The blade can rotated in opposite direction, and also can close automatic if something unexpected happen, with very high safety service.

If any need, please contact me to my email or cell phone.

Model Main motor powerkw Pushing powerkw Qty of rotary blade Qty of fixed blade Diameter of rotator Rotating speed (r/min) Capacity kg/h Dimension L*W*Hmm Weight kg YS-600 22or30 1.5 28 2 φ 252 90 400-600 1800*1215*1850 2000 YS-800 30or37 2.2 38 2 φ 400 85 500-750 2700*1700*2350 3200 YS-1000 37or45 2.2 48 2 φ 400 80 600-900 2700*2000*2350 3800
