PP Yarn Making Machine/Extruder Sj-L Series
Zhejiang Sanlong Universal Machinery Co., Ltd.- Drawing Line Speed (M/Min )：50-150
- Transport Package：Wooden Case
- Specification：ISO9001: 2008
- Trademark：SANLONG
- Origin：Wenzhou, Zhejing, China
Base Info
- Model NO.：SJ-L series
- HS Code：84778000
- Production Capacity：36 Sets Per Year
Description
Basic Info.
Model NO. SJ-L series HS Code 84778000 Production Capacity 36 Sets Per YearProduct Description

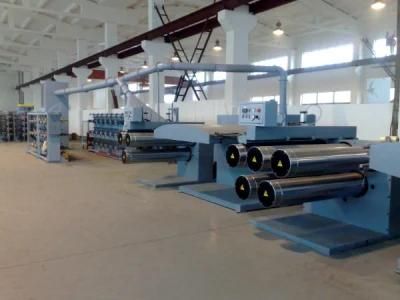

SJ-L Series Plastic Tape Extruder is designed according to our research on the basis of actual application in China plastic woven sacks industry. It is the most popular model in China market featured in being economical, practical, and reliable. It mainly adapts to the raw material of thermo-plasticity such as polythene (PE) and polypropylene (PP) and so on. It can also make full use of recycled material outputting low intensity of plastic tape, which brings enormous economic profit by reducing production cost.| Item Type | Diameter of Screw (mm ) | Screw L/D Ratio | Screw Rotational Speed (r/min) | Die Length (mm ) | Drawing Line Speed (m/min ) | Stretched Ratio | Prime Motor Power (kw ) | Drawing Motor Power ( kw ) | Heating Power (kw ) | Thickness of Plastic Tape (mm ) | Capacity (kg/h) | Installation Dimension (m ) | Weight(kg) |
| SJ-L115-8 | 115 | 22/27 | 20-80 | 800 | 50-150 | 4-7 | 18.5 | 5.5 | 48 | 0.025-0.08 | 40-80 | 14.1×1.55×1.2 | 5800 |
| SJ-L120-10 | 120 | 23/29 | 20-80 | 1000 | 50-150 | 4-7 | 22/37 | 5.5 | 50/54 | 0.025--0.08 | 70-100 | 18.1×1.75×1.3 | 7500 |
| SJ-L120-12 | 120 | 24/30 | 20-80 | 1200 | 50-150 | 4-7 | 22/37 | 7.5 | 52/56 | 0.025--0.08 | 80-110 | 18.1×2×1.3 | 8500 |
| SJ-L132-15 | 132 | 24/30 | 20-80 | 1500 | 50-150 | 4-7 | 30/37 | 7.5 | 57/61 | 0.025--0.08 | 105-135 | 19.5×2.4×1.3 | 10500 |
| SJ-L135-16 | 135 | 26/30 | 20-70 | 1600 | 50-150 | 4-7 | 30/45 | 7.5 | 61/65 | 0.025--0.08 | 130-160 | 19.6×2.6×1.3 | 11200 |
| SJ-L140-18 | 140 | 27/30 | 20-70 | 1800 | 50-150 | 4-7 | 37/45 | 11 | 71/75 | 0.025--0.08 | 150-180 | 19.9×2.95×1.3 | 12800 |
| SJ-L145-20 | 145 | 27/30 | 20-70 | 2000 | 50-150 | 4-7 | 45/55 | 11 | 75/81 | 0.025--0.08 | 170-200 | 20.1×3.25×1.3 | 14000 |
| SJ-L150-22 | 150 | 27/30 | 20-70 | 220 | 50-150 | 4-7 | 45/55 | 11 | 86/90 | 0.025-0.08 | 190-225 | 20.4×3.85×1.35 | 15300 |
| SJ-L155-24 | 155 | 27/31 | 20-65 | 2400 | 50-150 | 4-7 | 55/75 | 11 | 90/94 | 0.025-0.08 | 205-235 | 20.8×4.2×1.35 | 16800 |
| SJ-L155-26 | 155 | 27/32 | 20-65 | 2600 | 50-150 | 4-7 | 55/75 | 15 | 98/103 | 0.025-0.08 | 220-250 | 21×4.55×1.35 | 18600 |
| SJ-L160-28 | 160 | 27/32 | 20-65 | 2800 | 50-150 | 4-7 | 55/75 | 15 | 106/112 | 0.025-0.08 | 240-270 | 22×4.75×1.4 | 21000 |
| SJ-L165-30 | 165 | 27/32 | 20-65 | 3000 | 50-150 | 4-7 | 75/90 | 15 | 114/120 | 0.025-0.08 | 260-300 | 22.5×5.05×1.4 | 23500 |
| SJ-L170-32 | 170 | 28/32 | 20-65 | 3200 | 50-150 | 4-7 | 75/90 | 18.5 | 122/128 | 0.025-0.08 | 290-350 | 22.8×5.05×1.7 | 26000 |
