• Model NO.：BSF2513
• Material Thickness：0-20mm
• Vacuum Pump Output：60cbm,H
• Temperature Control：Pid Regulation
• Heating Plate：Anodized Aluminum
• Transport Package：Standard Export Package Which Can Protect Machine
• Specification：CE
• Trademark：baoyuantong
• Origin：Shandong, Weifang
• HS Code：8477401000
• Production Capacity：80sets,Month

Basic Info.

Model NO. BSF2513 Material Thickness 0-20mm Vacuum Pump Output 60cbm/H Temperature Control Pid Regulation Heating Plate Anodized Aluminum Transport Package Standard Export Package Which Can Protect Machine Specification CE Trademark baoyuantong Origin Shandong, Weifang HS Code 8477401000 Production Capacity 80sets/Month

Product Description

Overview

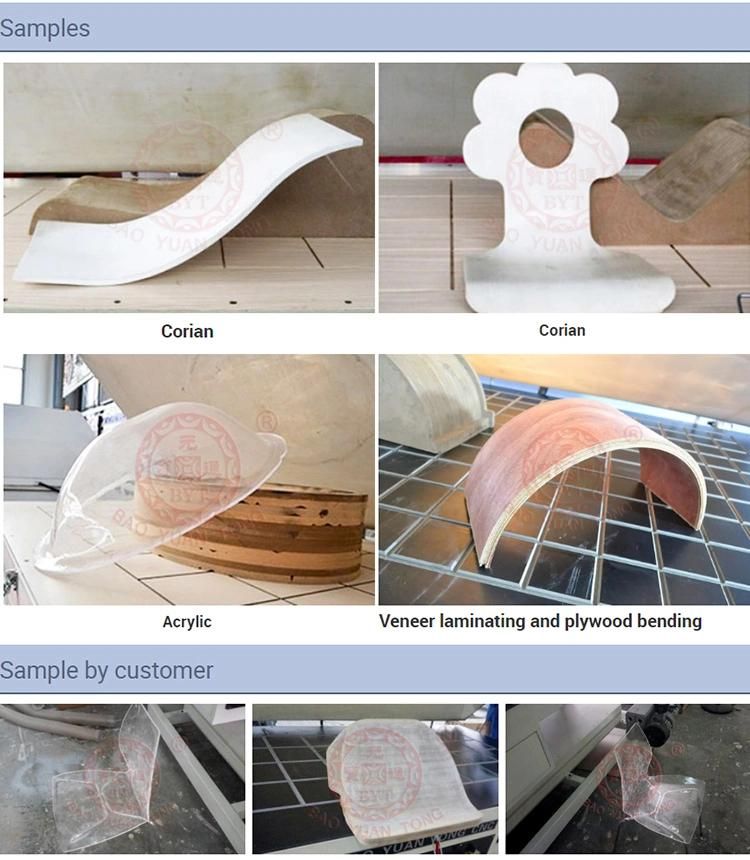

The thermoforming membrane vacuum presses BFM1325 is designed special for solid surface materials(Corian, Hi Macs, Staron, Hanex, Kerrock and others) preheating and shaping, as well an acrylic material and a
thermoplastic forming. Capacities and sized could also be costomized, this machine combined solution which including functions of two separate machines a vacuum press and the preheating oven, greatly increases its functionality.

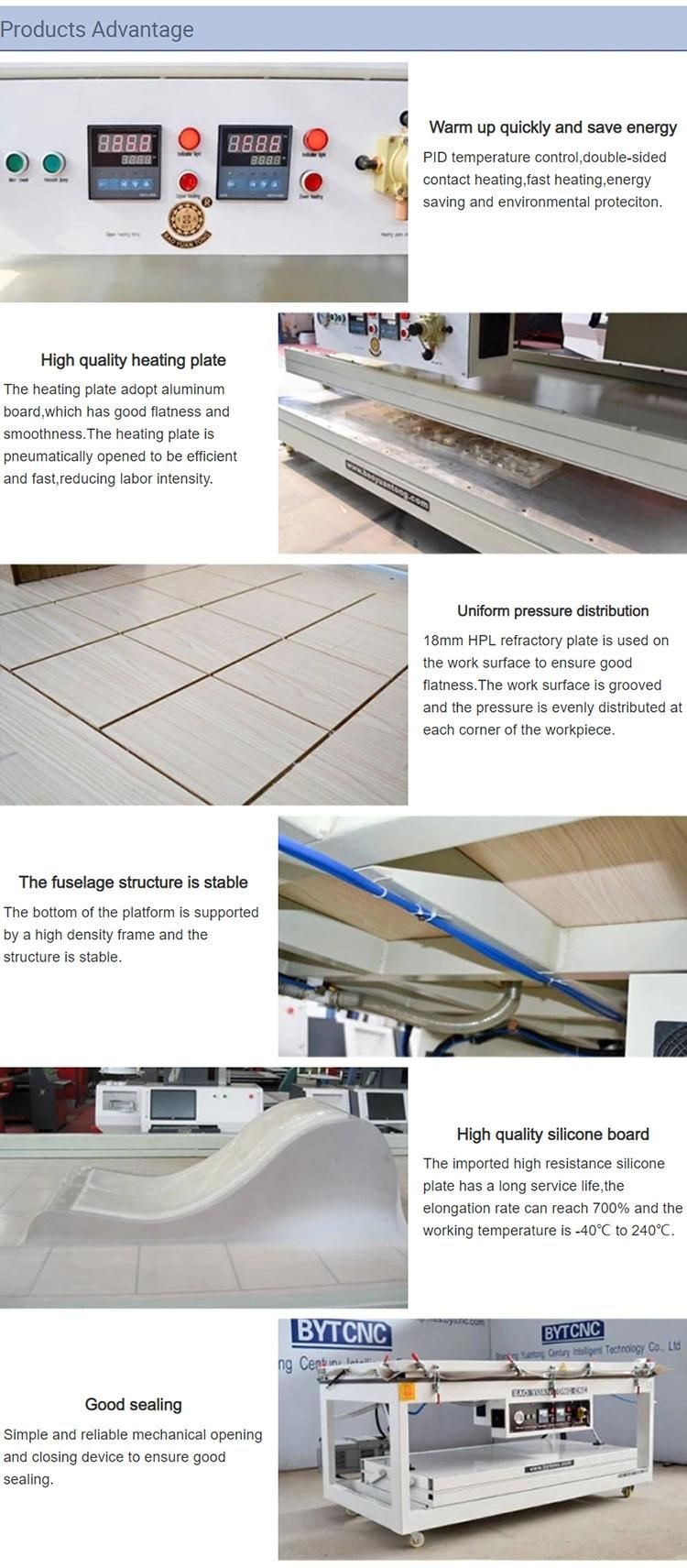

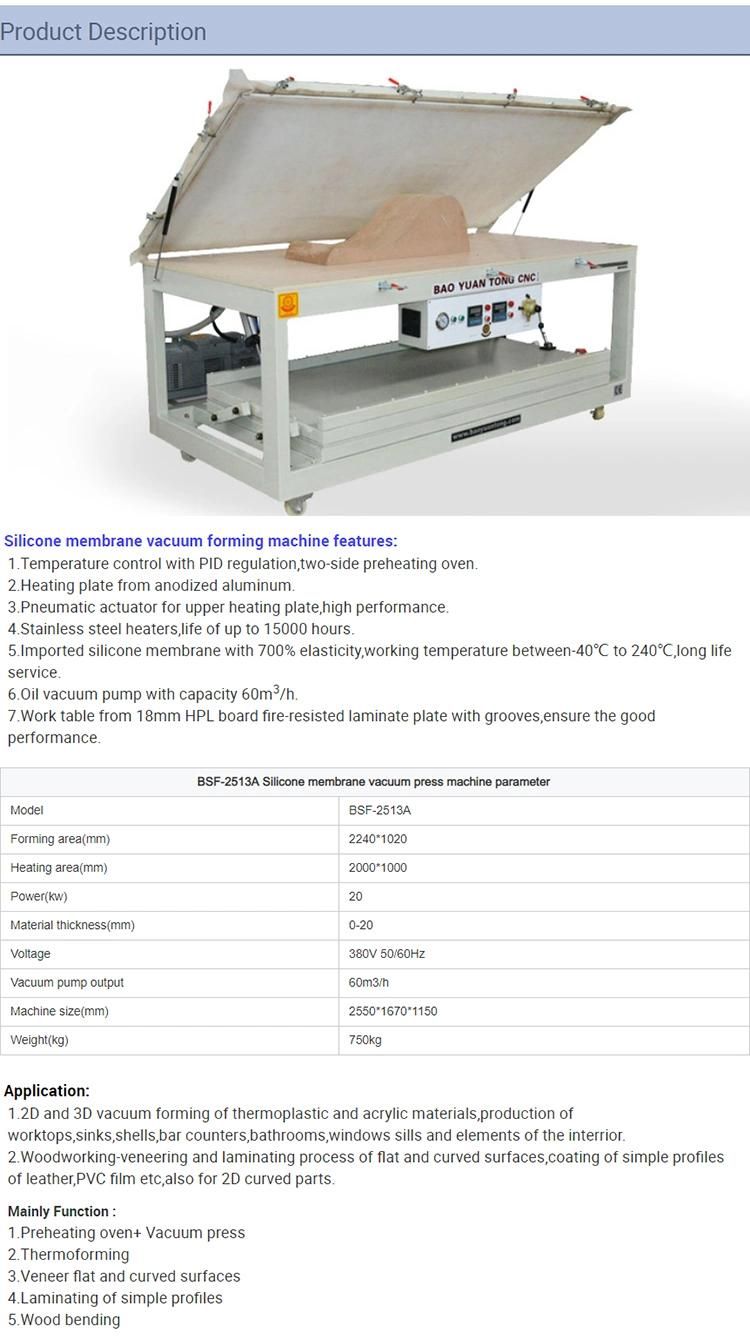

Features
1. Temperature control with PID regulation, two-side preheating oven.

2.Heating plate from anodized aluminum.

3.Pneumatic actuator for upper heating plate, high performance.

4.Stainless steel heaters, life of up to 15000 hours.

5.Imported silicone membrane with 700% elasticity, working temperature between -40ºC to 240ºC, long life service.

6.Oil free vacuum pump with capacity 60m³/h.

7.Work table from fire-resisted laminate plate with grooves, ensure the good performance.





Corian vacuum forming machine working video as below :

http://youtu.be/kZI7TJ62FYg
