Single Screw Extruder Machine for Plastic Sheet Product Extrusion Line
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Sheet Extruder
- Plastic Processed：PP
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Assembly Structure：Separate Type Extruder
- Screw：Single-Screw
- Engagement System：Non-Intermeshing
- Screw Channel Structure：Non Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Non-Computerized
- Transport Package：Film Packaging
- Specification：11m*1.6m*2.3m
- Trademark：HOIN
- Origin：Ruian,Wenzhou,China
- HS Code：8477209000
- Production Capacity：10sets,Months
Description
Raw Material
PP/PE/PS (New or Reclaimed)
Suitable Sheet Thickness
0.3-2.0mm (Adjustable Extent)
Max.Width Of Finished Sheet
720mm
Max. Capacity
180Kg/H
Diameter of screw
Φ110mm
Length-Diameter Ratio of Screw
32:1
Main Motor Of Extrusion
55Kw
Gear Box
250 Model (Hard Tooth Surface)
T-Die Width
850mm
Die Lip Pitch Range
0.3-2.0mm
Hydraulic Net-change Motor
2.2Kw
Three-roller Diameter
Φ350*850mm (Up,Middle,Down)
Three-roller Transmission Motor
4Kw
Rewinding Motor
3Kw
Voltage Support
3Phase 380V, 50Hz,4Lines
Work Power
About 50-60Kw
Total Power
About 150Kw
Capacity of Water Consumption
18-22 m³/H
Machine Weight
About 6000Kgs
Overall Dimension
11*1.4*2.3mm
E.Disposable Plastic Cup Production line:
F.Thermoforming Machine Moulds

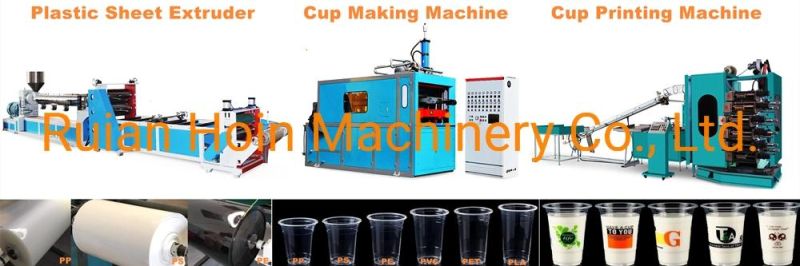

H.MORE PRODUCTS1.Plastic Sheet Extruder(Single Screw/Double Layers)
2.Plastic Thermoforming Machine(Cup/Lid/Bowl/Tray/Container Making Machine,etc...)
3.Thermoforming Moulds(Cup/Lid/Bowl/Tray/Container Mould,etc...)
4.Plastic Cup Printing Machine & Cup Packing Machine & Cup Stacking Machine
5.Film Blowing Machine & Flim Printing Machine & Bag Making Machine
6.Other Auxiliary Equipments:Mixing Machine,Material Feeding Machine,Cooling Tower,
Robot,Cup Stacking Machine,Hydraulic Forlift,Chiller,Crushing Machine,etc...
