HDPE Water Plastic Electric Conduit Tube Single Screw Extruder Machinery
Qingdao Hanhai Plastic Machinery Co., Ltd.- Warranty：One Year
- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：HDPE PPR Plastic Pipe Making Machine
- Customized：Customized
- Condition：New
- After-sales Service：One Year
- Voltage：380V 50Hz 3phase(Customized)
- Screw Material：38crmoaia
- Screw L/D Ratio：33:1
- Raw Material：HDPE PPR Granules
- Features：Competitive Price, Long Service Life
- Final Products：All Kinds of PE PPR Pipes
- Diameter 1：16mm,20mm,25mm,32mm,40mm,50mm,63mm,75mm,100mm
- Diameter 2：125mm,150mm,160mm,200mm,250mm,400mm
- Extruder Style1：Sj55,Sj65,Sj75,Sj80,Sj92,Sj120,Sj130,Sj150
- Extruder Style 2：Sjsz55,Sjsz65,Sjsz75,Sjsz80,Sjsz92,Sjsz120,Sjsz130
- Moter：Simens Beide
- PLC：Simens
- Capacity：80-500kg
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Cooling Way：Recycling Water Cooling,Fan Air Cooling
- Transport Package：Film, Plywood Case, Container
- Specification：20m*2m*2.5m, 8-15Ton
- Trademark：Hanhai
- Origin：Qingdao, China
- HS Code：84772090
- Production Capacity：40-50 Sets Per Year
Description
41000

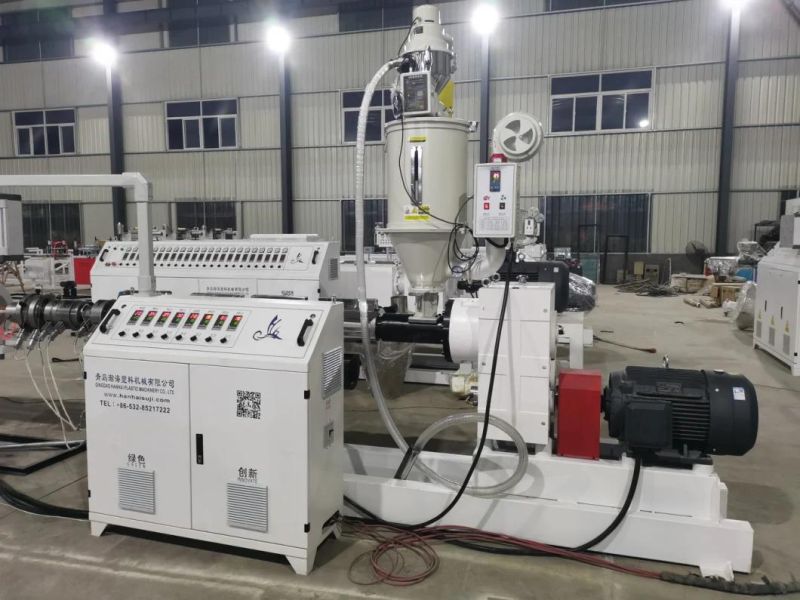

Details Images1.Single screw extruder with automatic feeding system:According to the requirements of different diameters, different wall thicknesses and different output of pipes, we have many models of special single screw extruders to choose from. It adopts a specially designed screw structure, which can evenly heat, plasticize PE granules and extrude pipes .
(1) Motor brand: Siemens
(2) Inverter brand: Delta
(3) Contactor brand: Siemens
(4) Relay brand: Omron
(5) Material of screw and barrel: 38CrMoAlA.
(6) Heating method: Ceramic or cast aluminum heating

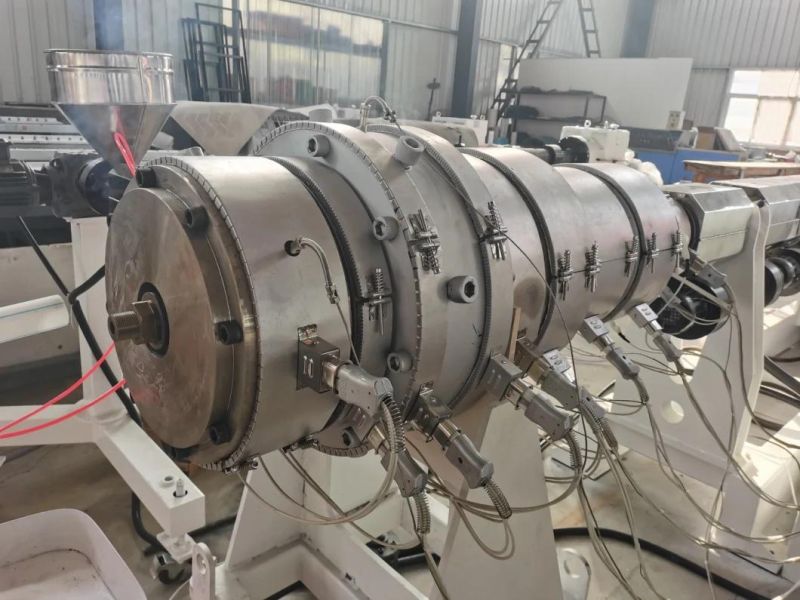

2. Mould:The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.(1) Material: 40GR(2) Size: Customized

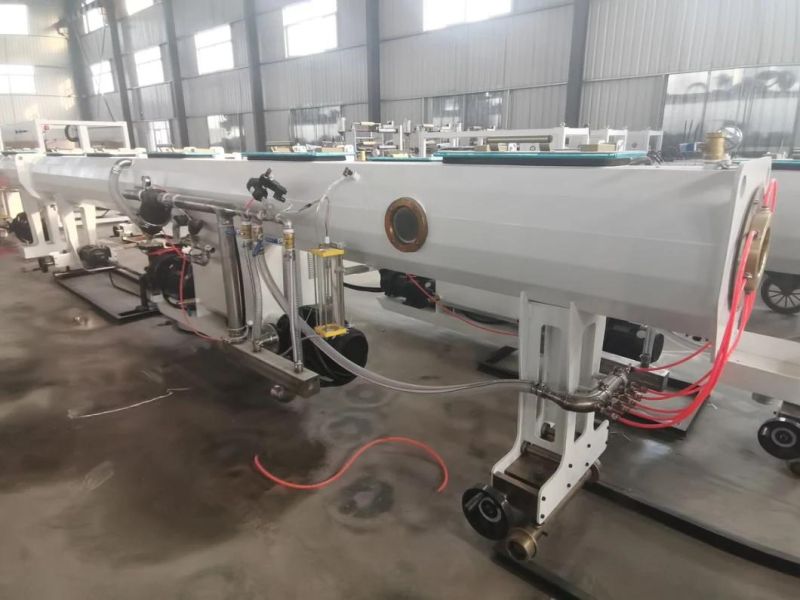

3.Calibrating and cooling tank:The calibrating and cooling tank can calibrate and cool the pipe from the mould.(1) Vacuum pump power : 4 kw (2) Stainless steel material: 1Cr18NiTi
(3) Diameter of tank : Customized
(4) Length of tank: 6 m

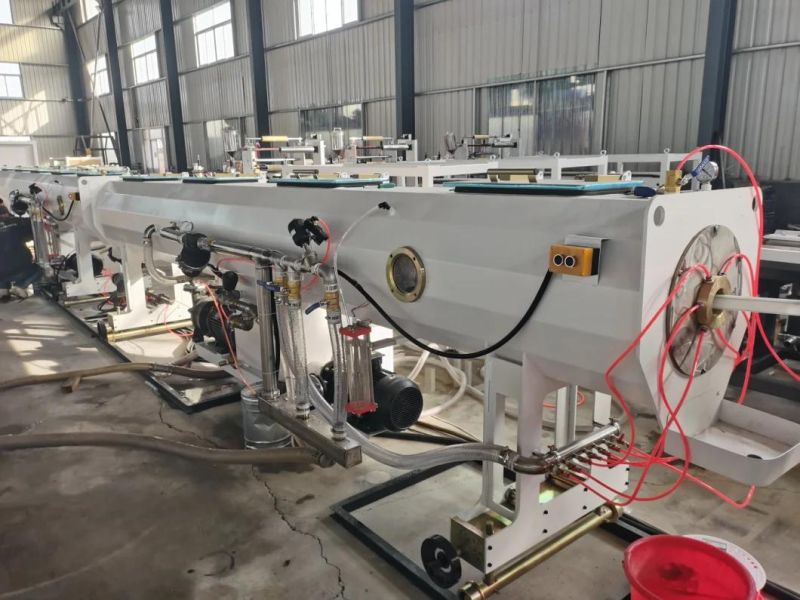

4.Water cooling tank
(1) Water pump power: 2.2 kw*2
(2) Spray cooling: ABS nozzle; Stainless steel pipe
(3) Method: Enforced spraying
(4) Length of tank: 6 m

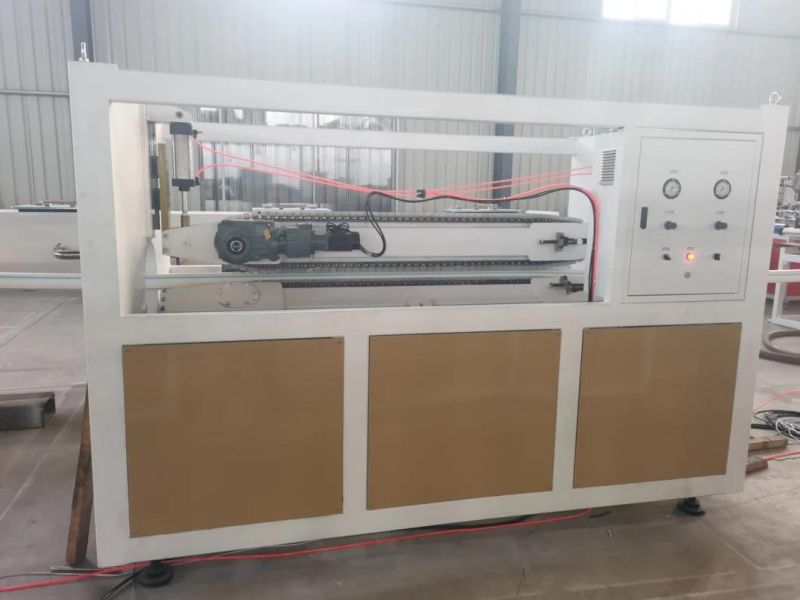

5.Haul-off machineThe haul-off machine can transport pipe to cutting machine.(1) Hauling power: 1.5 kw (2) Clamping style: Pneumatic clamping
(3) Transducer: Siemens transducer
(4) Hauling track type: Plastic block
(5) Effective clamping length 1800 mm

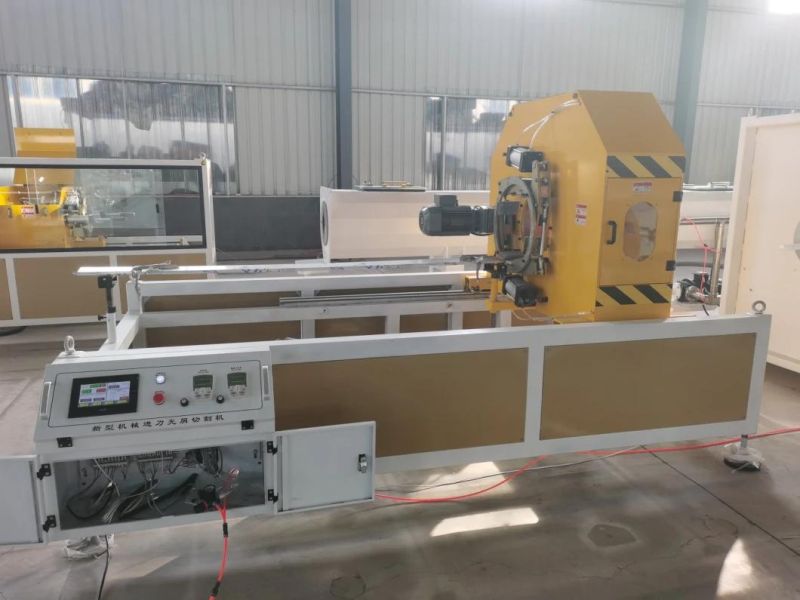

6.Cutting machine:The special cutting machine for pipe adopts rotary clamping device, is suitable for different pipe diameters, avoids the trouble of frequently changing clamping device.(1) Cutting motor power: 1.5 kw(2) Cutting scope: Customized (3) Control means: Pneumatic control

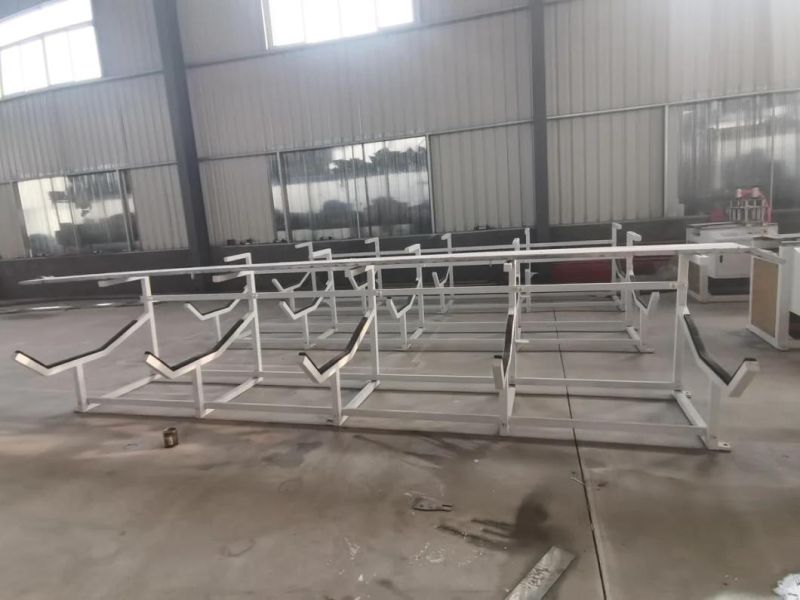

7.Stacker:It is used to hold pipes and can unload pipes automatically.(1) Length: 6000 mm(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading

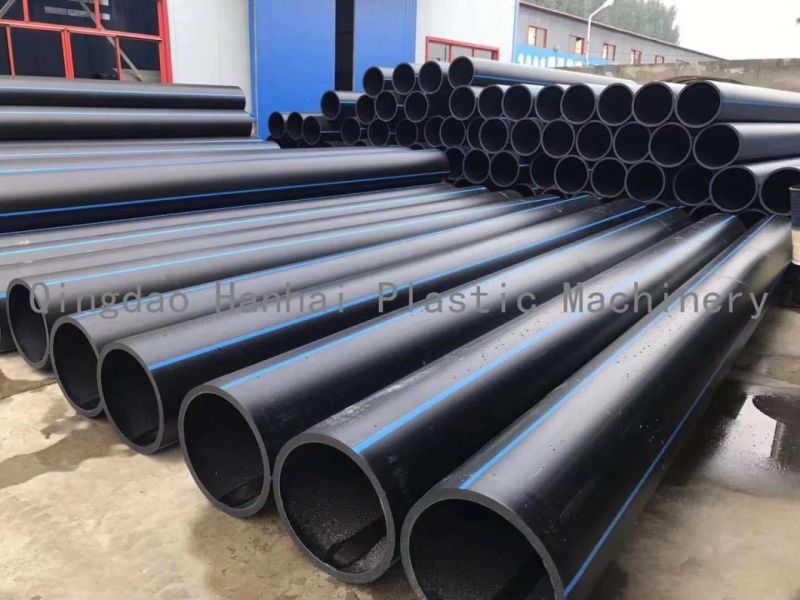

Final Products
You just tell me what machine you want,let us do the rest work:1. Design and manufacture suitble machine for you.2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)3. Delivery.4. We will provide after-sales service: (1) Field installation and commissioning; (2) Field training your workers;
(3) Field maintenance and repair service ;(4) Free Spare Parts ; (5) Video/Online technical support.

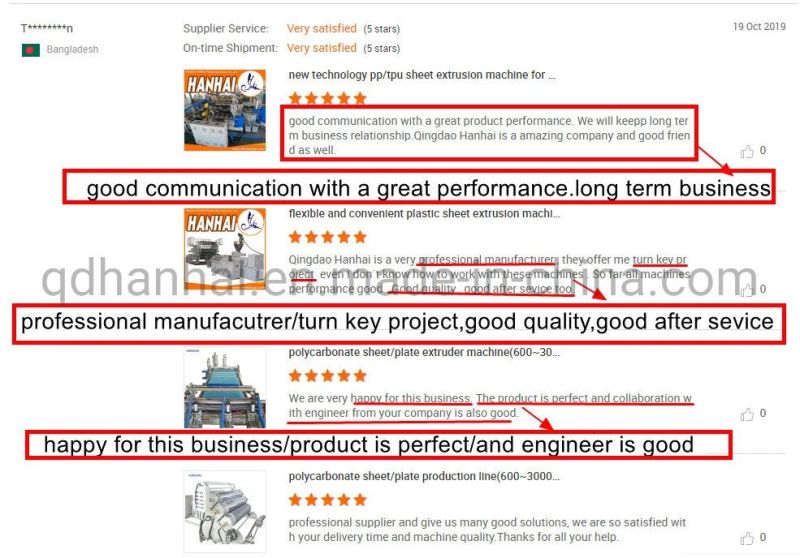

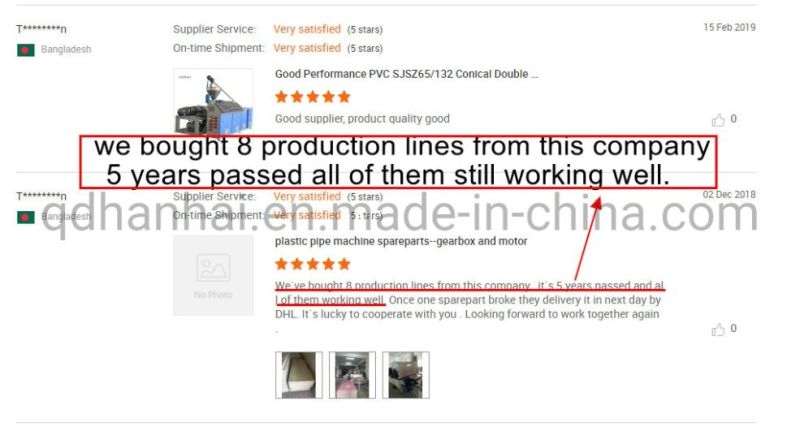

Reviews by customers
FAQ:1.Are you manufacturer or trading company?
We are manufacturer.
2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.
3.Delivery time: 30~40 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C(at sight).
5.After Warranty Service: Field maintenance and repair service; Spare parts; Long-term technical support.
