• Model NO.：SJ-50,55,60
• Max. Folding Width of Film：600mm
• Max. Extrusion Output：30-70kg,H
• Total Power：32kw
• Main Motor：Siemens
• Inverter：Yaskawa
• Extrusion Machine：Alloy Screw and Hard Surface Gear Box
• Switch/Breaker：Schneider or Chint Brand
• Winding Machine：Single or Double Rewinder
• Machine Color：Yellow and Dark Gray
• Transport Package：in Standard Wooden Case
• Specification：CE certificate
• Trademark：Elight
• Origin：China(Zhejiang)
• HS Code：847730000
• Production Capacity：25sets,Month

Basic Info.

Model NO. SJ-50/55/60 Max. Folding Width of Film 600mm Max. Extrusion Output 30-70kg/H Total Power 32kw Main Motor Siemens Inverter Yaskawa Extrusion Machine Alloy Screw and Hard Surface Gear Box Switch/Breaker Schneider or Chint Brand Winding Machine Single or Double Rewinder Machine Color Yellow and Dark Gray Transport Package in Standard Wooden Case Specification CE certificate Trademark Elight Origin China(Zhejiang) HS Code 847730000 Production Capacity 25sets/Month

Product Description

High speed film blowing machine unit (Model A)


1.Use:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness,  durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which  helps  in crease  the production capacity. It is applied  to blowing  the plastic films like low density polytene  (LDPE),  high density  polytene  (HDPE) and linear low density polytene (LLDPE), It is widely applied  to producing the packing bags for foodstuff, clothing, rubbish bag  and vest ones.



2.Main Technical Variables:

Model	SJ-50/FM600	SJ-55/FM800	SJ-60/FM1000
Screw Diameter	50mm	55mm	60mm
Screw Ratio	L/D30:1	L/D30:1	L/D30:1
Screw Speed	10-150r/min	10-150r/min	10-150r/min
Power of Main Motor	22kw	30kw	37kw
Max. Extrusion output	30-70kg/h	40-100kg/h	50-120kg/h
Max. Folding Width of Film	600mm	800mm	1000mm
Single-sided Thickness of Film	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Total Power	32kw	44kw	49kw
Weight of machine	2600kg	3000kg	3500kg
Overall Dimensions(L*W*H)	4600X2600X4000mm	4800X2800X4300mm	5000X3000X4800mm

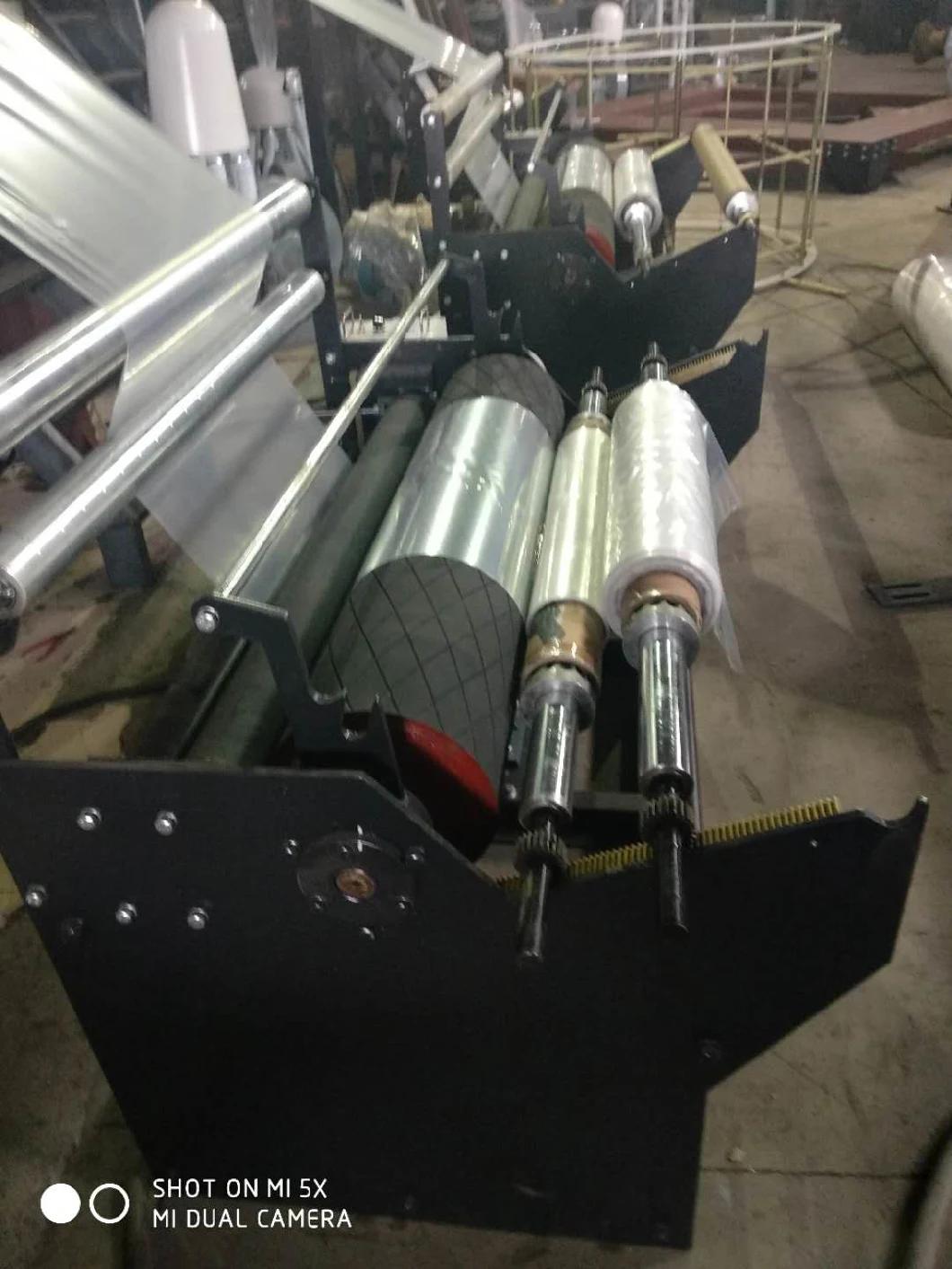

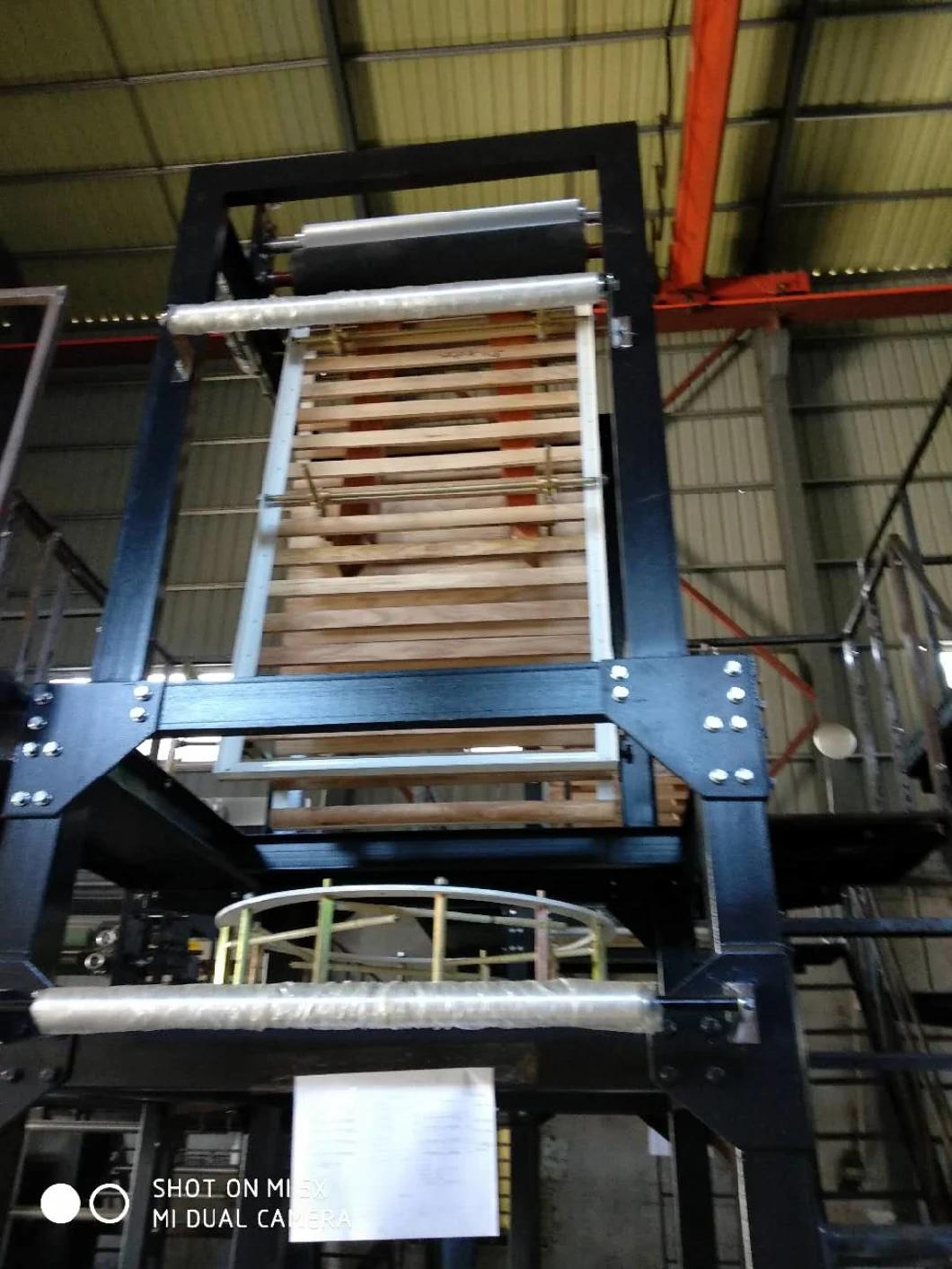

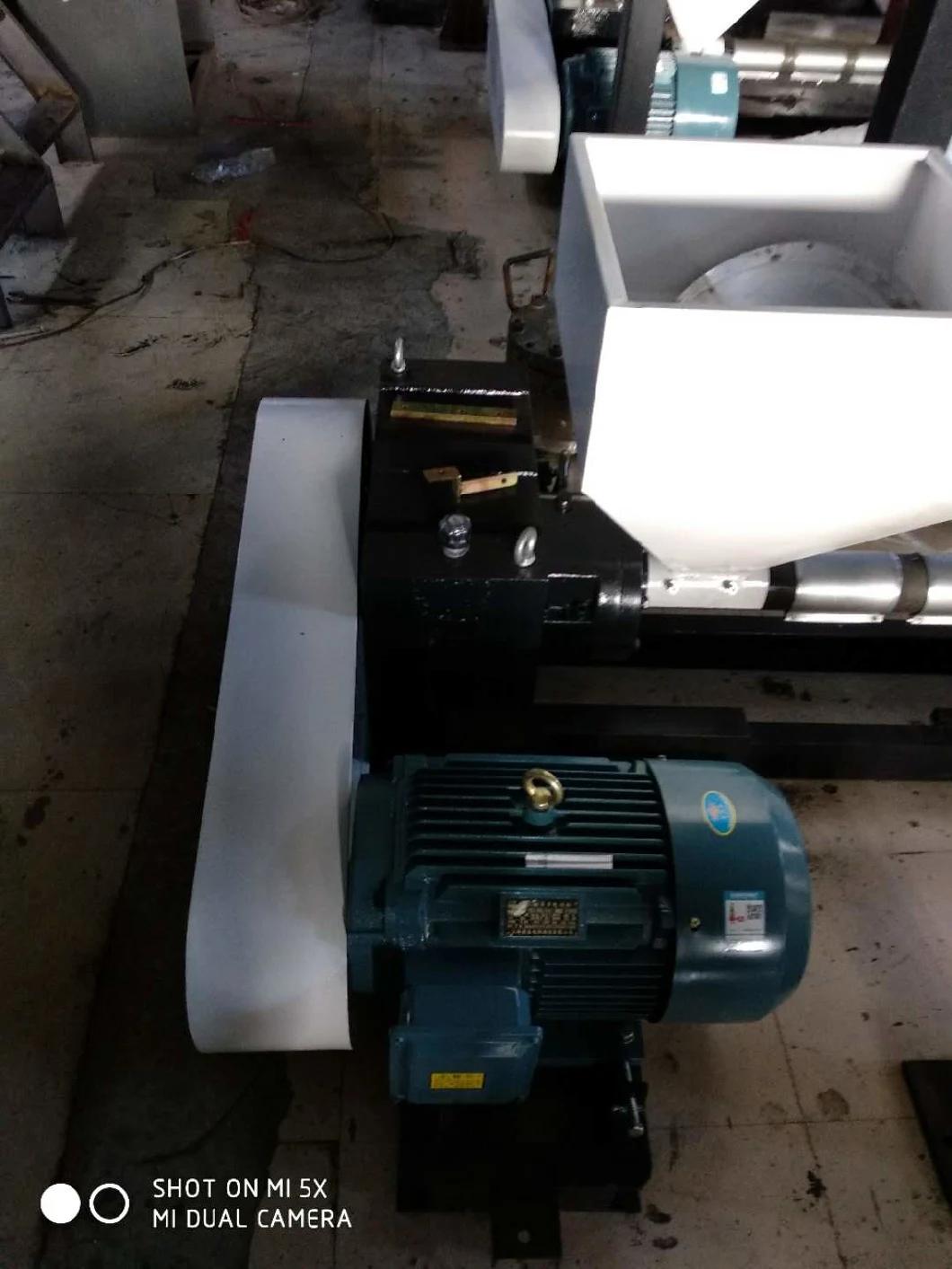

 Machine Parts:








3.Our Company
Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang. It is specialized in producing Series of plastics-packaging equipment.We are engaged in producing bag-making  machine,Printing Machine,Film Blowing Machine, etc.

4. Installation Services:
   Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

5.After Sales Service:
    We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

6. Contact person :Huhu Luo

 M.B/Whatsapp/Facebook: 86-18858878219

 http ://ruianxinye.en.made-in-china.com



Contact me and I promise to offer you good price
