• Model NO.：XNC1200
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, UL, SGS
• Shredding Room：1200*600mm
• Shredder Rotor Diameter：400mm
• Crusher Rotor Diameter：450mm
• Blade Materials：SKD11,D2,DC53
• Gear Box：Guomao or Boneng
• Bearing：Heavy Duty Bearing
• Motor Brand：Simo,Wannan,Siemens,Weg
• Voltage：According to Customers
• Shredder Rotating Speed：80rpm
• Crusher Rotary Speed：600rpm
• Screen Size：8-16 mm
• Main Electric Element：Schneiders, Siemens
• Capacity：1000-1500 Kg,Hr
• Weight：16000 Kg
• Transport Package：Wooden Case
• Specification：XNC1200
• Trademark：FAMOUS
• Origin：China
• HS Code：84778000
• Production Capacity：1set,Month

Basic Info.

Model NO. XNC1200 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, UL, SGS Shredding Room 1200*600mm Shredder Rotor Diameter 400mm Crusher Rotor Diameter 450mm Blade Materials SKD11/D2/DC53 Gear Box Guomao or Boneng Bearing Heavy Duty Bearing Motor Brand Simo/Wannan/Siemens/Weg Voltage According to Customers Shredder Rotating Speed 80rpm Crusher Rotary Speed 600rpm Screen Size 8-16 mm Main Electric Element Schneiders/ Siemens Capacity 1000-1500 Kg/Hr Weight 16000 Kg Transport Package Wooden Case Specification XNC1200 Trademark FAMOUS Origin China HS Code 84778000 Production Capacity 1set/Month

Product Description

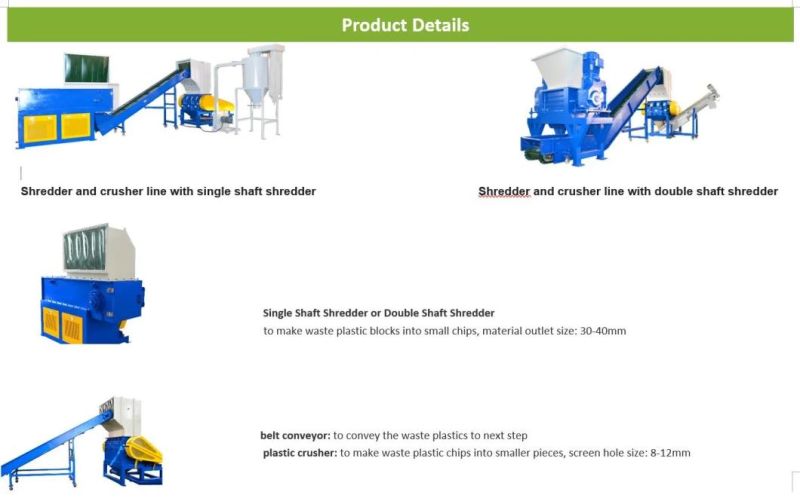

Plastic Shredder and Crusher Line Machine
Product Description:
This shredder and crusher line machine is our company new design. raw material goes into crusher machine after single shaft shredding machine. It used for the die material, big block material, plastic pipe, wood, barrel and other plastic material. It can reduce the pressure of the shredder machine, prolong the blades service life. After second crusher, the material can be crushed into smaller pieces and increase the final output.
machine feature and function:
1. Safety Devices in line with CE certification.
2. The hydraulic pusher against the rotor.
3. Various Screen size for different material.

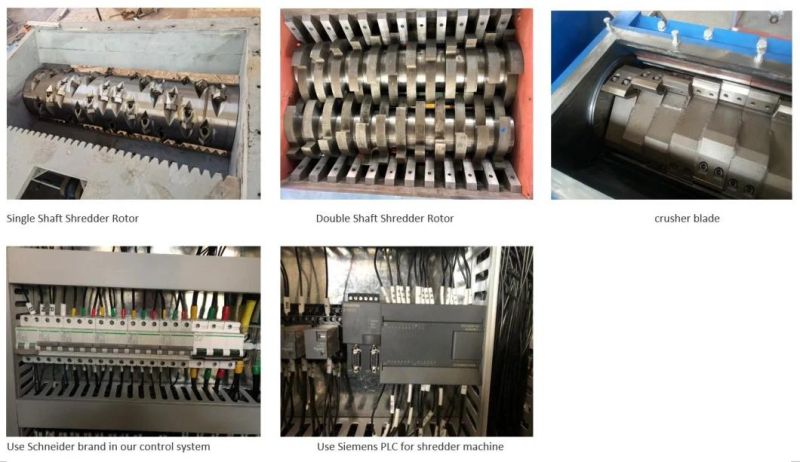

4. Various Rotating blade for processing different material. Blades are made from hardened SKD-11 steel. The Blades can be turned 4 times before it damage.
5. Absorbs vibrations caused by the shredding of the material. this protects the machine and all parts in the machine.
6. Protective bearing covers to avoid dust, waste powder entering the bearing house, also grease points to release oil at intervals to increase service life.
7. The Hydraulic ram pressure and timing can be adjusted to fit with different material. The machine can be fitted with blower and silo.
Suitable Products:
This machine can shred plastic lumps, barrels, pipes, wood, wood pallet, big block material, plastic container, plastic chair, plastic pallet, woven bags, jumbo bags, cable etc.
Product Parameters:

Model	Stationary Blades	Rotating Blades	Chamber Dimension	Power	Mesh Size
XNC600	shredder(2pcs)+crusher (2*1pcs)	shredder(26pcs)+crusher(3*5pcs)	280 mm	22kw+22kw	8-16 mm
XNC800	shredder (2pcs)+crusher (2*2pcs)	shredder(34pcs)+crusher(3*8pcs)	400 mm	45kw +37kw	8-16 mm
XNC1000	shredder (2pcs)+crusher (2*2pcs)	shredder(48pcs)+crusher(3*2pcs)	400 mm	55kw+55kw	8-16 mm
XNC1200	shredder (2pcs)+crusher (2*2pcs)	shredder(68pcs)+crusher(5*2pcs)	400 mm	75kw +75kw	8-16 mm

Note: The above technical parameters is only for your consideration, real technical parameters of shredder machine will be different
based on shredding different material requirements, please call us for more information before purchasing.



Our Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request. We will tell you the tracking number after delivery.
Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.

Q: Are you a factory or a trading company?

A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 30 years, our factory is in Zhangjiagang city which is near shanghai and wuxi.

Q: Do you have any certifications?

A: Yes, we have ISO, CE, SGS.

Q: What's your guarantee or the warranty of the quality if we buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: When can I get my machine after I paid?

A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: How to install my machines when it arrives? how much the cost?

A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have
problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory.
Customer pay for visa, round air tickets, accommodation and USD100/day/person.

Q:How long time for installation?

A:According your machines order, we will send one or two engineers to your plant, it will take about 15 days to 30 days.

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price.


IF YOU WOULD LIKE TO KNOW MORE INFORMATION ABOUT US, PLEASE DO NOT HESITATE TO CONTACT WITH ME.
