• Model NO.：SJSZ 80,156
• Customized：Customized
• Condition：New
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Type：Sheet Extruder
• Screw：Twin-Screw
• Plastic Processed：WPC
• Feeding Mode：One Feed
• Assembly Structure：Separate Type Extruder
• Transport Package：Machine Covered by PE Film; Mould in Wooden Case
• Specification：Follow Customers′ Need
• Trademark：WEIER
• Origin：China
• HS Code：84772090
• Production Capacity：20 Units Per Month

Basic Info.

Model NO. SJSZ 80/156 Customized Customized Condition New Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Type Sheet Extruder Screw Twin-Screw Plastic Processed WPC Feeding Mode One Feed Assembly Structure Separate Type Extruder Transport Package Machine Covered by PE Film; Mould in Wooden Case Specification Follow Customers′ Need Trademark WEIER Origin China HS Code 84772090 Production Capacity 20 Units Per Month

Product Description

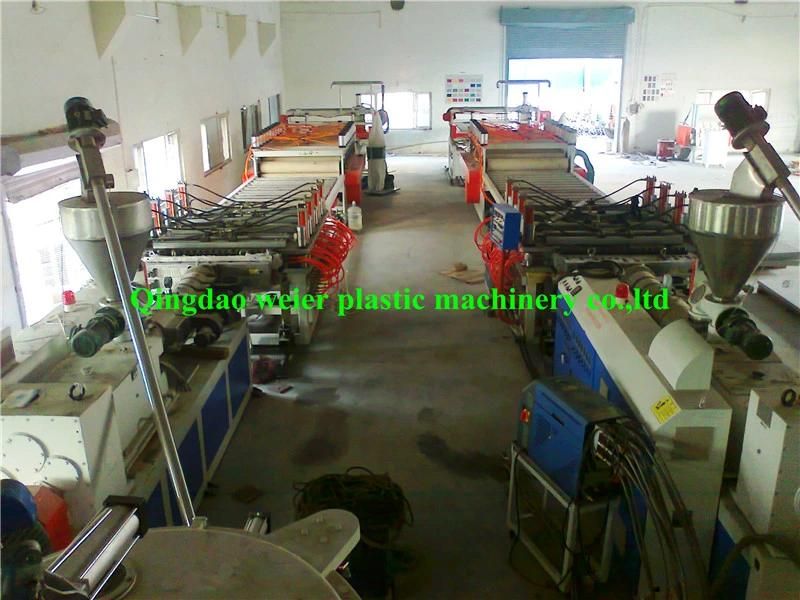

PVC Foam Board Line with PLC Control

1220mm high strength Construction Formwork making machine/furniture board production line/WPC foam board machine


The wood-plastic construction template is a new type of template to replace steel templates and bamboo plastic sheet. With light weight, impact strength, convenient assembling, high turnover, smooth surface, no moisture, no mildew, acid, does not crack, WIDTH, less joints, sawing, nailing, can be processed into any length, and many other advantages. Can be repeatedly recycled more than 20 times, the price is far lower than the current construction industry to use bamboo template, and has excellent flame retardant properties, from the self-extinguishing of fire, smoke-free, without any gas. The new generation of safe green energy-saving products.

1) Size: Depends on client

2) Color: Yellow, strawberry red, brown, brownish red, silver gray, dark...6 colors available.

3) Material:
30% HDPE or PVC(Grade A Recycled )
60% bamboo/wood fiber (Professionally treated dry bamboo/wood fiber)
10% chemical additives. (wood texture strong, resistant to abrasion, impact resistance, high-density, waterproof, moisture-proof, anti-termite, easy installation. Etc. )

4 )Main feature:
1. High recyclable, eco-friendly, saving forest resources
2. With the look of the natural wood but less timber problems
3. Moisture/Water resistant, less rotten, proven under salt water condition
4. Barefoot friendly, anti-slip, less cracking, less warping,
5. Requires no painting, no glue, low maintenance
6. Weather resistant, suitable from minus - 40 to 60 centigrade degree
7. Well done of Termites, insects, and moldy-proof
8. Available in different colors
9. Easy to install and clean

Items	Requirements
Product size	1220mm width, length can cut at any length
Product thickness	5-20mm (ABA three layer, B is foamed layer, A is unfoaming layer)
Product application	Furniture board, kitchen cabinet, construction formwork
Density	0.45-0.8ton/m3
Raw material	PVC+wood+caco3+chemical additives
Finishing surface	Laminating, hot stamping, printing, painting
Production capacity	250-400kg/h
