• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Wooden Case
• Origin：Jiangsu, Tongzhou
• HS Code：8477101090

Basic Info.

Computerized Computerized Certification CE, ISO9001:2008 Transport Package Wooden Case Origin Jiangsu, Tongzhou HS Code 8477101090

Product Description

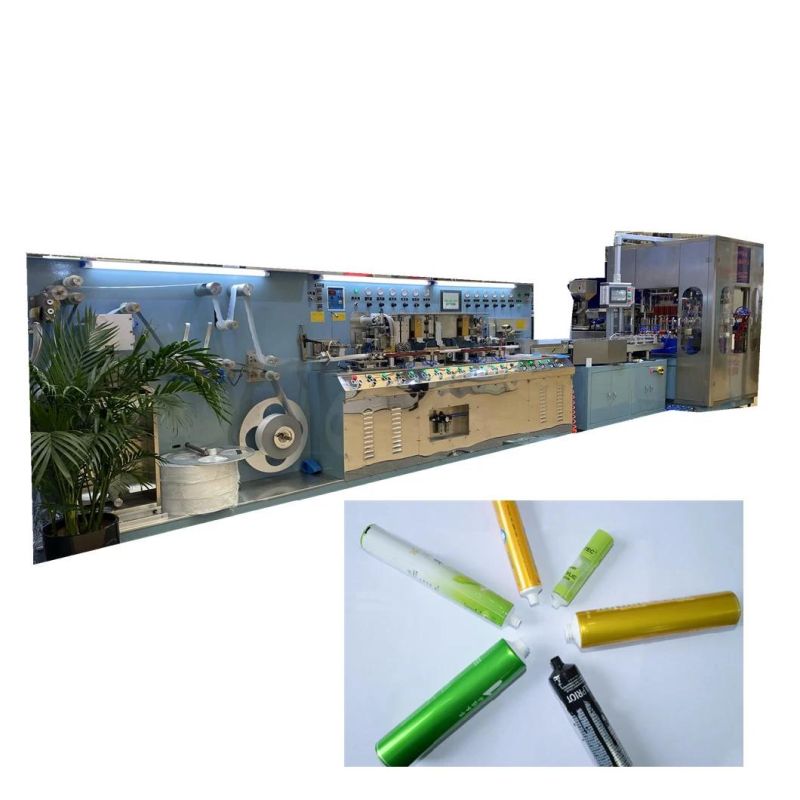

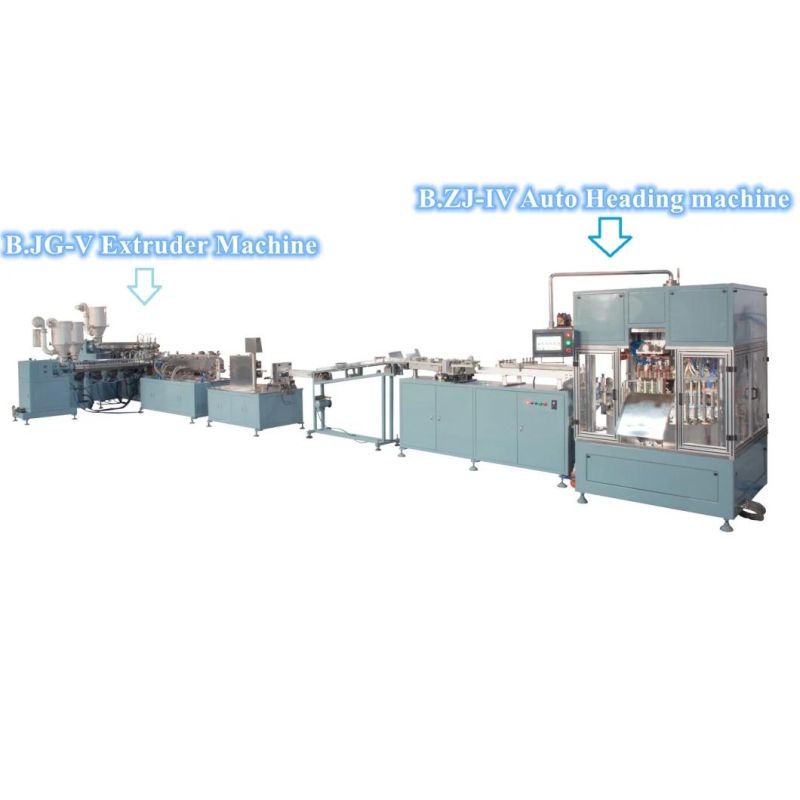

B.ZJ-IV Automatic Shoulder Injecting Machine (Automatic)

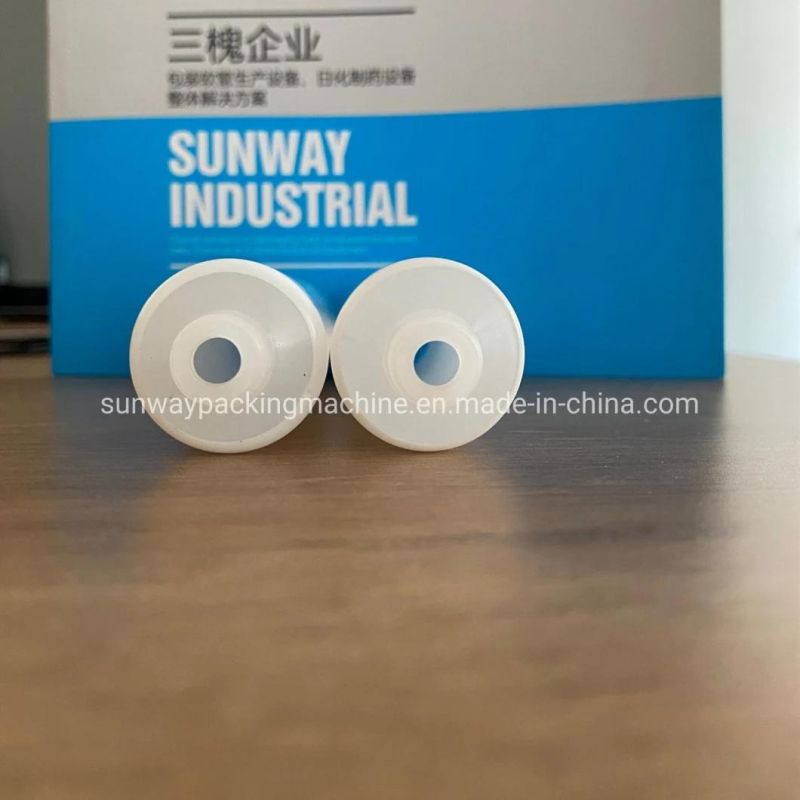

B·ZJ-IV 120pcs/min 4-head Automatic Heading Machine, four heads automatic heading machine, high speed automatic shoulder injecting heading machine, automatic heading machine, automatic tube shouder injection machine researched and manufactured in this year, which is a new type machine of advanced science and technology specially for shoulder injection. Its all operation is controlled by PLC of large-scale through a people-machine interface of touch screen. By plastic injecting, spitting, squeezing and welding, it can make a plastic shoulder for plastic tubes and aluminum-plastic tubes. And the shoulder is smooth, beautiful and firm. This machine mainly includes precise clearance apparatus, automatic tube-feeding device, fixed volume injecting device, plastic spitting device, mould-closing forming device, mold separating device, automatic tube-releasing device , automatic material-feeding device and cushion container. The main two parts of this machine have been awarded the national patents.Advantage:B·ZJ-IV 100pcs/min 4-head Automatic Heading Machine, four heads automatic heading machine, high speed automatic shoulder injecting heading machine, automatic heading machine, automatic tube shouder injection machine round shoulder which without injectoin port and closing line. Also no wasting materials during the production, full new materials can make shoulder looks more beautiful.
Main Technical Parameters:

Power Supply	380V/50Hz
Power	10kW
Air Pressure	≥6Bar
Air Consumption	≥0.5m3
Dimensions	4000×2800×2500mm
Tube Diameter	Φ19-Φ50mm
Tube Length	55-200mm
Productivity	120pcs/min
Weight	3500kg

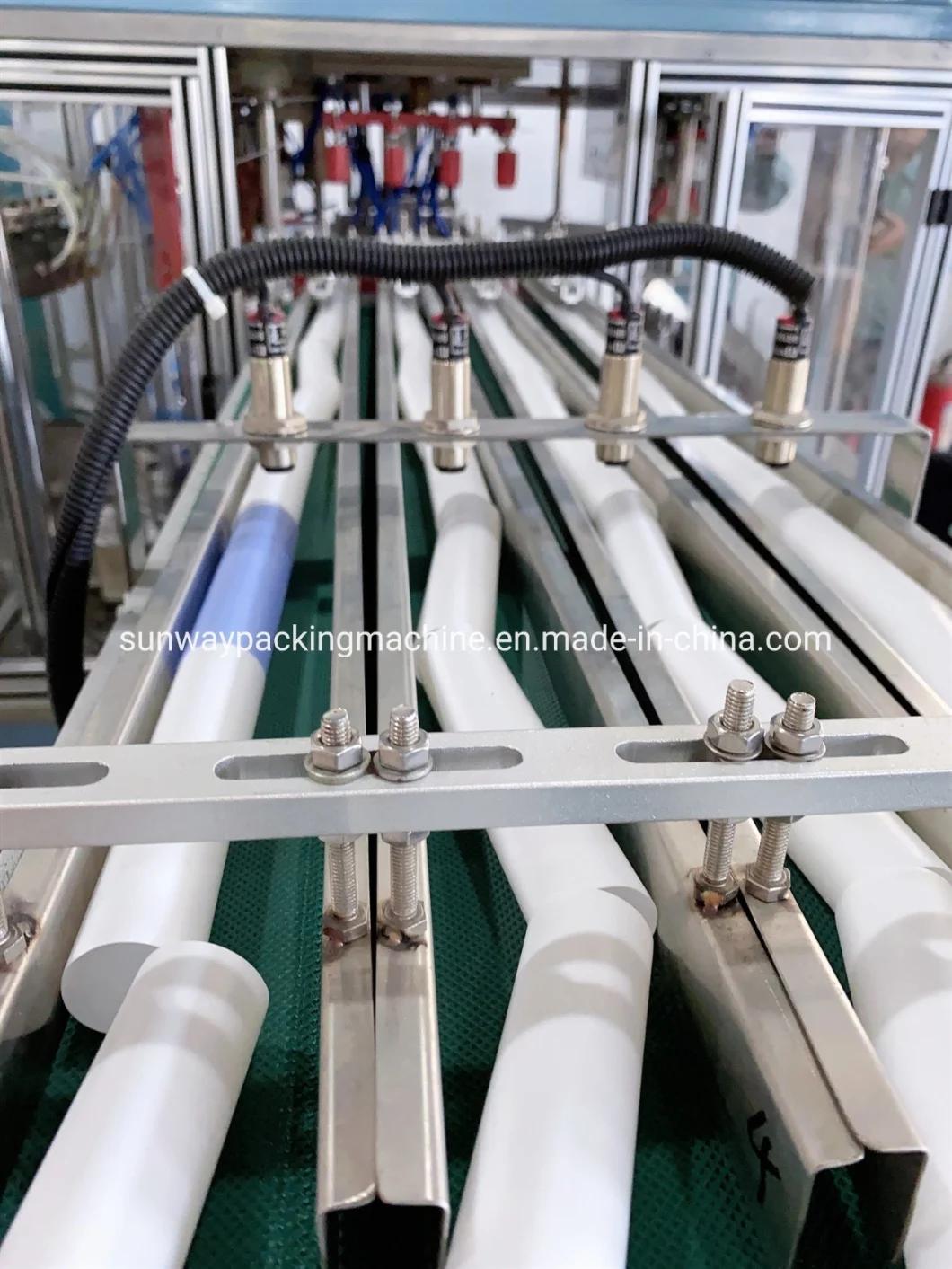

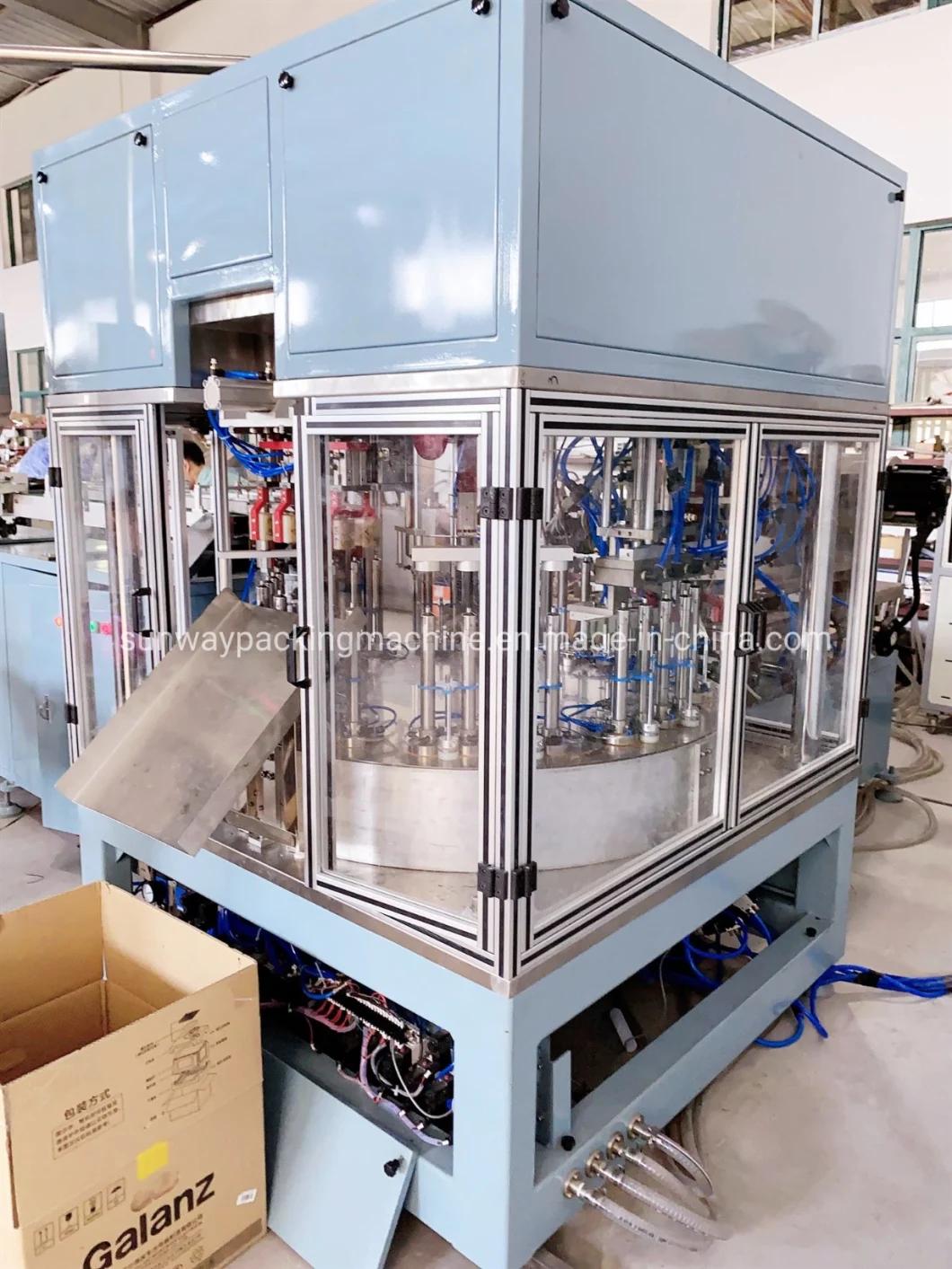

Machine details
