PVC Hose Making Machine with CE ISO TUV SGS
QINGDAO DING KUN PLASTIC MACHINERY CO., LTD.- Screw No.：Single-screw
- Automation：Automatic
Base Info
- Model NO.：SJ65,30
- Computerized：Non-Computerized
- Certification：CE, ISO9001:2008, TUV
- Customized：Customized
- Condition：New
- Plastic Machine：PVC Hose Making Machine with CE ISO TUV SGS
- Main Extruder：Sj65,30
- Pipe Diameter：12-50mm
- Main Motor：Siemens
- Output Capacity：40-80kg,Hr
- Total Installed Power：About 65kw
- Overall Dimension：About 18m*3.5m*2.5m
- Raw Material：PVC Granules + Polyester Thread
- Power Supply：380V 3phase 50Hz or as Your Demand
- Operator：1-2 Persons Per Shift

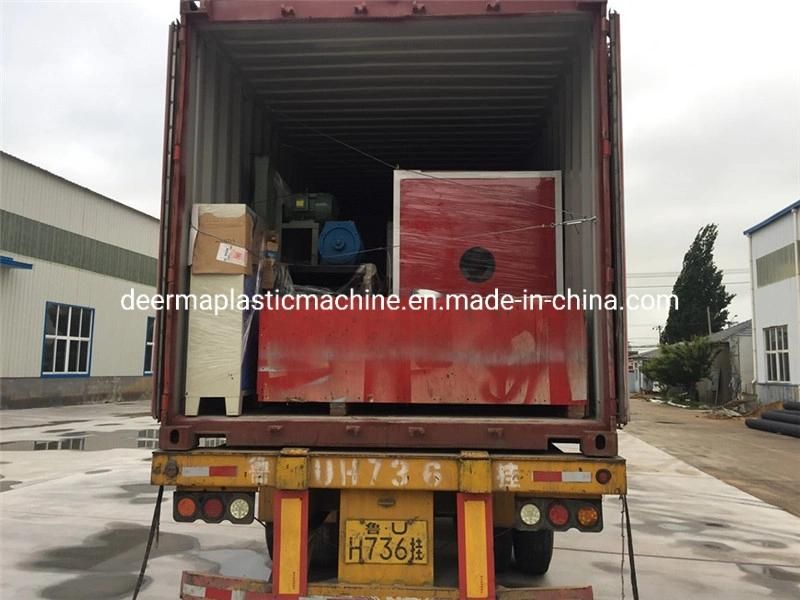

- Transport Package：Mold: Wooden Package. Outside: Stretch Film
- Specification：SJ65,30
- Trademark：DEERMA
- Origin：Qingdao of Shandong
- HS Code：8477209000
- Production Capacity：40-80kg,Hr
Description
Overview
Product ParametersModel SJ45/30 SJ65/30 PVC Hose Diameter range(mm) 6-16mm 12-50mm Capacity(kg/h) 20-40 40-80 Installed power(kw) 35 50 Operator 1-2 persons per shift Material of Hose PVC Granules + Polyester thread

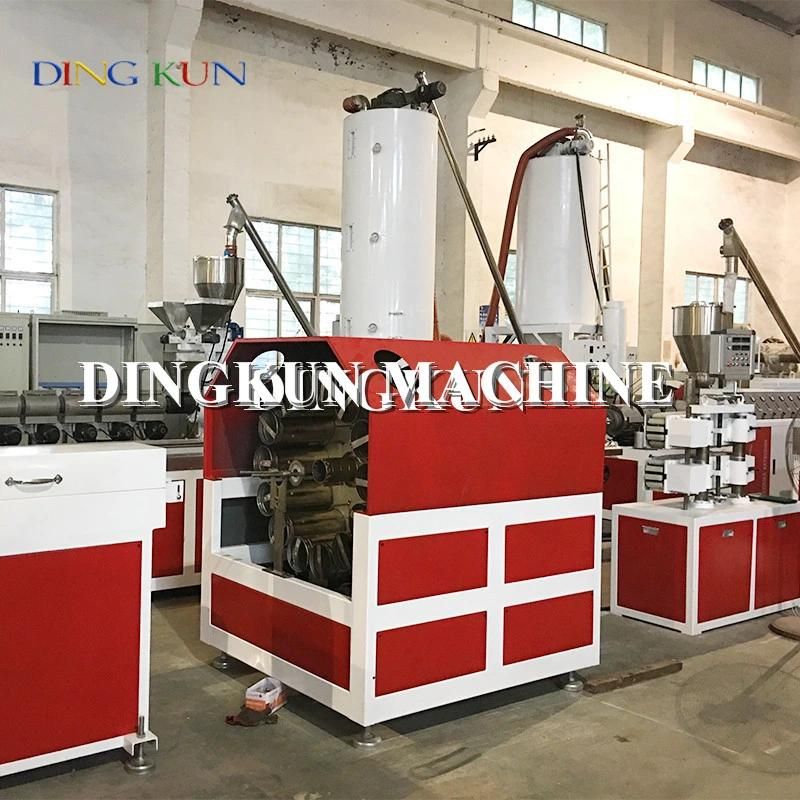

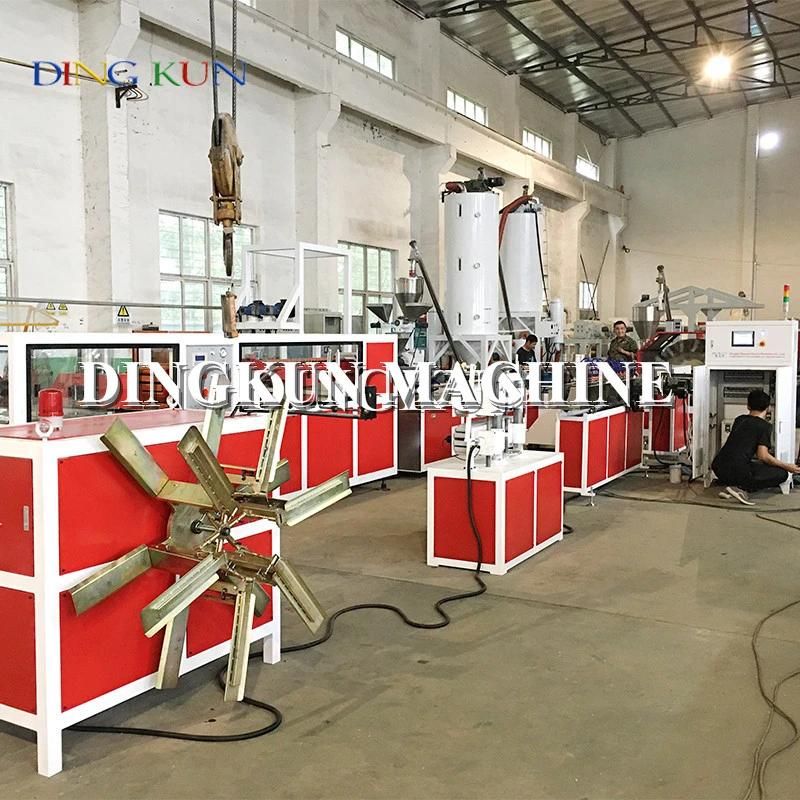

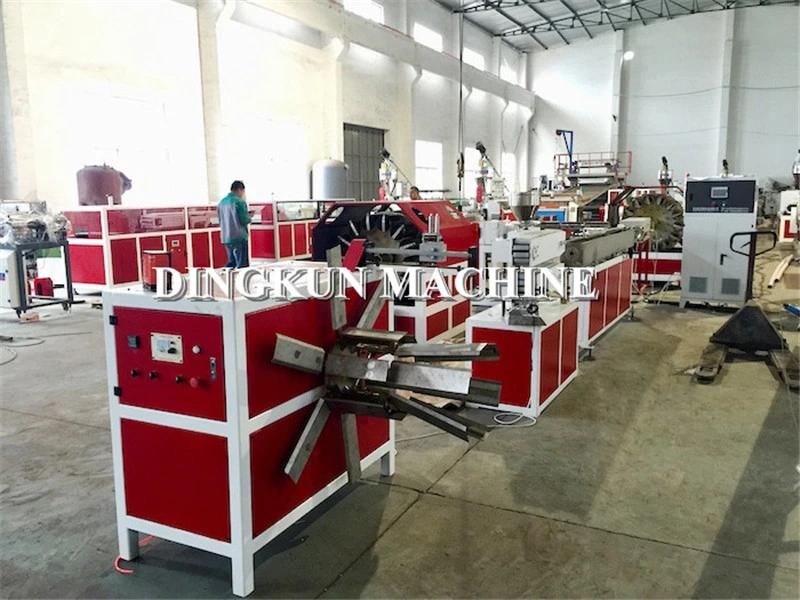

Main CompositionItem Quantity SJ65/30 Single Screw Extruder Two sets SJ25/25 Single screw extruder for marking line One set Die and Mold One set Stainless steel cooling tank Two sets Braider Machine One set Drying tank One set Haul-off unit Two sets Winder One set

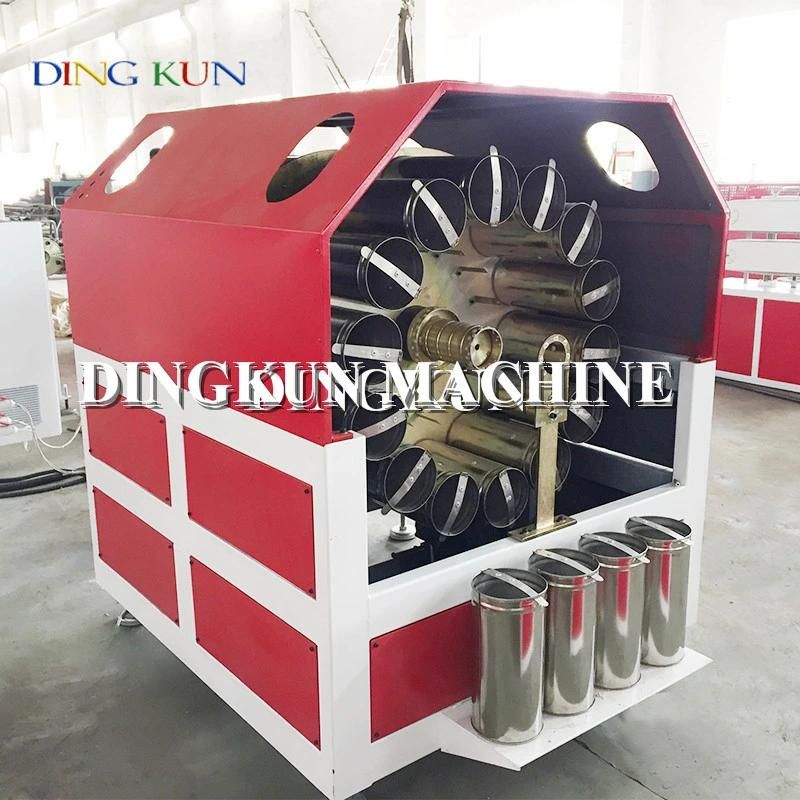

Technical Information of PVC Garden Hose MachineItem Description Data 1 Single Screw Extruder 2 sets Screw and Barrel Material 38CrMoAlA Treatment of Screw and Barrel Surface Nitriding Heating Mode of Screw Barrel Cast-aluminium Heating Circles Cooling Mode of Barrel Air Blower Main Motor Power Speed Adjusting ABB Frequency Inverter Gearbox Reducer Hardening Gear Surface, Low Noise 2 Die Head 1 set or According to Customer's Need 3 Water Cooling Tanks 2 sets Tank Material Excellent Stainless Steel Tank Length 2000-3000mm Tank Thickness 3mm Water Pump 2 sets 4 Fiber Winding Machine 1 set Motor 2.2KW Speed Adjusting Mode ABB Inverter 5 Hauling off Machine 2 sets Motor Power 1.5kw*2 No.of Belt 2 *2 sets Speed Control A Inverter 6 Twin Position Coiler 1 set 7 Main Electrical Components SIEMENS ,Omron, ABB, Schneider etc.
DEERMA CertificationCertification Certified By Certificate No. ISO 9001:2008 Beijing Hangxie Certification Center Co.,Ltd.,CNAS 03413Q21640R1M CE European Inspection and Certification Company S.A. CN.CE.0680-10/10 TUV TÜV Rheinland 7467484_P+T SGS SGS-CSTC Standards Technical Services Co.,Ltd QIP-ASR155278
2. The round-trip air ticket, food and accommodation is for the buyer. Also including paid the salary of engineer, and $80 dollars per day.
3. The engineer will be in buyer's factory to help the worker to use the machine, and free teach.
Equipment warranty
1. About the equipment, Deerma promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will freel
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
Technical Parameters
Main Composition
Technical Information of PVC Garden Hose Machine
DEERMA Certification
After Sales Service
Equipment installation and debugging
1. After the arrival of the equipment to the buyer's country, Seller's will be send engineer to the buyer's factory in 15 days to help installment and maintenance2. The round-trip air ticket, food and accommodation is for the buyer. Also including paid the salary of engineer, and $80 dollars per day.
3. The engineer will be in buyer's factory to help the worker to use the machine, and free teach.
Equipment warranty
1. About the equipment, Deerma promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will freel
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
