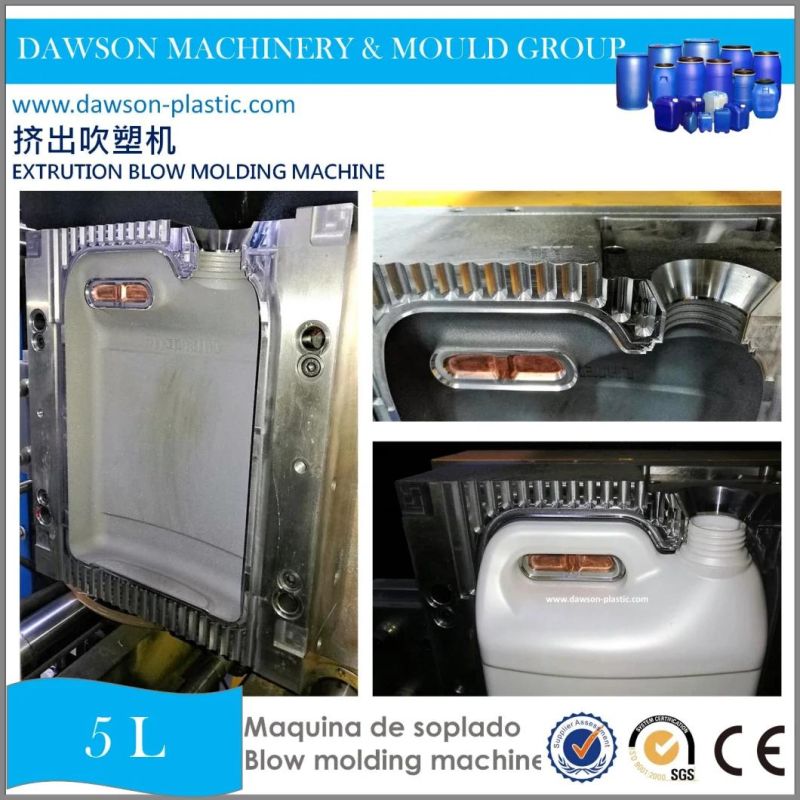

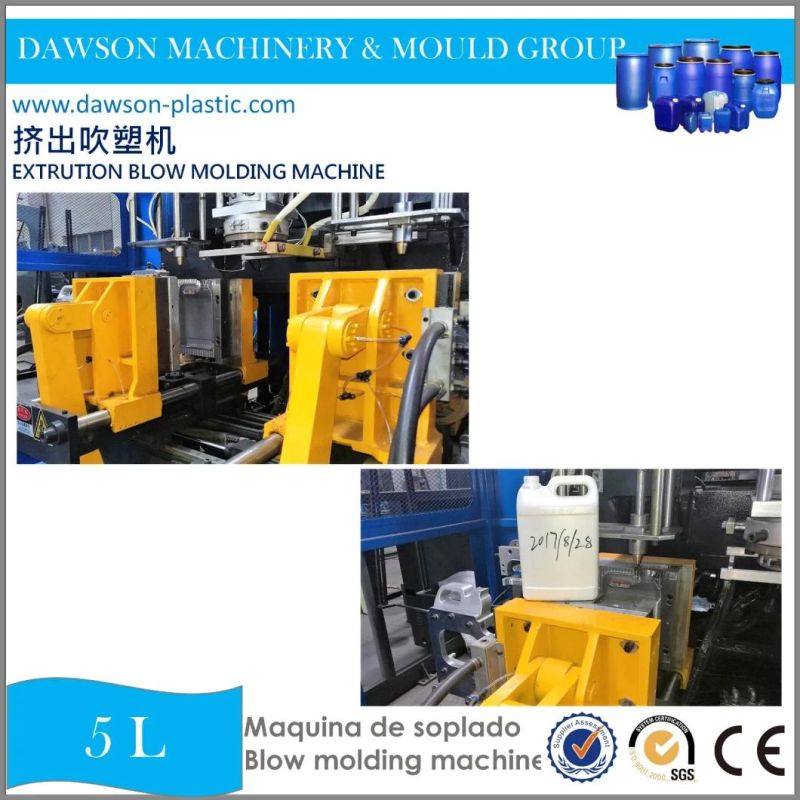

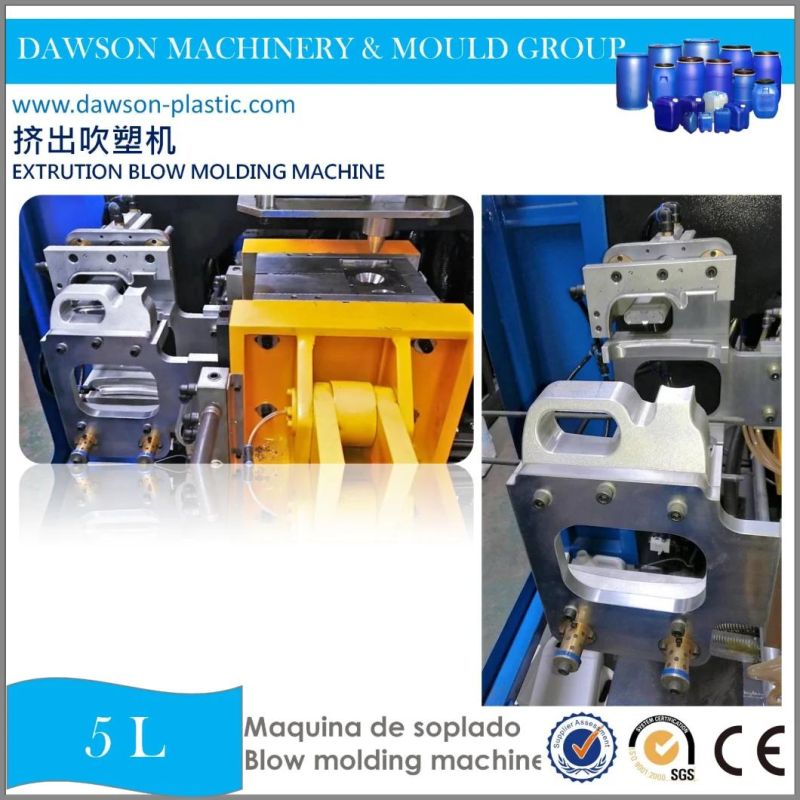

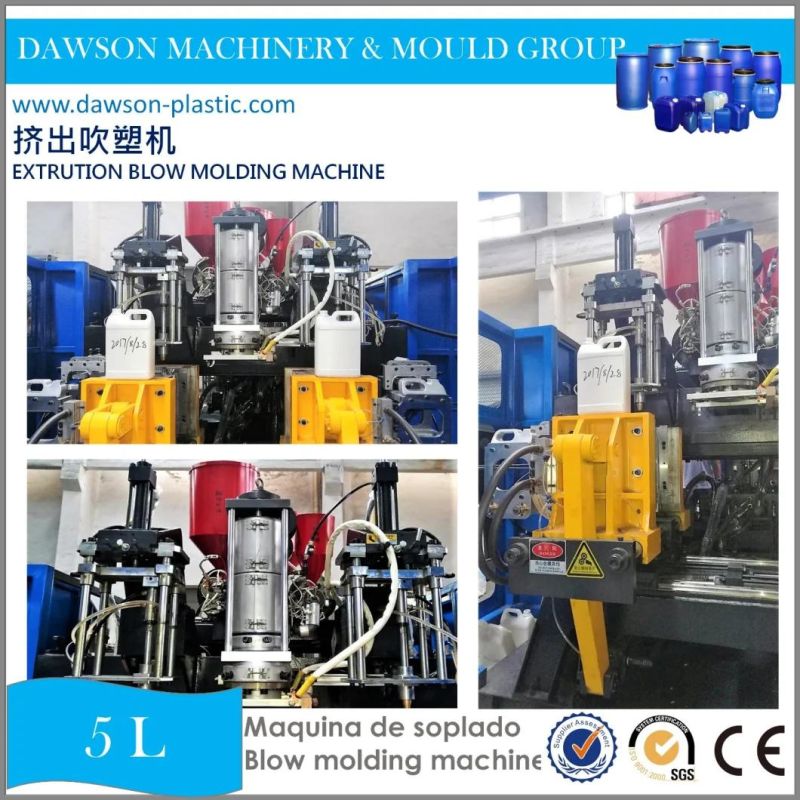

5L HDPE Pharmaceutical Bottles Automatic Plastic Injection Molding Machine
Zhangjiagang Dawson Machine Co., Ltd.- Type：Extrusion Blow Molding Machine
- Automatic Grade：Automatic
- Station Number：Single
- Material：HDPE
- Max Product Volume：5liters
- Screw Diameter：70mm
Base Info
- Model NO.：TCII-1
- Screw L/D Ratio：24 L,D
- Screw Drive Power：18.5 Kw
- Screw Heating Capacity：6 Kw
- Heating Zone：3 Zones
- Machine Weight：5.5ton
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
- Transport Package：Film Packing
- Specification：TCII-1
- Trademark：Dawson
- Origin：Zhangjiagang, Jiangsu, China
- HS Code：8477301000
- Production Capacity：160-170PCS,H
Description
Basic Info.
Model NO. TCII-1 Screw L/D Ratio 24 L/D Screw Drive Power 18.5 Kw Screw Heating Capacity 6 Kw Heating Zone 3 Zones Machine Weight 5.5ton Raw Material HDPE Making Method of Parison Extrusion-Blow Molding Automation Automatic Computerized Computerized Certification CE Transport Package Film Packing Specification TCII-1 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity 160-170PCS/HProduct Description
TCII-1 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 3.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Max. Product volume | 3.5Liters |
| Out put capacities | 400~600pcs/h |
| Screw diameter | 55mm |
| Screw L/D ratio | 24L/d |
| Screw drive power | 10kw |
| Screw heating capacity | 2.6kw |
| Heating zones | 3zones |
| HDPE output | 35kg/h |
| Oil pump drive power | 4.8kw |
| Clamping force | 32kn |
| Mold max size | 148-568mm |
| Mold stroke | 330*370mm |
| Max die diameter | 160mm |
| Blowing pressure | 0.6mpa |
| Air volume | 0.4m³/min |
| Cooling water pressure | 0.3mpa |
| Water consumption | 50L/min |
| Machine size | 3.1*1.5*2.7m |
| Machine weight | 5.5ton |
