• Model NO.：HSD
• Pipe Range：63-250mm
• Usage：Industrial
• Transport Package：Standard Package for Export
• Specification：ISO9001: 2008
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：63-250mm

Basic Info.

Model NO. HSD Pipe Range 63-250mm Usage Industrial Transport Package Standard Package for Export Specification ISO9001: 2008 Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 63-250mm

Product Description

                                                Plastic Extruder Pipe Extrusion Machine

Application:
Water supply pipe machine is applicable for extrusion of PE, PP pipe line

Technical parameters of the whole line:
  Available material:         HDPE
  Pipe diameter range:        F160 - F450 mm
  Max output:                 SJ-90/33: 500kg/h;SJ-25/25:8kg/h
  Control mode:             PLC (Siemens)
  Central height:            1250 mm
  Consumption of cooling water:    ~0.5m3/min(≤20ºC,0.3Mpa)
  Requirement of compressed air:    ~0.4m3/min , >0.5Mpa
  Dimension:    49m × 3m × 3m (LWH)

Control system:
The machine production line is controlled by the PLC computer, easy and convenient to operate.


Structyre:

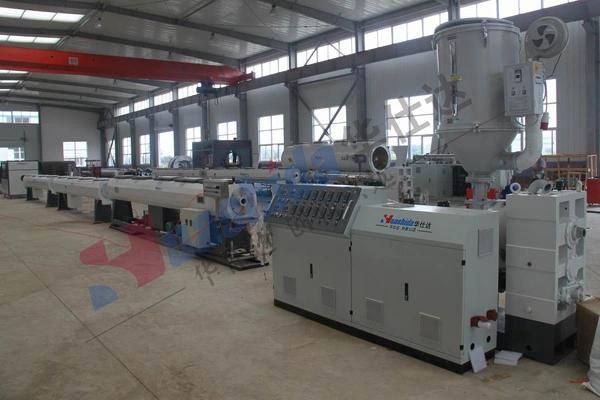

This water supply pipe machine mainly includes single screw extruder, molds, vacuum calibrating water tank, spray water cooling tank, haul-off machine, cutting machine and bracket.

1. Single Screw Extruder
Single screw extruder is composed of AC motor, hard toothed surface reduction gear, extruding system, heating and cooling system, and electrical controlling part. AC motor transfer the power to reduction gearbox via V-belt wheel and make screw rotate at certain speed to adapt to extruding all kinds of plastics.

2. Die-Head
Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings. The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting. The uniformity of pipe wall thickness can be adjusted by bolts. The copper calibrating sleeve fixed in die-head is mainly used to cool down the fresh pipe and to calibrate the pipe outer diameter.

3. Vacuum Forming Tank
Vacuum forming tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, back and forth mobile device. When it is at work, the vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to realize calibrating the pipe outer diameter. Spray cooling system is used to cool down the extruded pipe by water. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.


4. Water Cooling Tank
Water cooling tank is mainly composed of frame, stainless steel tank, and spray cooling system. Spray cooling system is used to cool down the pipe further and to realize cooling completely and forming.

5. Caterpillar Haul-off Machine
Haul-off machine is mainly composed of driving device, haul-off chain caterpillar, clamping structure, adjusting system, side plate, and foundation bed. Haul-off caterpillars are AC motor driven and adopt frequency control of speed to adapt to different pipes extruding speed. It is also equipped with automatic length measuring device to realize cutter cutting at set length.

6. No-Dust Cutter
It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous mobile device, and frame.

7. Discharging Frame
The table surface is made of stainless steel. It adopts pneumatic overturn and discharging automatically.

Technical parameters:

Style	SPEG-250
Pipe Size(mm)	Φ 63-Φ 250
Extrusion Capacity(KG/H)	450
Total installation Power(KW)	210
Overall Dimension(M)	36x1.8x3
Total Weight(T)	14.5

The above date can be used as a reference, if you have any special requirements, you can always contact us.
