• Model NO.：SJ
• Computerized：Non-Computerized
• Machine Weight：2.2 T
• Certification：CE, ISO9001:2008
• Max. Extrusion Output (Kg/H)：30-50kg,H
• Film Thickness(mm)：0.006-0.10
• Main Motor：Siemens Brand
• Die Size(mm)：50,100
• Temperature Controller：Omron Brand
• Guarantee：One Year
• Delivery Time：20 Days
• Transport Package：Film Package
• Specification：SGS
• Trademark：YUNBANG
• Origin：China(Mainland)
• HS Code：847790000
• Production Capacity：15 Sets,Months

Basic Info.

Model NO. SJ Computerized Non-Computerized Machine Weight 2.2 T Certification CE, ISO9001:2008 Max. Extrusion Output (Kg/H) 30-50kg/H Film Thickness(mm) 0.006-0.10 Main Motor Siemens Brand Die Size(mm) 50/100 Temperature Controller Omron Brand Guarantee One Year Delivery Time 20 Days Transport Package Film Package Specification SGS Trademark YUNBANG Origin China(Mainland) HS Code 847790000 Production Capacity 15 Sets/Months

Product Description

Key Features

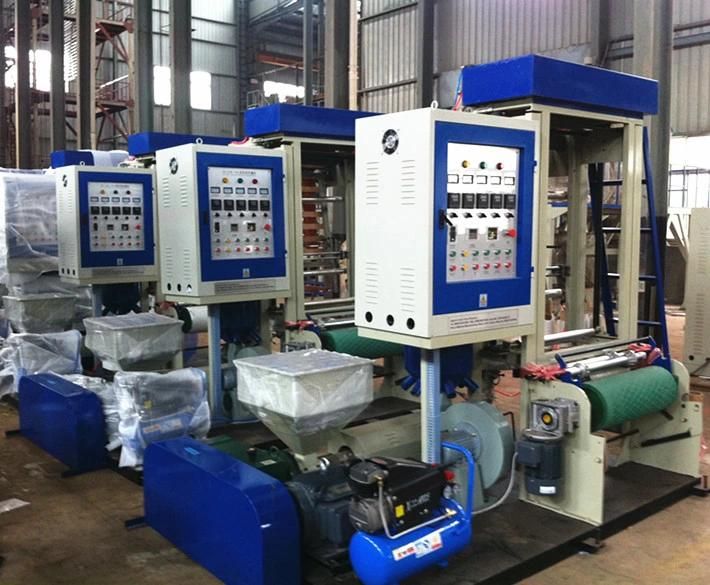

Mini blown film extruder

1. For producing small size HDPE  LDPE film

2. Compact design makes it Space-saving and Ready-to-use

3.is extremely compact, easy to install, user-friendly and productive for film and bag makers.




Machine Advantages

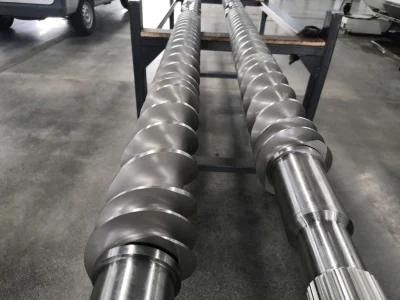

The Mini Film Blowing machine is adjust and operate freely within the range of 600mm accordance with the technological demand of different materials, and having gusset for making vest type bag. The extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in precision way. Hence it is sound in hardness,durable in corrosion resistance.The specially-designed screw is of sound quality in plasticizing,which helps increase the production capacity,it is applied to blowing the plastic films like low density polytene(LDPE).High density polytene(HDPE) and linear low density polytene(LLDPE). It is widely applied to producing the packing bags for foodstuff clothing,rubbish bag and vest ones.


Machine Parameters

Model	sj-45	sj-50
Diameter of Screw(mm)	φ 45	φ 50
Max. Width of Folded Film (mm)	100-400	200-600
Single-face Thickness of Film(mm)	0.01-0.10	0.01-0.10
Max. Extrusion(kg/h)	35	50
L/D	28: 1	28: 1
Power of Main Motor(KW)	7.5-11	11-15
Power of Traction Motor(KW)	1.1	1.1
Heating Power(KW)	11	11
Overall Dimension (mm)	3800× 1900× 3000	5500× 2100× 3500
Weight(T)	1.5T	2T
