Co-Rotating Plastic Granules Twin Screw Extruder with Water-Ring Filling Pelletizing ...
Nanjing Tengda Machinery Co., Ltd.- After-sales Service：Provide
- Warranty：Gearbox: 3 Years; Extruder: 1 Year
- Type：Plastic Granules Extruder Machine
- Plastic Processed：Any Plastic Granules
- Product Type：Granulating Extruder
- Feeding Mode：Multiple Feed
Base Info
- Model NO.：TDH-75D
- Assembly Structure：Separate Type Extruder
- Screw：Twin-Screw
- Engagement System：Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Name：Plastic Twin Screw Extruder Machine
- Motor：Siemens, Weg
- Inverter：ABB, Toshiba, FUJI
- Output：250~600(According to Different Material)
- Switches：France Schneider
- Temperature Controller：Japan Omron
- Certifications：CE, ISO, TUV, 30 Patents
- Item：Plastic Twin Screw Extruder
- Processing Material：PP, PE, ABS, PS, PA etc. Modification,Recycling
- Motor Power：Decided by The Output You Need
- Material Formula：Technical Instruments
- Overseas Service：Provide
- Transport Package：Wooden Box, Bubble Film, Wrapping Film
- Specification：132kW
- Trademark：TENGDA
- Origin：Jiangsu, China
- Production Capacity：2500kg-3000kg
Description

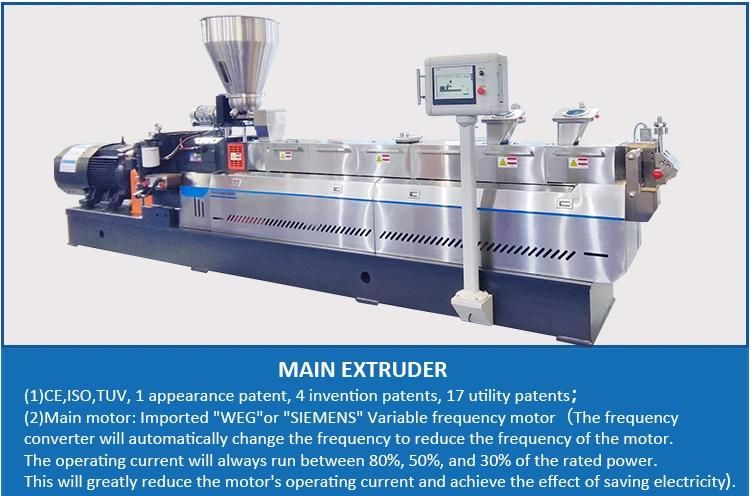

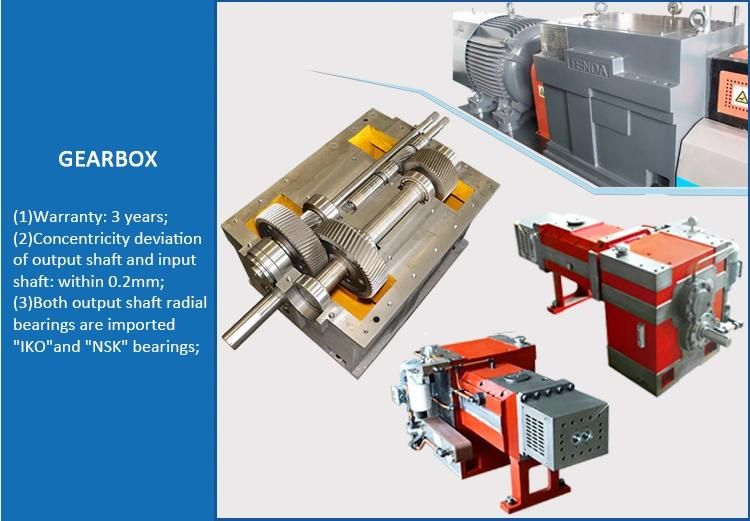

Our machine features:1. Twin screw main extruder: Main motor: Imported "WEG"or "SIEMENS" Variable frequency motor(The frequency converter will automatically change the frequency to reduce the frequency of the motor. The operating current will always run between 80%, 50%, and 30% of the rated power. This will greatly reduce the motor's operating current and achieve the effect of saving electricity).2. Gearbox: Warranty: 3 years; (2)Concentricity deviation of output shaft and input shaft: within 0.2mm; (3)Both output shaft radial bearings are imported "IKO"and "NSK" bearings;

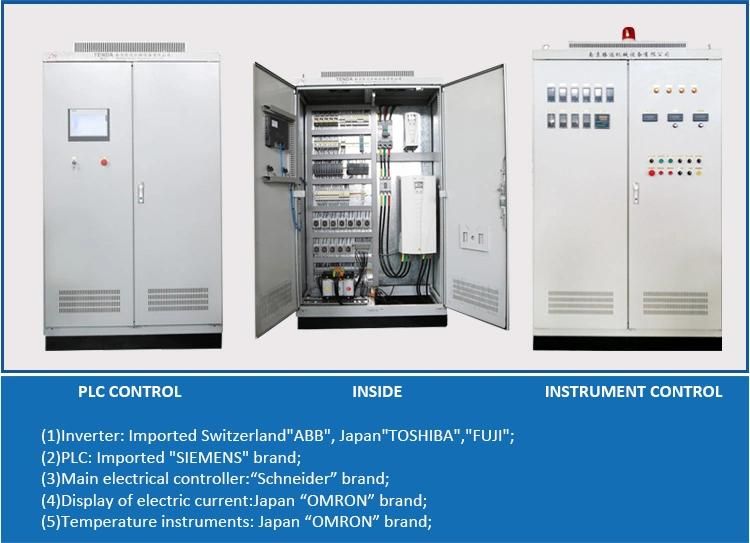

3. Electric cabinet box: (1)Inverter: Imported Switzerland"ABB", Japan"TOSHIBA","FUJI"; (2)PLC: Imported "SIEMENS" brand; (3)Main electrical controller:"Schneider" brand; (4)Display of electric current:Japan "OMRON" brand; (5)Temperature instruments: Japan "OMRON" brand;
4. Twin-screw Barrel
Bimetal wear-resistant and corrosion-resistant material, the base material is 45# steel, after multiple forging, quenching and tempering treatment; the cylinder is inlaid with α-101 wear-resistant and corrosion-resistant alloy bushing, which has better wear resistance and corrosion resistance than general alloy bushings.
5. Screw elements
(1)Material is W6Mo5Cr4V2 (high speed tool steel) with the best wear resistance, the whole adopts vacuum quenching treatment, hardness is 60 ~ 62HRC; (2)Designed by the building block principle, and the screw element and the screw shaft are connected by an involute spline, and the screw combination can be adjusted according to the process requirements; The screw elements are all made by CNC machining center, with good identity and strong process repeat-ability,which is benefit for changing;
6. Screen changer+Die-head: Quick open die-head, convenient and fast, short flow path of the machine head and less material storage can significantly reduce the deterioration of the material's physical properties, yellowing, black spots and other defects;Our machine pictures:
Our certifications:Our company was awarded as Jiangsu High-tech Enterprise and National High-tech Enterprise.
Won the title of"2021 Nanjing Gazelle Enterprise". This award represents the recognition by the Municipal Development and Reform Commission of Nanjing Tengda's prosperous and healthy development over the years and its achievements.
Our company has passed ISO:9001 international quality management system certification,EU CE certification, TUV Rheinland certification, and has more than 30 patents.
Our company:
1. Established in 2009; Over ten years experience to produce twin screw extruder compounding and pelletizing system;
2. High-tech and rich experience in almost formula of material; we can help you on business.
3. Exported to many countries all over the world;
4. We focus on manufacturing high-end extrusion machine. Since its inception for ten years, our company has been known for good reliability, won the trust of new and old customers, and insisted on creating the greatest value to customers. "Tengda Machinery" will create excellent quality plastic machines, and be dedicated to serving you forever;
5. Enterprise Mission: Let every user of our machine use the peace of mind, rest assured, worries, create a win-win model, and continue to develop for at least 192 years,three centuries, the same dream!
6. Enterprise Version: Constantly surpass, committed to become an internationally competitive national enterprise. Let the plastic granules produced by Tengda Machinery extensively applied in every corner of the world, let Tengda become a production source that is indispensable for people's life;
7. Business philosophy: Quality-oriented, Remain true to our original aspiration and keep our mission firmly in mind.

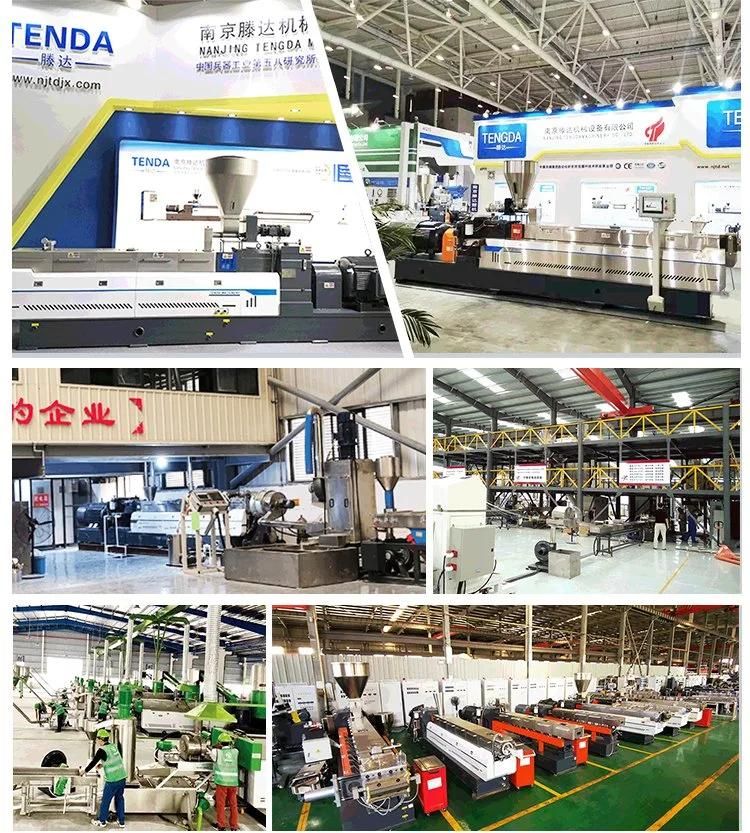

Our customers:
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.We have the technical production team,and the workers are all very experienced.
Q: Why choose you?
A:You can get a very fair price from us and our price can make you beat your competitors in the marke
Q: What kind of certification do you have?
A: Our products have obtained ISO9001 and CE certification,the quality can be guaranteed.We focus on
the field of extrusion machine,and aim to be the best manufacturer of this field.
Q:What's the payment?
A:L/C, T/T, Western Union, Paypal, Money Gram, Cash.
