• Model NO.：SJP92
• Customized：Customized
• Condition：New
• After-sales Service：Best Sale Service
• Processing Material：PVC
• Application：Produce PVC-O Pipes
• Screw Type：Twin Screw
• Feeding Mothed：Dosing Feeding System
• Apply to Pipe Size：90-800mm
• Electric Parts：World Brand
• Transport Package：Woodbox with Film Wrapped
• Specification：90mm~800mm
• Trademark：Faygo
• Origin：Jiangsu Suzhou
• HS Code：84778000
• Production Capacity：100sets Per Month

Basic Info.

Model NO. SJP92 Customized Customized Condition New After-sales Service Best Sale Service Processing Material PVC Application Produce PVC-O Pipes Screw Type Twin Screw Feeding Mothed Dosing Feeding System Apply to Pipe Size 90-800mm Electric Parts World Brand Transport Package Woodbox with Film Wrapped Specification 90mm~800mm Trademark Faygo Origin Jiangsu Suzhou HS Code 84778000 Production Capacity 100sets Per Month

Product Description

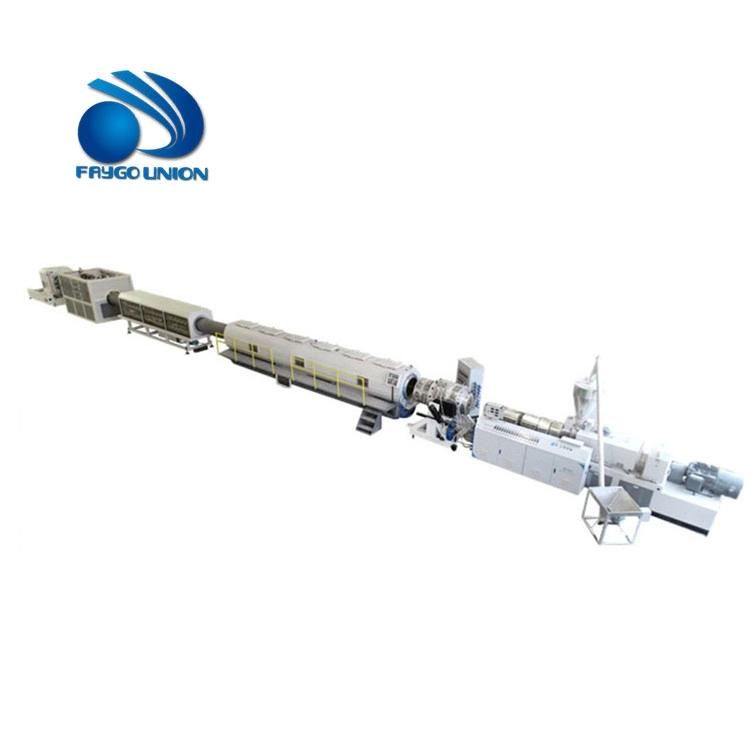

OPVC PVC-O pipe production line



This PVC-O pipe production line use newest techology to make plastic pipes. With special biaxial stretching technology, it can largely reduce the material cost for pipe production, more than 70%. It is become more and more popular now days.

Technical data

Model/data	Pipe diameter	Extruder model	Speed	Max capacity
FP160	75-200mm	LSZ65/132	1.5-5m/min	260kg/h
FP400	200-400mm	LSZ80/156	0.5-1.5m/min	400kg/h
FP630	400-630mm	LSZ92/188	0.1-0.8m/min	650kg/h

PVC-O pipe is the latest evolutionary form of PVC pipe pipe. By using a special orientation process (biaxial stretching technology), stretching and radial stretching, so that the long-chain PVC molecules in the pipe biaxially arranged in order to obtain high strength, high toughness, high impact resistance, crack resistance of the new PVC pipe.

The stretching orientation process of polymer materials is the process of the molecules arranged from disordered to ordered under the action of external force under the condition of temperature between the glass transition temperature and the melting temperature (usually near the softening point). Biaxial stretching is a process in which a material is biaxially stretched to make the strength perpendicular to the the stretched surface of the biaxial stretching that superimposed on the strength of the stretched surface direction, thereby increasing the strength of the material in the direction of the stretched surface.

Compare to normal PVC pipes, the pipe wall thickness of OPVC is very thin, but it can endure high pressure. With PVC-O pipe production line, the client can largely save the material cost.




Company information:



Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.

Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Warmly welcome to visit our factory (next to Shanghai)!
