• Model NO.：SJ-80,156
• Installation Power：150kw
• Machine Dimension：25*3*3
• Product Dimension：5-35mm
• Product Width：up to 1220mm
• Warranty：12months
• Transport Package：Suitable for Sea Shipment
• Specification：CE ISO SGS
• Trademark：Jinfuxin
• Origin：Qingdao
• HS Code：8477800000
• Production Capacity：50sets,Year

ItemQuantitySJSZ80/156 conical twin screw extruder1 setMould(T-Die)1 setCalibration unit1 setCooling bracket1 setHaul-off unit1 setCutting unit1 setStacker1 set
Auxiliary machine
500/1000Mixer500L or 1000 L mixer
(controlled by Inverter)SWP 700 Crusherrotation blades 9 pcs600 GrinderFeeder controlled by ABB inverter, with automatic dust collector.

Conical twin screw extruder
ABB inverter
Siemens contactor
Harden and helical gear. conjoined gearbox, thrust bearing is NSK (Japan)
Motor power: 75KW

Mould (T-Die)
New designed mould, can work for longer time, easy to operate.
Equipped with INDEPENDENT LIFT to remove and reinstall the mould, replace the heavy gantry, and greatly saves space, safer and more beautiful
Equipped with AUTOMATIC DISMANTLE DEVICE, reduce the labor force.
High quality alloy steel

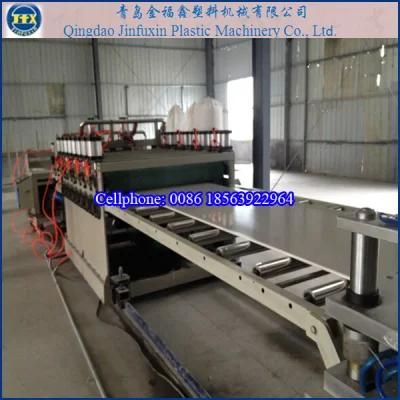

Calibration unit
Calibration plate:1500mm×500mm  4 pairs
The rise and fall of the calibration unit, adopts ELECTRIC LIFTING, easier operation.


Cooling bracket:
The DIAGONAL can be adjusted independently, very convenient

Haul-off:
Cylinder clamping and loosening
Roller qty: 8 pairs

Cutting unit

Stacker

SWP700 Crusher
Crush the PVC WPC foam board offcut into scraps.

600 Grinder
Mill the PVC WPC foam scraps into powder

500/1000 Mixer
Mix the main materials with other additives
