• Model NO.：SQJ01-120
• Processing Profil Depth：<0.3mm
• Processing Profile Height：35-110mm
• Processing Profile Width：20-120mm
• Outside Dimenion：1050X670X1370mm
• Transport Package：Wooden Case
• Specification：CE
• Trademark：sunny
• Origin：China
• HS Code：8477
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. SQJ01-120 Processing Profil Depth <0.3mm Processing Profile Height 35-110mm Processing Profile Width 20-120mm Outside Dimenion 1050X670X1370mm Transport Package Wooden Case Specification CE Trademark sunny Origin China HS Code 8477 Production Capacity 50 Sets Per Month

Product Description

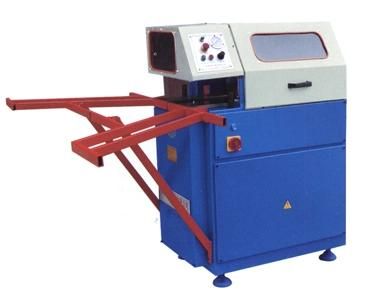

Cleaning Machine for Plastic Door & Window



Product Description





Main Feature

It is a special machine to clean the welding corner of platic door and window.It can clean the upper,lower surface as well as the outer corner of the plastic  profile.It can clean the corner the corners of different profile though changing the cutter.It is programme control,pneumatic driving and automatic orientation.It features convenient,high precision and high efficiency.



Model "SQJ01-120" : He with PLC ,can clean the upper surface,lower surface,outer surface.







Input Power Source	380V/50Hz
Power	0.75kw
Working Air Pressure	0.4~0.6MPa
Air Consumption	150L/min
Processing deep	0.3mm
Processing Profile Height	35~120mm
Processing Profile Width	20~120mm
Dimension	1050*670*1370mm











Model"SQJ06-120":He supply power by air, can clean upper  surface ,lower surface





Technical Parameters:

Input Power Source	by air
Power	0.75kw
Working Air Pressure	0.4~0.6MPa
Air Consumption	150L/min
Processing deep	0.3mm
Processing Profile Height	35~120mm
Processing Profile Width	20~120mm
Dimension	1050*670*1370mm



                     Corner cleaning machine for pvc door and window

It's a special machine to clean the welding corner of plastic door & window. It can clean the upper.
Lower surface as well as the outer corner of the plastic profile. It can clean the corner of different
Profiles through changing the cutter. It's programme control, pneumatic driving and automatic orientation. It features convenient operation, high precision and high efficiency.

Technical Parameter:

Model: SQJ01-120
Power supply: 380V/220V 20HZ
Input power: 0.75KW
Air pressure: 0.4-0.6Mpa
Air comsumption: 150L/Min
Groove processing depth: 3mm
Processing profile depth: 0.3mm
Processing profile height: 35-110mm
Processing profile width: 20-120mm
Outside dimension: 1050x670x1370mm
Weight: 250kg



Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
