High Speed PE Tubular Film Blowing Machine Sj-75-1500
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1350
- Screw Diameter：75mm
- Automation：Automatic
Base Info
- Model NO.：SJ-75-1500
- Computerized：Computerized
- Machine Weight：4T
- Certification：CE, ISO9001:2008
- Main Motor：30 Kw
- Max.Output：80-120 Kgs,H
- Screw L/D Ratio：30:1
- Gear Box：173 Type
- Die Type：Rotary Die Head
- Winder：Double Winder
- Top Nip Roller：with Embossing Roller
- Gusset Board：Wooden
- Transport Package：Wooden Case
- Specification：Dimension: 5.8*2.4*6m
- Trademark：YUNBANG
- Origin：Zhejinag China
- HS Code：8477309000
- Production Capacity：60 Set,Year
Description
65
65
75
Max. Lay flat Width(mm)
400
600
800
1000
1200
1500
Max. Output(kg/h)
20
30
50
60
90
120
Raw material
HDPE/LLDPE/LDPE/EVA
Film Thickness(mm)
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
Screw Max.
Rotation Speed
10-80r/min
10-80r/min
10-80r/min
80r/min
120r/min
120r/min
Screw L/D Ratio
28: 1
28: 1
28: 1
30: 1
28: 1
28: 1
Extruder Driving power(kw)
5.5-7.5
7.5-11
15-18.5
18.5
22
37-45

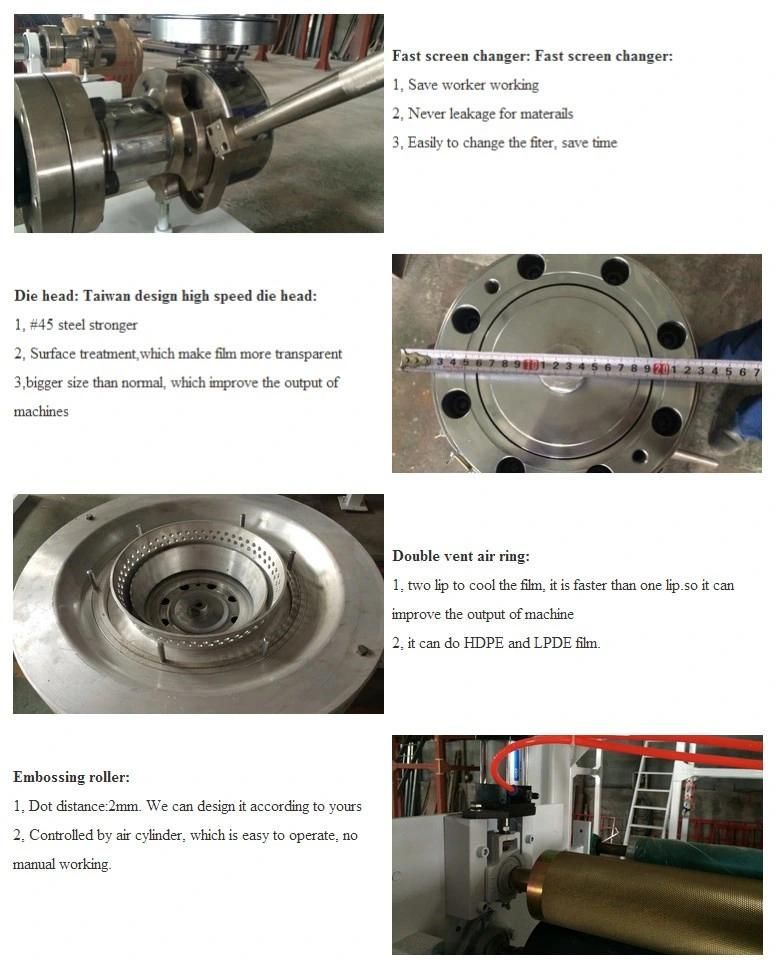

The way of screen
changing of extruder
Hydraulic/pneumatic/manual
twin-station changing screen quickly(as customer request)
Die structure
Spiral Approach
Air-ring structure
singl lip or double lip
Take-off wond-up speed (M/Min)
10-60
10-60
10-60
10-80
10-80
10-80
Overall Dimensions(LxWxH)M
2.6x1.5x4.5
3.2x1.7x4.5
4.2x1.9x5
4.8x2.1x6
5.8x2.4x6
7x2.7x7.5
Weight(T)
1.2
1.5
2
2.5
3.2
7.5
