Plastic Extruder with PP, PE, PVC, PC
Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PVC
- Product Type：Profile Extrusion Molding Machine
- Feeding Mode：Multiple Feed
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
Base Info
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Non-Computerized
- Pipe Material：PVC
- Type1：Pipe Production Line
- Certification：Ce,SGS,ISO
- Screw Design：Double Screw
- Output：120-800kg,H
- Pipe Range：12-630mm
- Transport Package：as Customers′s Demand
- Specification：200KG
- Trademark：GUANGYUE
- Origin：China
- HS Code：84778000
- Production Capacity：60 Sets Per Month
Description
Product introduction::
The barrel and screw is of building block type, full intermeshing type screw is easy to clean. The screws are able to arrange according to the different plastic material, has the advantages of interchangeability, strong adaptability, good mixing, plasticization and exhaust. The material of the screw can be 38CrMoALA, under nitridation treatment; or made of alloy bushing which is anti-wear. The heating of barrel is by cast aluminum, cooled by water. The motor can be DC motor, equipped with silicon controlled speed regulator or British Eurotherm 590 speed regulator; or AC motor frequency speed regulator. The temperature controller is Japan RKC brand or China famous brand.
Main technical parameter:
Model | Screw Diameter (mm) | Screw L/D ratio (L/D) | Screw rotation Speed (r/min)(r/min) | Main power (kw) | Production Capacity (kg/h)(kg/h) |
XQ SJ-58 | 57 | 22-48 | 300 | 37-45 | 100-250 |
XQ SJ-68 | 65 | 22-48 | 400 | 55-75 | 150-450 |
XQ SJ-75 | 72 | 22-48 | 400 | 90-110 | 220-800 |
XQ SJ-95 | 92 | 22-48 | 400 | 160-240 | 600-1000 |

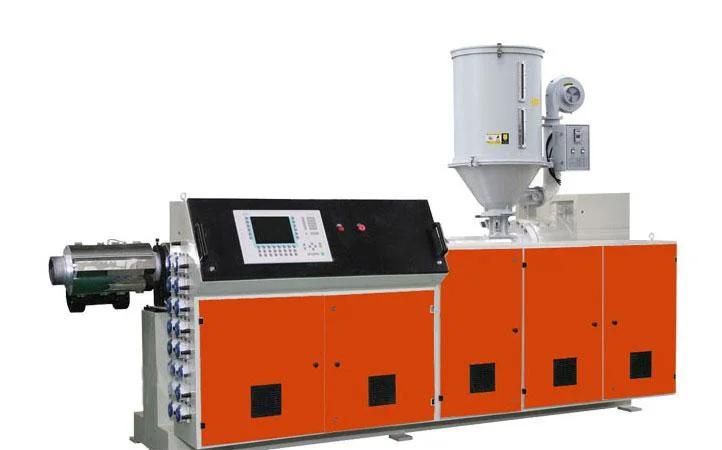

XQ SJ Series New Type High Efficiency Single Screw Extruder
Product introduction:: Design Philosophy
|

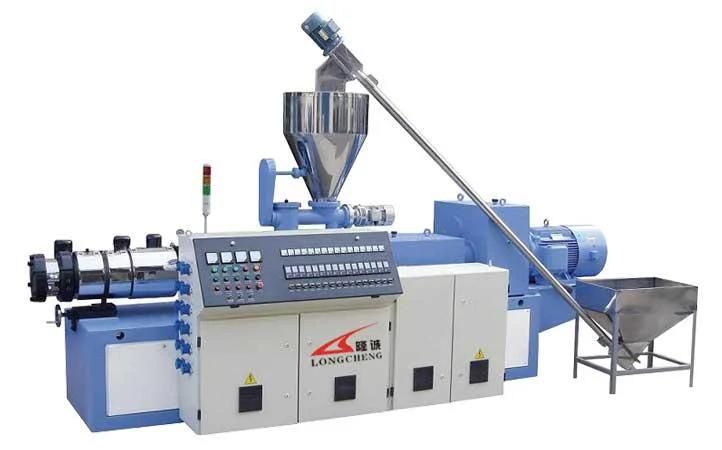

XQ SJSZ Series Conical Twin-screw Extruder
Product introduction:: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Characteristic: Characteristics of the equipment Model SJSZ series twin conical screw extruder is a kind of special equipment for various of PVC powder . with different sorts of molds and auxiliary machines ,it can produce all sorts of PVC plastic pipe material , profile material ,board material ,sheet material ,rod material and granule. The screw use oil cooling system , barrel is cooled by special wind cooling system ,the system has adopted special computer control . According to customers′ requirements , most reasonable screw can be made so as to achieve best plasticizing state and material quality . The screw with high precision CNC (Computer numerical control )screw miller processing , Ensures that each kind extrusion equipment extruding performance highly consistent. It has introduced the most advanced international variable pitch and depth screw design technology, so that the material can be more softly sheared and more close to the actual needs , Special design of distribution box , Thrust bearing is extra and fully imported , transmission can be prolonged and can be bear larger extruding pressure ,The electrical system has mainly used imported parts, it has multiple alarm system ,and there are few problems which can be easily eliminated .The cooling system has special design , extra area of dissipation , cooling rapidly, particularly control, precision can reach ± 1ºC
Main technical parameter
|
