• Materials：Pipe, Tube, Wastes, Wood, Plastic, Tire, Metal,
• Product Size：3-10cm
• Power of Main Motor：15-160kw*2
• Speed of Main Shaft：18-20r,M
• No. of Cutter Plate：28-40PCS
• Od of Cutter Plate：280-720mm
• Capacity：2-60t,H
• Transport Package：Standard Export Wooden Case
• Specification：2.5-36t
• Trademark：Kowloon
• Origin：Zhengzhou, China
• Production Capacity：330sets,Year

Basic Info.

Materials Pipe, Tube, Wastes, Wood, Plastic, Tire, Metal, Product Size 3-10cm Power of Main Motor 15-160kw*2 Speed of Main Shaft 18-20r/M No. of Cutter Plate 28-40PCS Od of Cutter Plate 280-720mm Capacity 2-60t/H Transport Package Standard Export Wooden Case Specification 2.5-36t Trademark Kowloon Origin Zhengzhou, China Production Capacity 330sets/Year

Product Description

various scraps metal shredder car hub shredder
Discription:

Twin-shaft shredder also named shearing machine, by cutting, tearing and extruting to reduce the materials' size, widely used in area of waste plastic, waste rubber, wood, crop straw, automobile recycling…etc, this is a quality and reliable equipment in recycling business.

Features:

-Use thick and heavy duty knives, high shredding efficiency.

-Moving blade and dead blade both made of alloy steel, can resistance to high torque, high strength and very durable.

-Entire frame made up by thick steel board, low maintainance, economy and durability.

Model	JLSS600	JLSS1000	JLSS1200	JLSS1500	JLSS1900	JLSS2600
Main shaft power	4-15kw*2	4-30kw*2	4-37 kw*2	4-45kw*2	4-90 kw*2	4-160kw*2
Main shaft rotary speed	18-20rpm	18-20rpm	18-20 rpm	14-16 rpm	14-16 rpm	16-18 rpm
Working capacity	2-5t/h	5-10 t/h	6-15 t/h	8-18 t/h	10-25 t/h	25-60 t/h
Weight	3000kg	5000 kg	6000 kg	12000 kg	15000 kg	36000 kg
Conveyor motor power	None	None	None	4-3kw	4-3kw	4-3kw
Number or cutter head	20pcs*φ400	34 pcs*φ400	42 pcs*φ400	46 pcs*φ550	50 pcs*φ600	40 pcs*φ720
Finished ships size	3-10cm	3-10cm	3-10cm	3-10cm	3-10cm	3-10cm
Feeding tank size	0.82×0.9m	1.2×1m	1.4×1m	2×2m	2.3×2m	2.5×1.4m
Dimension	2.6×2×1.9m	3×2×1.9m	3.2×2×1.9m	4×1.7×2.4m	8×2.5×2.4m	8.2×4×4.3m

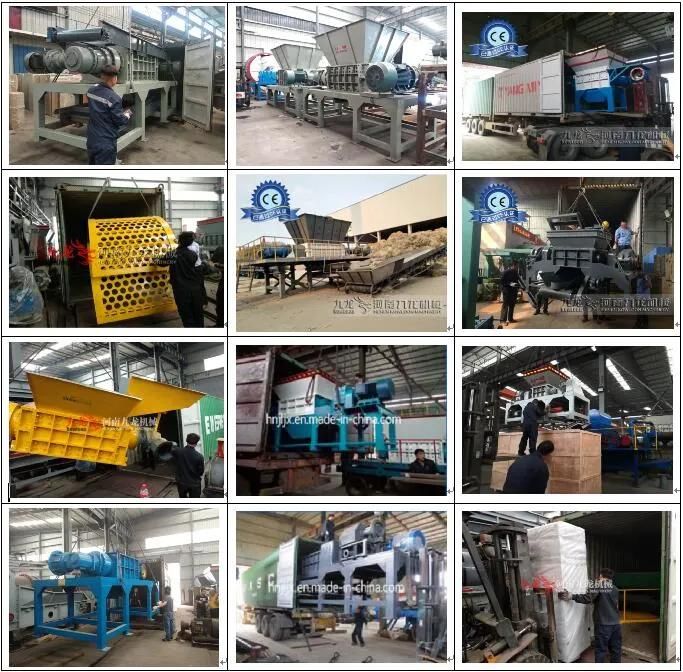

Packing&shipping


Video Center

Certifications




Company Information

KOWLOON was established since 1986, located in Zhengzhou city, which city of industrial hub of China, 30years experience on manufacturing of:

Wood processing machinery: wood pellet production line, wood shredder, wood drum chipper, wood sawdust machine, wood powder machine, rotary dryer and air flow drying machine, wood debarking machine.

Waste tire recycling machinery: tire recycling plant, industrial two shaft shredder, tire roller mill multi-purpose rasper, rubber granulator, rubber powder machine, tire cutting machine, tire steel debeader, and fiber separate machine.

By now, KOWLOON machines were exported to more than 30 countries and share market in worldwide, owns oversea distributors and after-sale service center and now still growing continuously.


FAQ

You May Have Following Questions:

Q1:Are You Trading Company or Factory?

     Kowloon Machinery is a Factory with 31 years experience in Machinery Manufacturing,we provide you competive Factory Price

     and good After-sale Service!

Q2:What About The Machine Installation?

     For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful

     installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide

     the installation if necessary

Q3:How About The Spare Parts?

     We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing

     parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts

     in stock.

Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?

     Kowloon has people special for after-sale service,if customers outside China have problems when machine working,just feel

     free to send us the picture or video to show us,we will give you solutions in 24hours.

Q5:Could We Visit Your Factory and Test the Machine?

     We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
