• Model NO.：FYP35
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Object：Plastic
• Drive：Electric
• Crushing Degree：Intermediate Crusher
• Crushing Style：Extruding and Milling
• Principle：Roller Culling
• Cutter Material：High-Speed Steel
• Finished Surface：Thread Process
• Status：Brand New
• Transport Package：Wooden Frame
• Specification：FYP35
• Trademark：Jatchen
• Origin：China
• HS Code：8474809090
• Production Capacity：120 Pieces Per Year

Basic Info.

Model NO. FYP35 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Object Plastic Drive Electric Crushing Degree Intermediate Crusher Crushing Style Extruding and Milling Principle Roller Culling Cutter Material High-Speed Steel Finished Surface Thread Process Status Brand New Transport Package Wooden Frame Specification FYP35 Trademark Jatchen Origin China HS Code 8474809090 Production Capacity 120 Pieces Per Year

Product Description

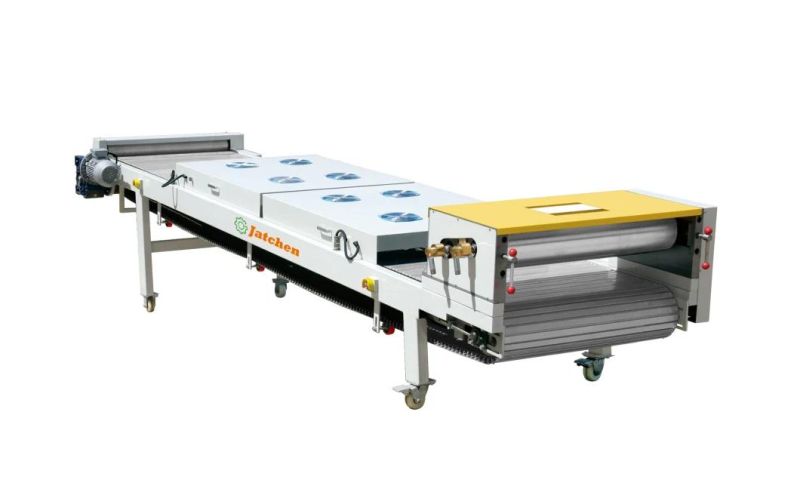

Lab cooling band of series FYP

Lab cooling band of series FYP is composed of cooling-sheeting rolls, knotty stainless steel band conveyor, crusher and driving system. The kneaded melting material output from extruder is sheeted at thickness of 1-2mm. The rolls are cooled by cooling water. The sheeted tape material is transported to crusher. The material is to be continually cooled by cooling water which sprayed to the back surface of stainless steel band. The crushed chip material falls down into the chips container.
Attention: Temperature of cooling water ≤ 14'C


Technical Parameters:

Model	Roll Diameter (mm)	Bandwidth (mm)	Band length (mm)	Power (KW)	Throughput (kg/h)	Cooling mode	Dimension (m x m x m)
FYP30B	100	300	950	0.37	5-10	cooling water/wind	1.4x0.65x0.65
FYP35	190	400	1300	1.1	30-50	cooling water/wind	1.8x0.9x0.95



Company Introduction

Yantai Jatchen Powder Coating Processing Equipment Co., Ltd, established in 2011, which specialized in researching and manufacturing of powder coating processing equipment with strong technical team and rich experience. We passed CE certification approval and ATEX explosion resistant test, etc. international standards, "Quality first, Credit first and customer first" is our eternal pursuit. We are committed to provide commissioning and installation support, formulation guidance and 24-hour after-sale service.
Our products have been successfully exported to many countries and regions. like America, Brazil, Canada, India, Turkey, etc. We sincerely welcome you to our company for business visit. we'll try our best to provide the best equipment and solutions to our customers.

Workshop


1. With highly advanced & precise machining center
2. With well-trained & experienced workers
3. With strict quality control system
4. With EHS & 6S management system

Patent & Qualification:




Why choose us?

"Leading design" + "Excellent performance" + "Best service" = Jatchen's advantages

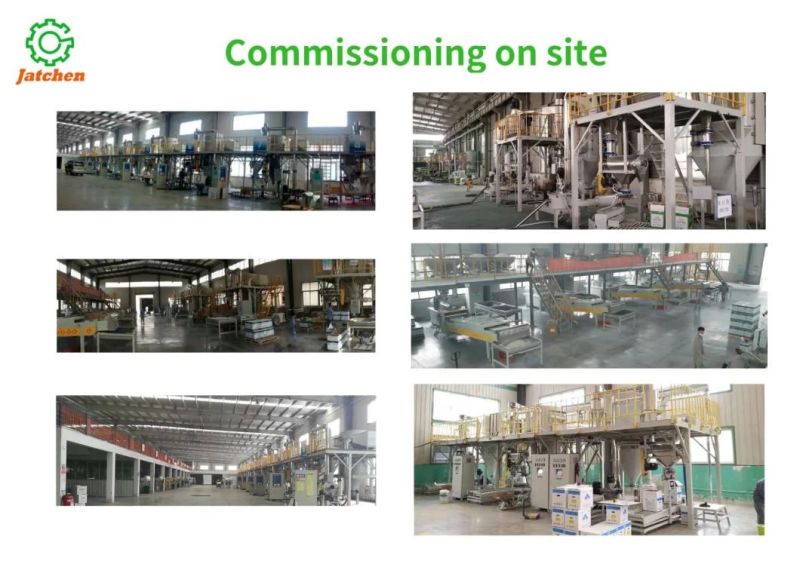

Successful Cases:
