• Model NO.：2SJ
• Machine Weight：4T
• Certification：CE
• Certificate：Ce
• Output：80kg,Hr
• Size：600,800,1000,1200mm
• Weight：2t
• Screw：55
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Lisheng
• Origin：China
• HS Code：8441200000
• Production Capacity：100 Sets ,Mounth

Basic Info.

Model NO. 2SJ Machine Weight 4T Certification CE Certificate Ce Output 80kg/Hr Size 600/800/1000/1200mm Weight 2t Screw 55 Transport Package Wooden Case Specification CE Trademark Lisheng Origin China HS Code 8441200000 Production Capacity 100 Sets /Mounth

Product Description

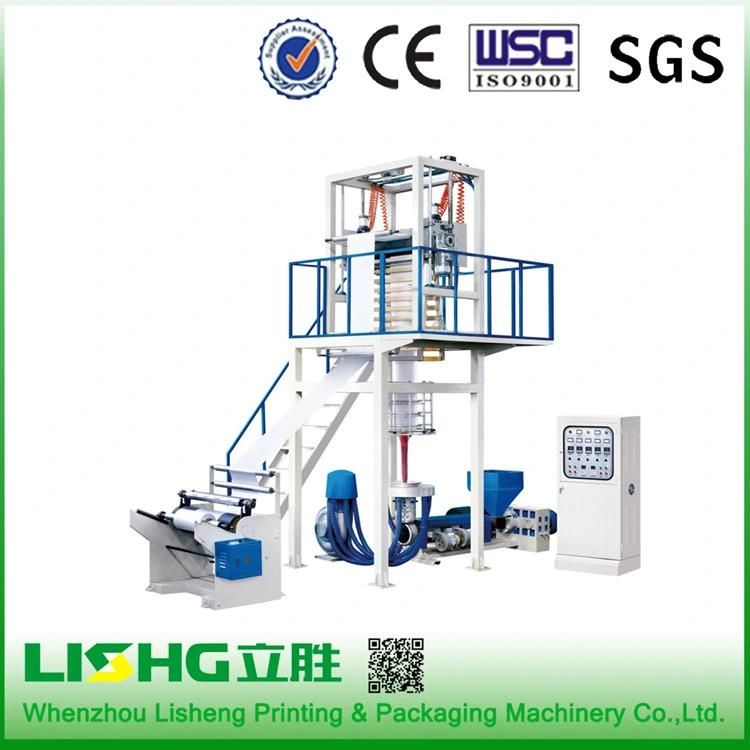

plastic film extrusion two layer pe film blowing machine


1. Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.

2. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.

4. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.

Model	2SJ-G50	2SJ-G55	2SJ-G65
Diameter of screw	50× 2	55× 2	65× 2
L/D	28: 1	28: 1	28: 1
Reduced diameter of film(mm)	800	1000	1200
Single-face Thickness of film(mm)	0.015-0.10	0.015-0.10	0.015-0.10
Max. Output(kg/h)	40	65	80
Power of main motor(kw)	11× 2	15× 2	18.5× 2
Heating Power(kw)	26	30	42
Outline diameter(L× W× H)(mm)	4200× 2200× 4000	4600× 2400× 4600	5000× 2800× 5000
Weight(T)	4	5	6
