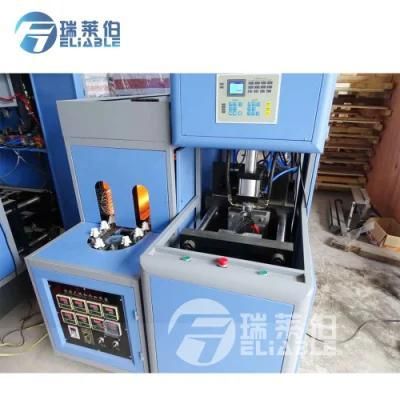

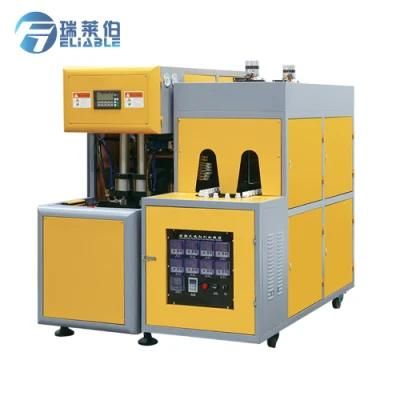

Cost-Effective Automatic 5L Bottle Blow Moulding Machine
Zhangjiagang Reliable Machinery Co., Ltd.- Type：Extrusion Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：RM-5L
- Name：Cost-Effective Automatic 5L Bottle Blow Moulding M
- Bottle Volume：5-10L
- Application：Pet Bottle
- Max Volume of Contanier：10L
- Control：PLC Touch Screen
- Number of Cavities：1 Cavity
- Feature：Human Machine Interface
- Voltage：380V , 3pH ,50Hz or Special Order
- Color：Blue
- Material：SUS304
- Warranty：1 Year for Spare Parts
- Transport Package：Wooden Outside Packing & PE Film Inside Packing
- Specification：ISO,SGS,CE
- Trademark：RELIABLE
- Origin：China Jiangsu
- HS Code：8477209000
- Production Capacity：10 Set ,Month
Description
RM-5L-AMolding Clamping force kg 25000 Clamping stroke mm 220 Stretching stroke mm 400 Bottle Stroke mm / Cavity Spacing mm / Number of Cavity Cavities 1 Carriage Unit pcs 72 Theoretical Output bph 500 Electrical System Total Power kw 17 Heating Power kw 16 Number of Lamp Layers Layers 19 Air System Operating Pressure kg/cm² 7 Low Pressure Air Consumption Ltr/min 600 Blowing Pressure kg/cm² 25 High Pressure Air Consumption Ltr/min 1200 Chiller Operating Pressure kg/cm² 2-4 Temperature Range ºC 10-12 Consumption kcal/hr 2000 Flow Rate Ltr/min 30 Machine Blower Dimensions mm(L*W*H) 1850*650*1850 Blower Weight kg 1100
