Plastic Machinery

4 Inch Lab Rubber and Plastic Two Roll Mill

Dongguan Xihua Machinery Technology Co., Ltd.
  • After-sales Service:a Lifetime of Service
  • Warranty:3 Years
  • Type:Multi-Roll
  • Roller:Two
  • Roller Orientation:Z-Type
  • Certification:CE

Base Info

  • Model NO.:XH-401CE
  • Customized:Customized
  • Condition:New
  • Mixed Capacity:1-5kgs or Designated
  • Temperature of The Roller:Electrical Heating Room Temp ~ 300ºC
  • Heating Mode:Electrical Heating
  • Revolution of The Roller:Dual-Frequency Limitless Speed Change
  • Roller Pitch:0.1~8mm Adjustable
  • Size of The Roller:Φ220mm*L620mm or Designed
  • Transport Package:Wooden Case
  • Specification:1000*550*1200mm
  • Trademark:Xihua
  • Origin:China

Description

Technical Parameter Of XH-401CE lab two roll millApplicable materialsPP, PE, PVC, rubber, etc.Mixing capacity1-5kgs or designatedRoller diameter220mm or designedRoller width520mm or designedRoller gap0.1 - 8mm (adjustable)Speed of roller0-30r/minCooling modewater coolingHeating modeelectrical heating Safety deviceprotective cover, safety lever, reverse door, emergency stop buttonMotor1HP (2 Sets)Power supply380V/50Hz/3 phases or Customerized

Main Features of lab two roll mill

1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.





Detailed Images
 4 Inch Lab Rubber and Plastic Two Roll Mill4 Inch Lab Rubber and Plastic Two Roll Mill

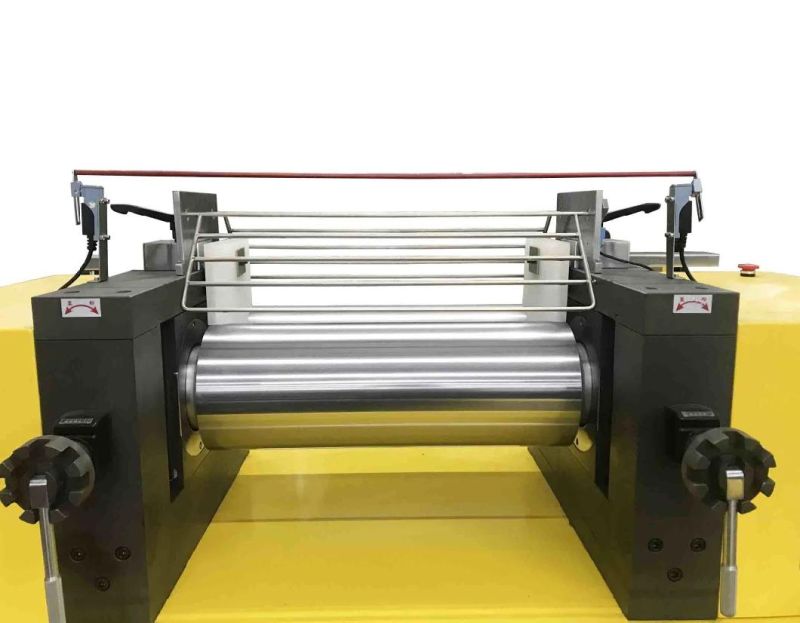

1. Alloy steel roller, High wear resistance, no deformation, high overall hardness, 0-to-0 grinding
2. Rubber and plastic is different. We will suggest the roller to you according to your material.

3. The size of the rollers and equipmentcan be increased according to customer's requirement.
 4 Inch Lab Rubber and Plastic Two Roll Mill4 Inch Lab Rubber and Plastic Two Roll Mill

1. Safety Device: Reversible rollers (by kicking at the door of the machine). Safety switch. Protective cover.(It can add some other safety device according to your requirements)
2. It adopts Japanese RKC, LED temperature controller and high precision sensor, Accurate and stable temperature, Speed of roller are easy to control by two frequency converter.

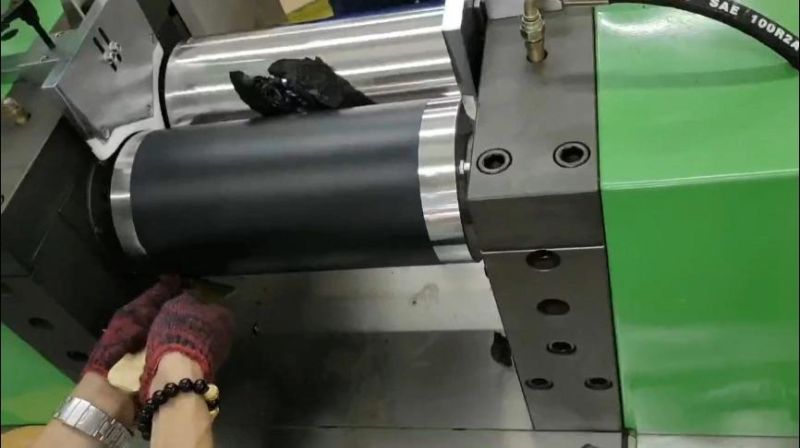

Picture is made of Rubber mixing4 Inch Lab Rubber and Plastic Two Roll Mill4 Inch Lab Rubber and Plastic Two Roll Mill
Picture is made of PP mixing
 4 Inch Lab Rubber and Plastic Two Roll Mill4 Inch Lab Rubber and Plastic Two Roll Mill
