2019 Chinaplas Type Sj-a 55 Film Blowing Machine with Rotary Die Head and Double Winder

Zhejiang Zhuxin Machinery Co., Ltd.
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：800mm
  • Screw Diameter：55mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：SJ-A 55
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Transport Package：Standerd Package
  • Specification：film width 800mm
  • Trademark：ZHUXIN
  • Origin：China
  • HS Code：84773090
  • Production Capacity：50sets,Month

Description

Basic Info.

Model NO. SJ-A 55 Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Standerd Package Specification film width 800mm Trademark ZHUXIN Origin China HS Code 84773090 Production Capacity 50sets/Month

Product Description

Model  :SJ-A 55
2019 Chinaplas Type Sj-a 55 Film Blowing Machine with Rotary Die Head and Double Winder


Suitable material:HDPE  LDPE LLDPE
Film width:800mmm
Film thickness:HD(0.009-0.15mm);LD(0.02-0.15mm).
Max extrusion output: HD(70KG);LD(90KG).
gear case:180;HANGZHOU Xiaoshan.
Inverter:Delta brand (30KW),made in china .
Low-voltage apparatus:Made in china
Volotage:380V,50HZ,3PHASE.

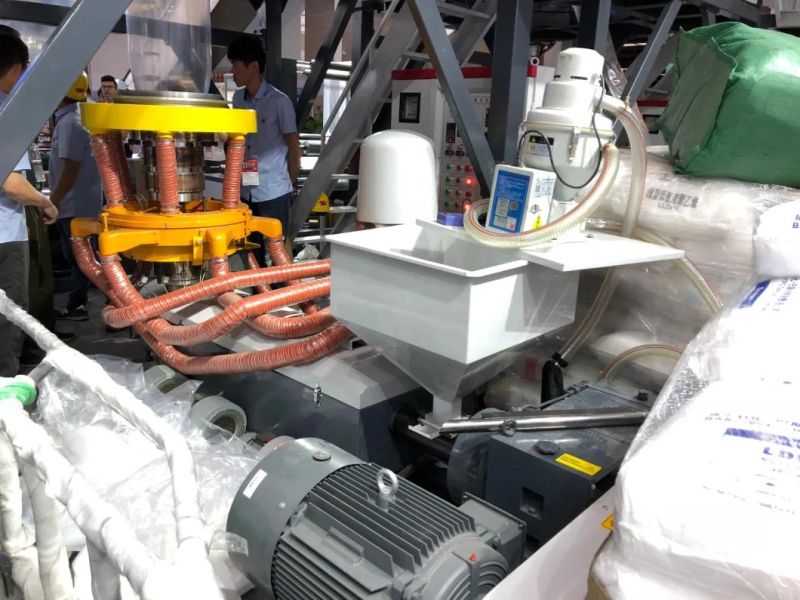

Extruder
2019 Chinaplas Type Sj-a 55 Film Blowing Machine with Rotary Die Head and Double Winder

Screw diameter:55
Screw L/D  length:1:32
Screw material: Sacm-645/38Crmoala
Cylinder material: Sacm-645/38Crmoala
Cylinder cooling:370W(3P).
Feed device cooling: water circulating.
Main motor:30KW. Siemens brand
Temperature control:3Zone
Average power consume:20KW.
Heating areas: 5zone
Drum loader:,One time can feed 55kg raw material with Auto Loader and Auto weighting(controlled by PLC).

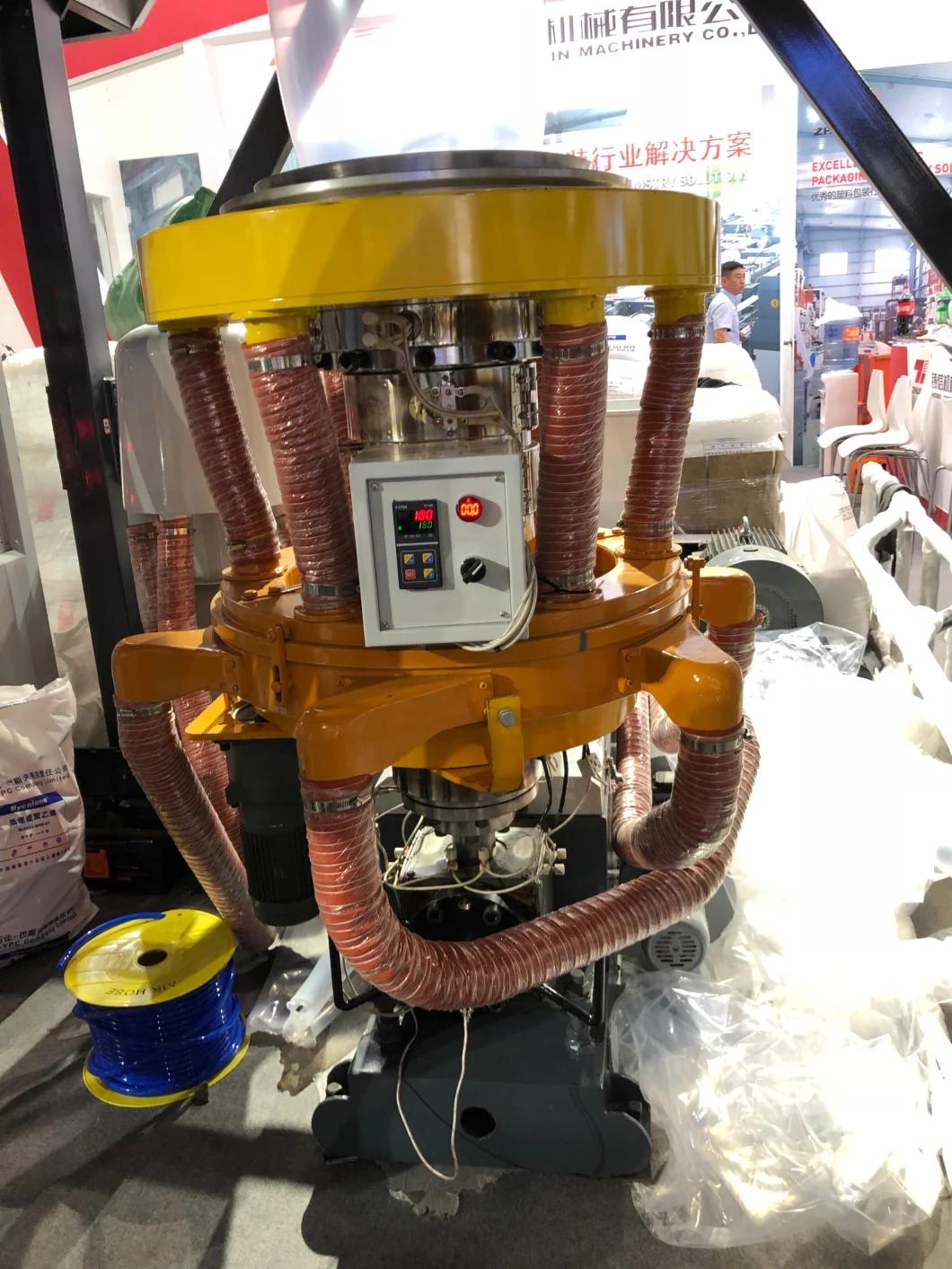

Type of die
2019 Chinaplas Type Sj-a 55 Film Blowing Machine with Rotary Die Head and Double Winder

Die size:: ø220mm. Taiwan style high speed die head.
Temperature control:1zone temperature controller.
Air ring: Dual-lip air ring(Taiwan style)
Height of air ring:200mm.
Width of air ring: ø800mm.
Air blower 4KW. Made in china.
Center steady stick:1P.
Wind pipe: φ70×6pcs.

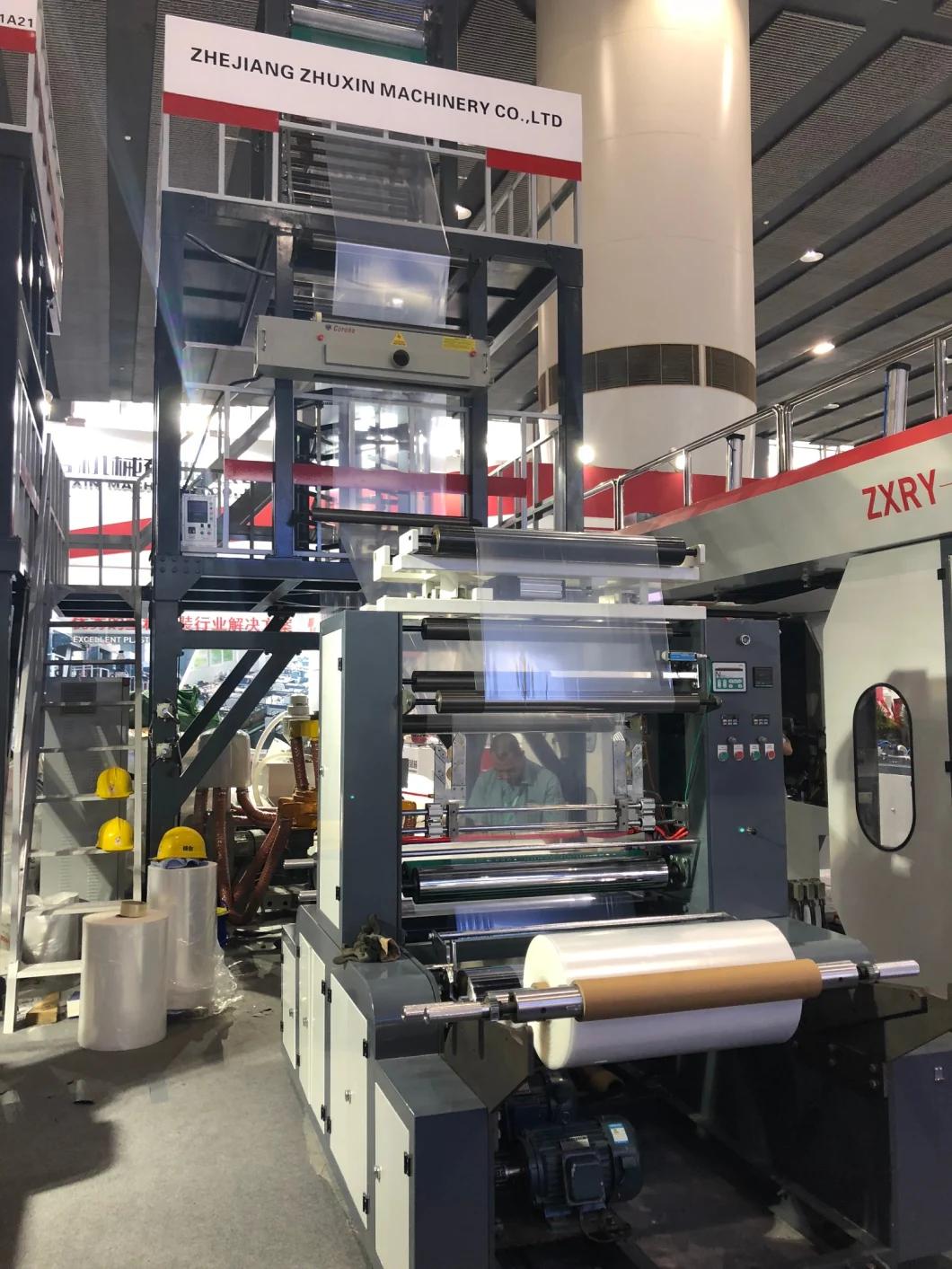

Take-up unit
2019 Chinaplas Type Sj-a 55 Film Blowing Machine with Rotary Die Head and Double Winder

Electrical controller system:Twrbine Reducer(1:7.5)+1.5kw motor.
Take-up unit:1.9m
knurling rol: φ120×900mm.Controlled by air
Pinch roller: φ165×900mm..Controlled by air
Roller width :900mm.
Effective width :800mm.
Height adjustable :800mm.
Take-up speed : 10-100m/min.
Take-up motor :1.5KW.

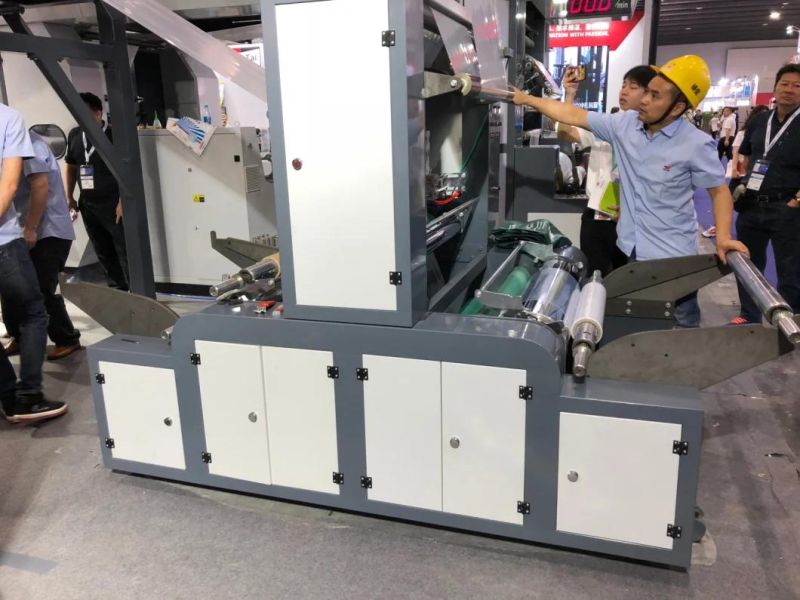

Winding unit   : surface friction type
2019 Chinaplas Type Sj-a 55 Film Blowing Machine with Rotary Die Head and Double Winder

Winder power:10N.M.1:11. Speed controlled by inverter.
Winding speed : 10-100m/min.
Adjustable rubber roller before winding
Effective motor and control system::1.1KW
THE ELECTRICAL CONTROL AND MEASURING LENGTH DISPLAY OF THE PINCH AND WINDER SHOULD INSTALL ON THE PLACE OF WINDER
Temperature controller:CHNT
Switch box &contactor:Schneider
Outline dimension:7.5×3.2×6.5(M).

Machine allocation :

Double winder with EPC
Rotary die head
Auto loader 1Set
Corona treater


Terms of Payment: T/T 30% of total amount as deposit, The balance 70% T/T BEFORE SHIPMENT
The delivery time :30days after receiving deposit
The above quotation is valid within 30 days.
Machine garuntee: AFTER SALED SERVICE: IF THE SPARE PARTS ARE DAMAGED NOT BY BUYER WITHIN ONE YEAR, SUPPLIER WILL SUPPLY SPARE PARTS FOR FREE FOR CUSTOMER
Installation:The buyer if need seller's engineer go to their workshop install machine and trainning ,the buyer should pay for round trip air tickets ,accommodations ,salary 100 USD per day for every person.
