• Model NO.：YZJZQD
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Voltage：380V 50Hz 3phase(Customized)
• Power：70kw
• Power Consumption：About 35kw
• Raw Material：Origin or Good Waste PP Plastic
• Thickness of Strapping：0.7-1.4mm
• Width of Strapping：5-18mm
• Max Capacity：50-200kg,H
• Dimension(L*W*H)：38mx2.5mx2.2m
• Certification：Ce ISO9001
• The Brand of Motor and Inverter：Siemens or Teco or Else
• Transport Package：Plywood
• Specification：pp
• Trademark：YZJ
• Origin：Sichuan
• HS Code：8477800000
• Production Capacity：5sets

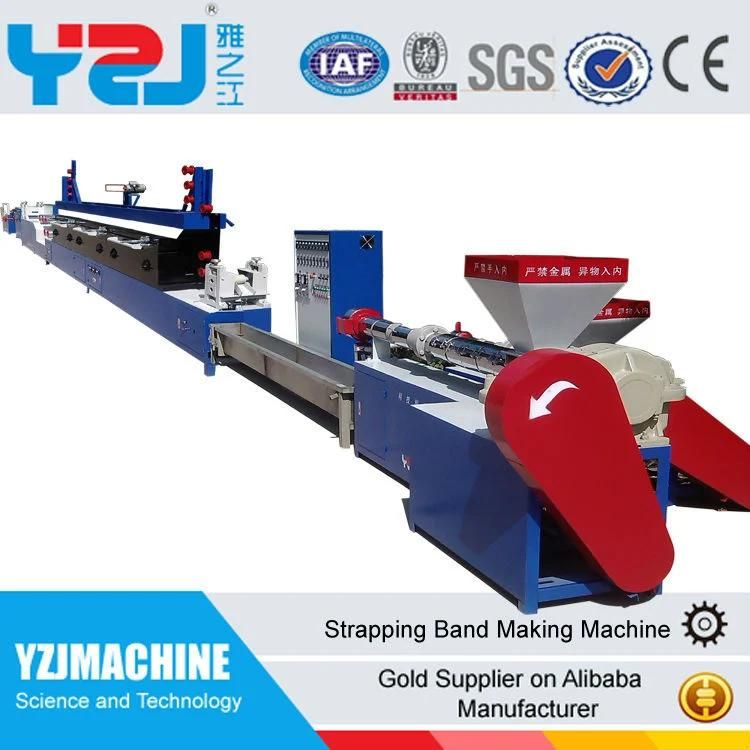

the specification of pp strap manufacturing machine

EngineEngine modelKw/rpm22/1440No. of cylindersHP5Net PowerKW120

Main performance parametersMain performance parametersm/min120-260Width of the Pp Strapmm5-18Thickness of the Pp Strapmm0.7-1.4Max. CapactiyKg/h50-150



The parameters of PP strap 12006Weightg/m3.3-3.5The fracture strainKNAbout 1200Widthmm12Thicknessmm0.58-0.62The Deviation of Widthmm±0.60The Deviation of thicknessmm±0.07

Main Features
1) The pp strap manufacturing machine making the operation more easy and lower request;
2) Reciprocating super-long distance low-temperature stretching, great stretching times, good rigidity of finished band;
3) Light heat setting unit, differential speed traction design, internal stress may be removed to the maximum extent;
4) Organic combination of the 3rd stretching unit and embossing mechanism, scientific structure, advanced configuration;
5) Self-circulating wind heat warming system of the pp strap manufacturing machine, energy saving ;
6) High-accuracy good-quality screw, large extrusion capacity, constant extrusion pressure.






Certifications


Our service

After-sales service
1.We provide one-year warranty guarantee for all the machines.  We supply long term spare parts for every customer and 24 hours technical support by email, calling and door to door service;
2.We run machines in our factory before delivery. Clients check machines running in our factory, and  when machines arrive in Client's factory, we will arrange our engineer for you to run machines in client's factory too.
3.We provide service manual and maintenance instruction of main electric appliance,usage manual of equipment.
4.We also supply installation drawing of water, electricity, gas of equipment.
