Juice Bottle Pet Stretch Blow Moulding Machine
Zhangjiagang Reliable Machinery Co., Ltd.- Type：Special Structure of Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：RM-6000 Blow Moulding Machine
- Product Name：Juice Bottle Pet Stretch Blow Moulding Machine
- Capacity：6000bph
- Bottle Size：0.1L-2L
- Bottle Material：Pet
- Control：PLC Touch Screen Control
- Operation：Easy Stable
- Quality：High Quality
- Technology：Advanced
- Customized：Available
- Keyword：Blow Molding Machine
- Transport Package：Standard Wooden Packing
- Specification：CE, ISO, SGS
- Trademark：Reliable Machinery
- Origin：Zhangjiagang City, Jiangsu Province
- HS Code：8422301090
- Production Capacity：15 Sets Per Month
Description
RM-6000output according to bottle shape Max. 6000PCS/H product specification bottle body diameter 20mm-100mm bottle height 50mm-350mm bottle mouth diameter 15mm-38mm mold cavity 6cavities mold thickness 200mm mold effective area 800*800mm Main power power ,voltage 380v 3Phase /220v 3Phase 50/60HZ Install machine power/actural use power 68kw/15kw air source low pressure air compressor 2.0m3/min 1.0MPa high pressure air compressor 3.6m3/min 3.0MPa cold-dry machine 2.0m3/min 3.0MPa 1set cooling water cooling quantity 15L/min main machine size L*W*H 2808*1958*1920mm/4600kg feeder size L*W*H 2000*950*2480mm/250kg
Main Procedures--Juice Bottle PET Stretch Blow Moulding Machine

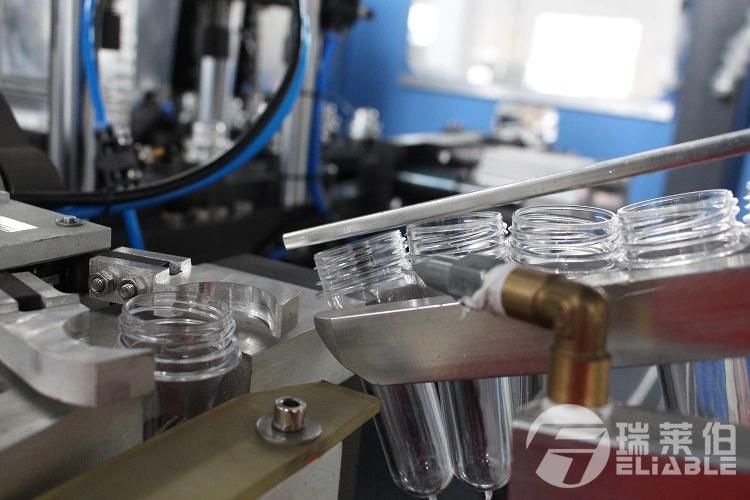

Step 1. Put the preform into preform container and the conveyer will take the preform to orientation units automatically.

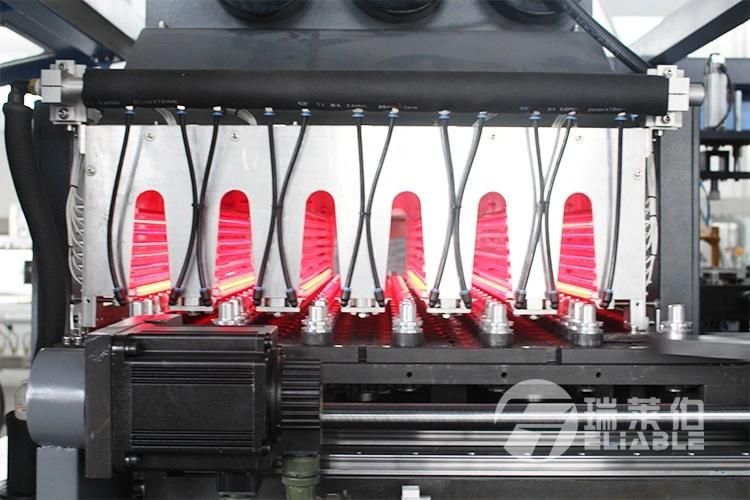

Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.
Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.
Step 4. The finished bottle is taken off by automatic discharging system
Company Information--Juice Bottle PET Stretch Blow Moulding Machine
Enterprise Information

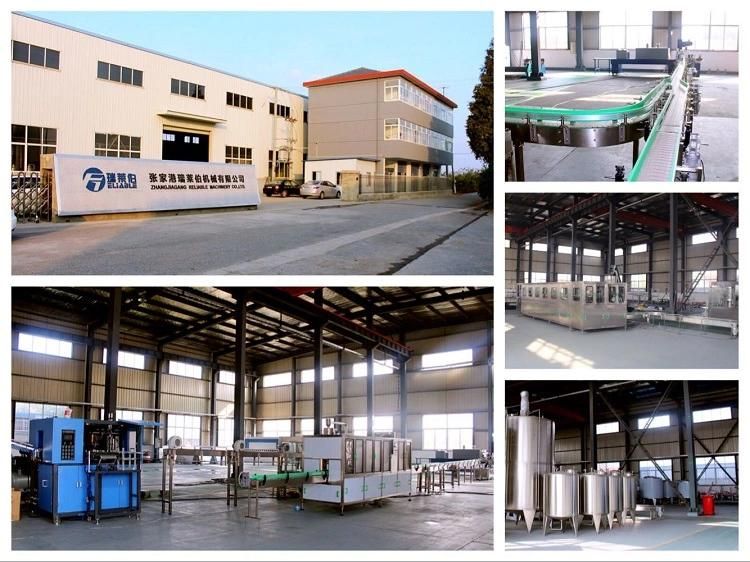

Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China.
What Reliable Machinery Co.,Ltd can offer you ?
Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines
Reliable Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line installation to operator training and other after-sales services .
-Trading Process
-Inquiry-Pofessional Inquiry
-Confirm the price, leadtime, payment term etc
-Reliable sales send the proform invoice with Reliable seal
-Customer make the payment for deposit and send us bank receipt and offer samples
-Inform customer has got the deposit and start to production
-Middle production- send photos to show the production line which you can see your products in. Confirm the estimated delivery time again
-Clients make payment for balance and Reliable ship the goods. Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.
-Order can be say "finish" when you receive the goods and satisfy with them.
-Feedback to Reliable about Quality , Service, Market Feedback & Suggestion. And we can do better.
Main Procedures--Juice Bottle PET Stretch Blow Moulding Machine
Step 1. Put the preform into preform container and the conveyer will take the preform to orientation units automatically.
Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.
Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.
Step 4. The finished bottle is taken off by automatic discharging system
