• Model NO.：PVC Granulator
• Automation：Automatic
• Computerized：Computerized
• Customized：Customized
• Certification：CE, ISO9001:2008
• Condition：New
• Motor：37kw
• Frequency Brand：ABB
• PLC Brand：Siemens
• Output：250-500kg,H
• Transport Package：Wooden Packing
• Specification：4800*2640*2480
• Trademark：Prowell
• Origin：China
• HS Code：8477800000
• Production Capacity：20set,Year

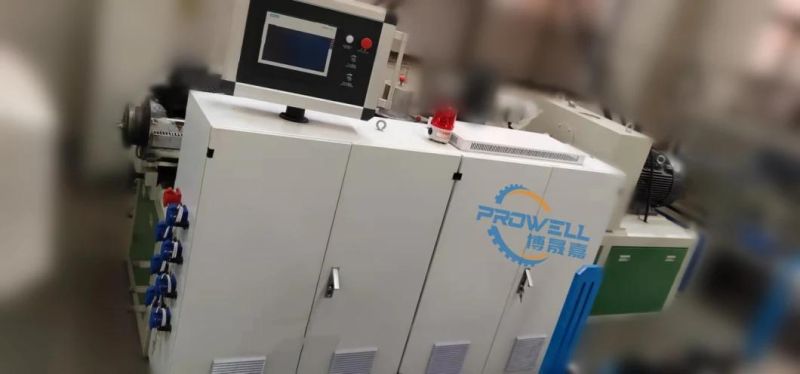

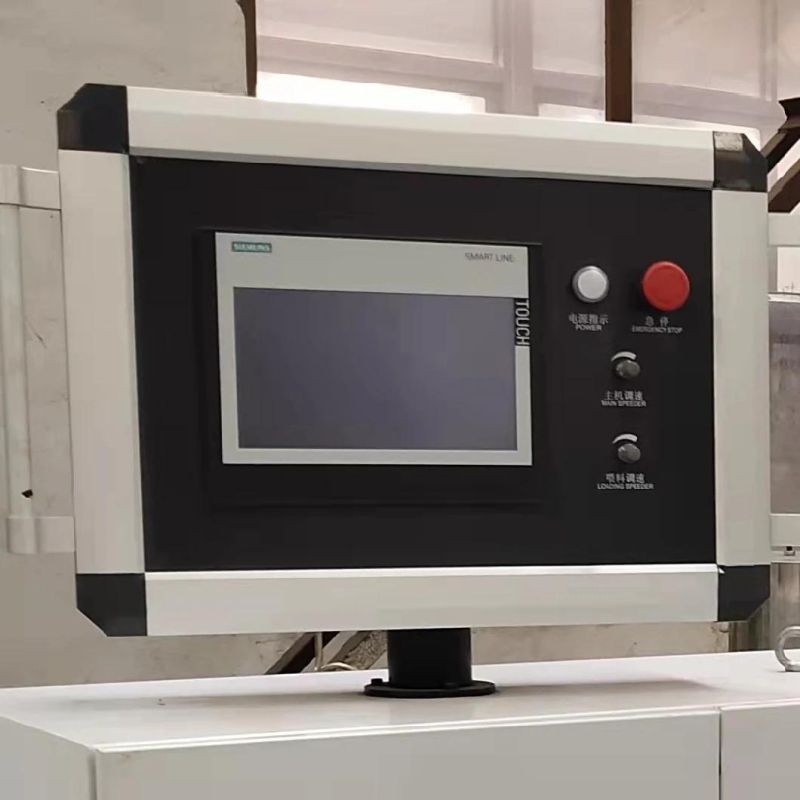

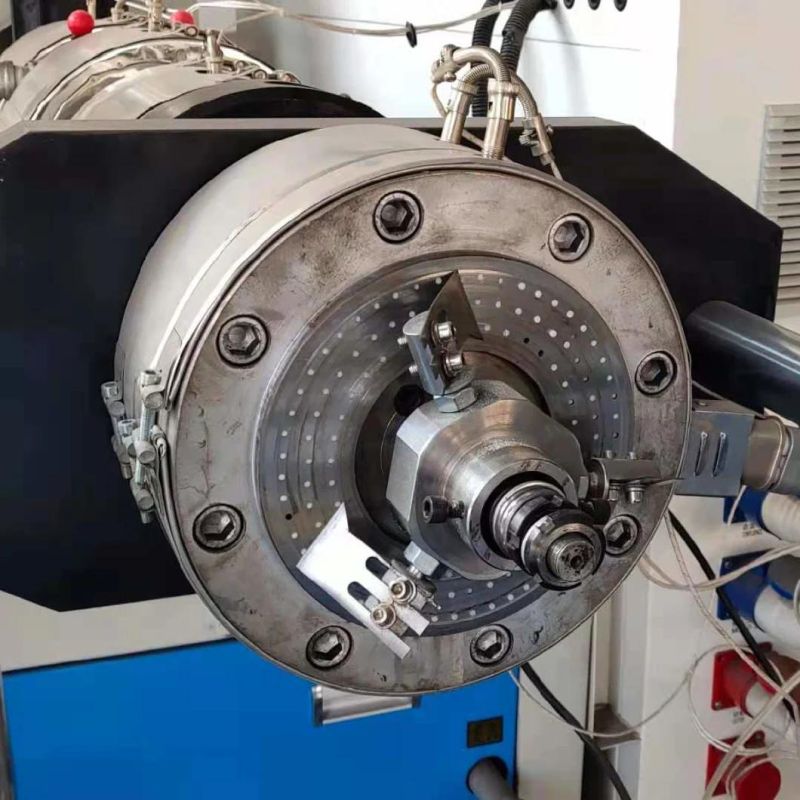

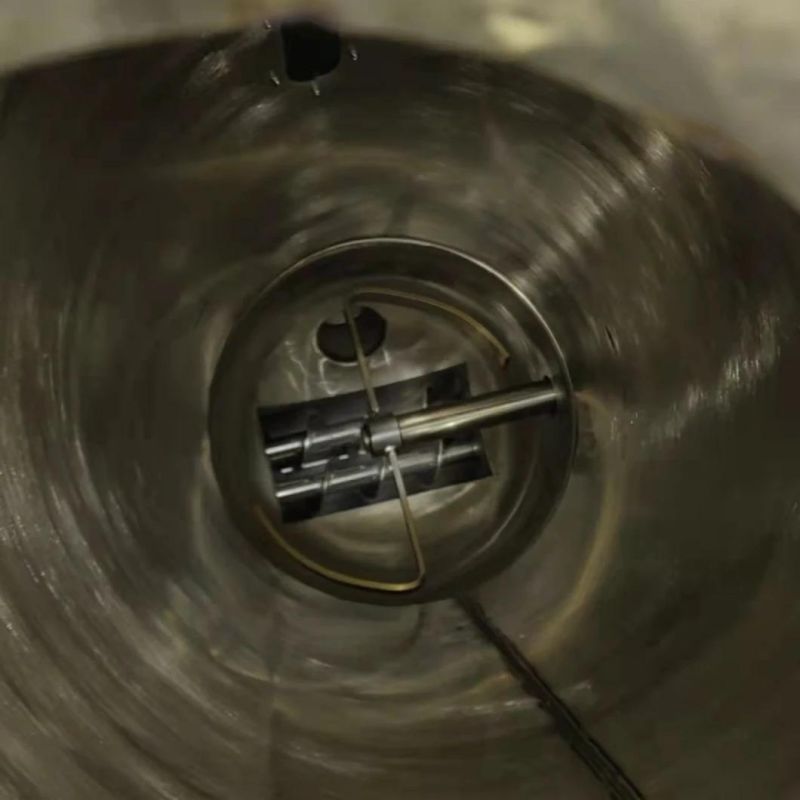

     High speed & Efficient Blade.                             Siemens PLC Control Panel               Twin Screw Feeder to Make More Efficient

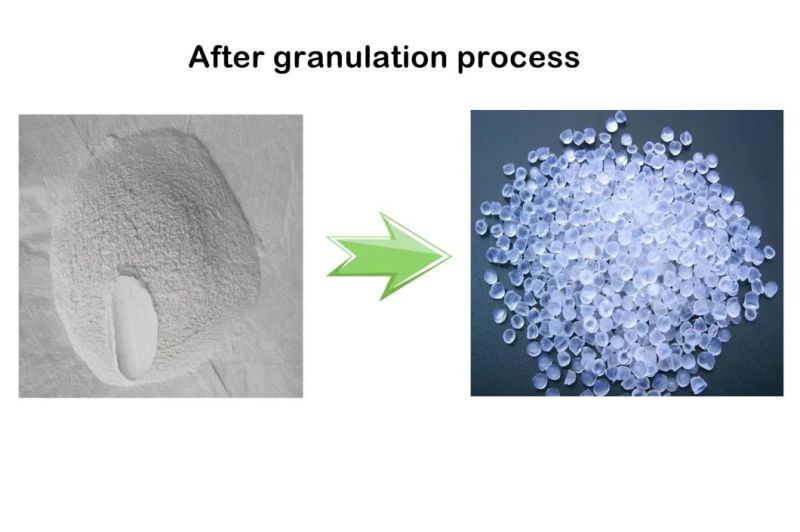

The SJZ80/156 Extruder PVC Powder Pelletizing Machine Plastic soft rigid PVC pelletizing making machine with knife cutting device is used in the field of PVC recycling crushed material and waste material granulation Through the process of melting, extruding, pelletizing and drying, recycled materials, waste materials will become PVC particles Then Granules are widely used in the plastic industry, sheet, pipe, and profile production.

Production Line mainly adopts the method of grinding and hot-cutting to granulate the plastics with relatively cold curing characteristics (such as HDPE, PVC) and filled modified plastics (such as calcium filling) without water so the die surface is eagerly cut and granulated to make the appearance of the material particles smooth, full and beautiful.
Because the system adopts a modular design then users can also choose secondary air conveyors vibrating screens and other configurations according to process requirements to achieve different process requirements.

This production line mainly adopts the method of grinding and eager cutting to produce PVC particles Then the production line has the advantages of high cutting precision and high eager cutting output.

Brief description of Plastic PVC Granulating Machine Granules Pellets Making Line unit:

Model	SJSZ-51	SJSZ-65	SJSZ-80
Extruder	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156
Power	45 kw	70kw	100 kw
Output	120kg/h	280kg/h	350kg/h
Granulator	φ3mm-4	φ3mm	φ3mm
Total Length	12meters	15meters	17meters
