PVC WPC Crust Foam Board Extruder Machine
Qingdao Jinfuxin Plastic Machinery Co., Ltd.- Product Type：PVC Board
- Board Layers：Single Plate
- Screw No.：Double-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：SJ-80,156
- Customized：Customized
- Condition：New
- Transport Package：Suitable for Sea Shipment
- Specification：CE
- Trademark：JINFUXIN
- Origin：Qingdao, China
- HS Code：84772090
- Production Capacity：100 Set,Year
Description

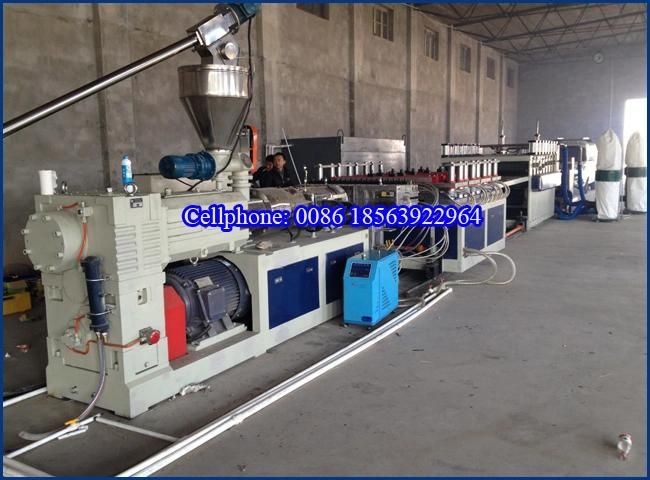

Composition of the machine
The machine consists of conical twin screw extruder, T-die mould, calibration unit and haul-off parts, uses special designed screw structure, considering variously from technology to the formula, makes the produced building template no deformation in high temperature, no crack under low temperature.
Conical twin screw extruder
ABB inverter
Siemens contactor
Harden and helical gear. conjoined gearbox, thrust bearing is NSK (Japan)
Motor power: 75KW
Mould (T-Die)
New designed mould, can work for longer time, easy to operate.
Equipped with INDEPENDENT LIFT to remove and reinstall the mould, replace the heavy gantry, and greatly saves space, safer and more beautiful
Equipped with AUTOMATIC DISMANTLE DEVICE, reduce the labor force.
High quality alloy steel
Calibration unit
Calibration plate:1500mm×500mm 4 pairs
The rise and fall of the calibration unit, adopts ELECTRIC LIFTING, easier operation.
Cooling bracket:
The DIAGONAL can be adjusted independently, very convenient

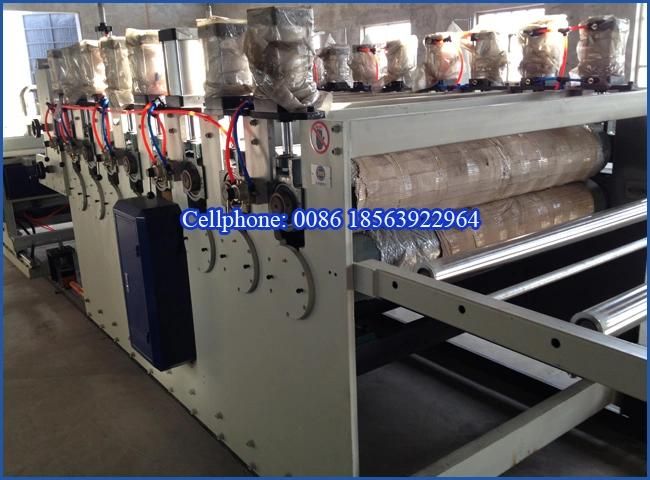

Haul-off:
Cylinder clamping and loosening
Roller qty: 8 pairs
Cutting unit
Stacker
SWP700 Crusher
Crush the PVC WPC foam board offcut into scraps.
600 Grinder
Mill the PVC WPC foam scraps into powder
500/1000 Mixer
Mix the main materials with other additives
