• Model NO.：ABLB65
• Station Number：Double or Single
• Condition：New
• Machine Weight：5.5ton
• Export Port：Shanghai
• Company Attribute：Manufacturer
• Guarantee Time：1 Year
• Delivery Time：55days
• Power(W)：28.5 Kw
• Screw Diameter：65mm
• Max. Product Volume：5liters
• Screw L/D Ratio：24L,D
• Screw Drive Power：18.5kw
• Screw Heating Capacity：6kw
• Voltage：Customer Specified
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Transport Package：Film Packing
• Specification：ABLB65ll
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：up to Product

Basic Info.

Model NO. ABLB65 Station Number Double or Single Condition New Machine Weight 5.5ton Export Port Shanghai Company Attribute Manufacturer Guarantee Time 1 Year Delivery Time 55days Power(W) 28.5 Kw Screw Diameter 65mm Max. Product Volume 5liters Screw L/D Ratio 24L/D Screw Drive Power 18.5kw Screw Heating Capacity 6kw Voltage Customer Specified After-Sales Service Engineers Available to Service Machinery Overseas Transport Package Film Packing Specification ABLB65ll Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to Product

Product Description

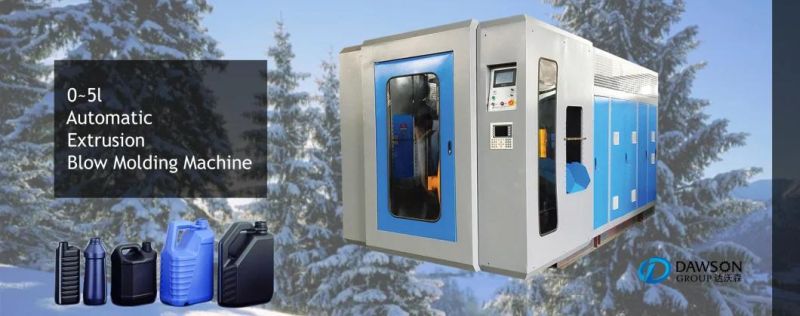

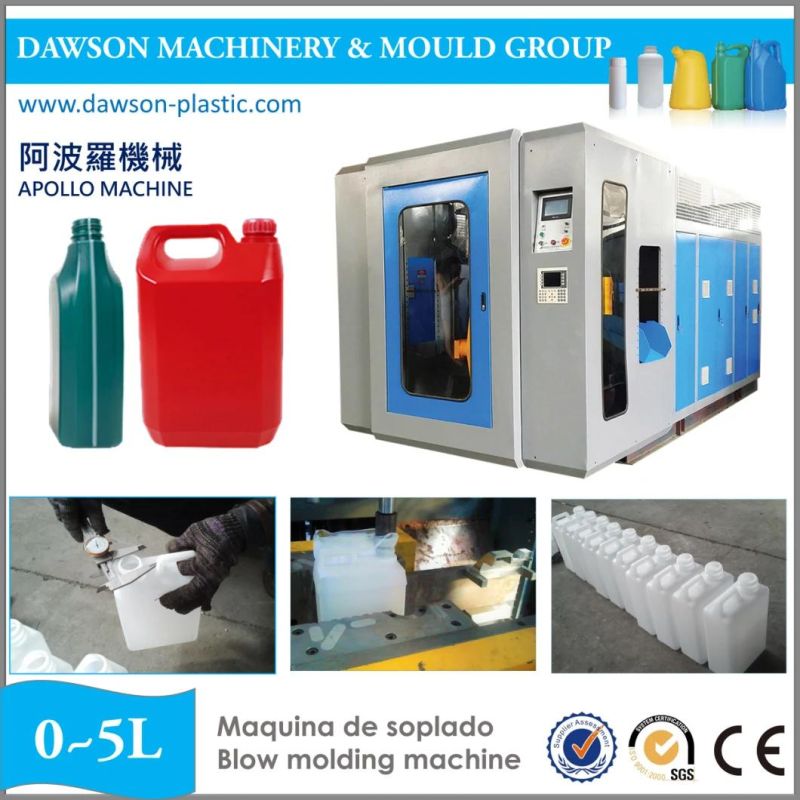

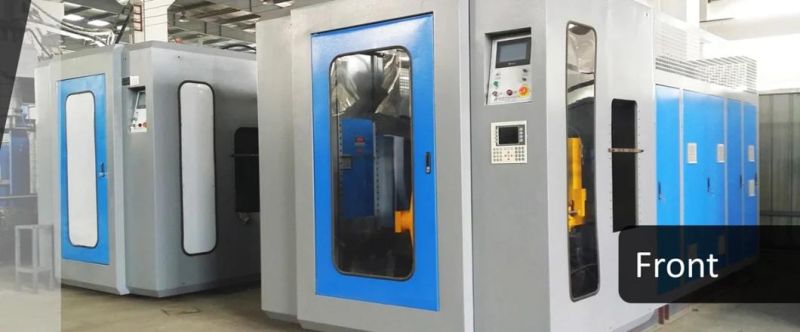

ABLB65 full automatic bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 5L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station two die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.




ABLB65 full-automatic bottle making machine is specially designed for plastic water bottles,medical bottles,lubricant oil bottles,cosmetic bottles,and other small plastic bottles not over5Liters.Double station and two die head design is very easy to operate and maintain.Most components of the blow molding machine are from world famous brand.



Max. Product volume	5Liters
Out put capacities	150~180pcs/h
Screw diameter	65mm
Screw L/D ratio	24L/d
Screw drive power	18.5kw
Screw heating capacity	6kw
Heating zones	3zones
HDPE output	80kg/h
Oil pump drive power	7.5kw
Clamping force	65kn
Mold max size	148-568mm
Mold stroke	330*370mm
Max die diameter	160mm
Blowing pressure	0.6mpa
Air volume	0.6m³/min
Cooling water pressure	0.3mpa
Water consumption	50L/min
Machine size	3.1*1.5*2.7m
Machine weight	5.5ton
