PVC Conduit Pipe Making Extrsuion Machine-Suke Machine
Qingdao Suke Machinery Co., Ltd.- Product Type:PVC Pipe
- Screw No.:Single-screw
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
- Customized:Customized
Base Info
- Model NO.:SJ65x132
- Condition:New
- Raw Material:PE
- Power Supply:380V Three Phase
- Inverter:ABB
- Intelligent Temperature Controller:Omron
- Button:Schneider
- Control System:PLC Control System
- Barrel Heating:4 Sections
- Warranty:12monthes
- After Sale Service:Life Long with Professional After Sale Team
- Machine Color:as Request
- Transport Package:as Export Standard for Plastics Machine
- Specification:ISO9001 CE
- Trademark:SUKE
- Origin:Qingdao, China
- HS Code:84775900
- Production Capacity:100pics,Year
Description
Basic Info.
Model NO. SJ65x132 Condition New Raw Material PE Power Supply 380V Three Phase Inverter ABB Intelligent Temperature Controller Omron Button Schneider Control System PLC Control System Barrel Heating 4 Sections Warranty 12monthes After Sale Service Life Long with Professional After Sale Team Machine Color as Request Transport Package as Export Standard for Plastics Machine Specification ISO9001 CE Trademark SUKE Origin Qingdao, China HS Code 84775900 Production Capacity 100pics/YearProduct Description
PVC Conduit Pipe Making Machine-Suke MachineMACHINE INTRODUCTION:
This line is used produce pvc electric conduit pipe by twin screw extruder.
The raw materail is pvc powder.
The type of extruder depends on the diameter range of pipe
PVC PIPE PRODUCTION PROCESS:
PVC powder+additive----- screw feeder ----- mixing ----- screw feeder ------ twin screw extruder ----- mould and calibrator-----vacuum forming table-----haul off machine------cutting machine-----stacker.
EQUIPMENT LIST:

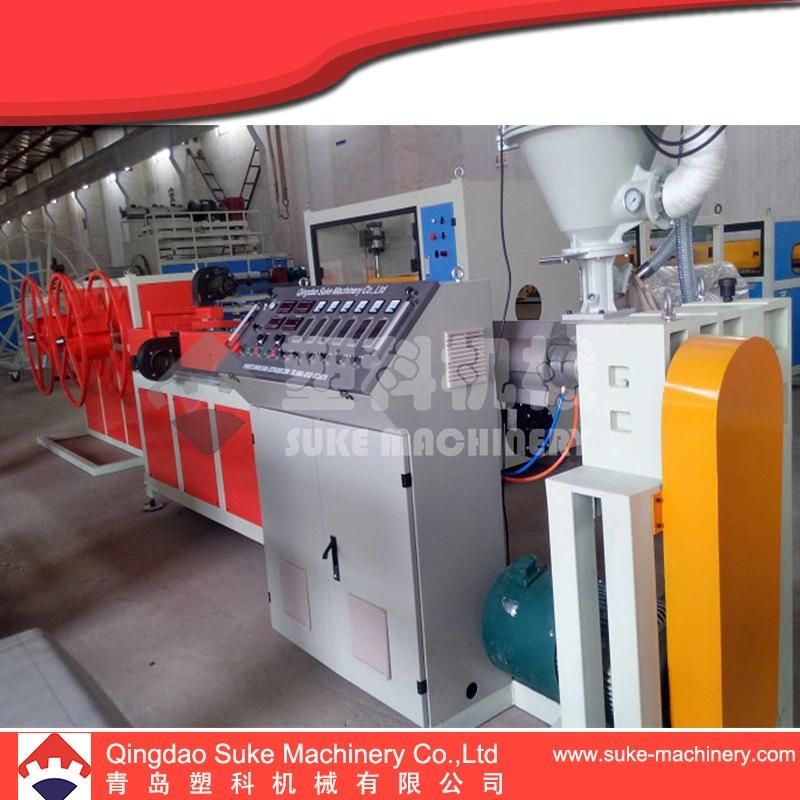

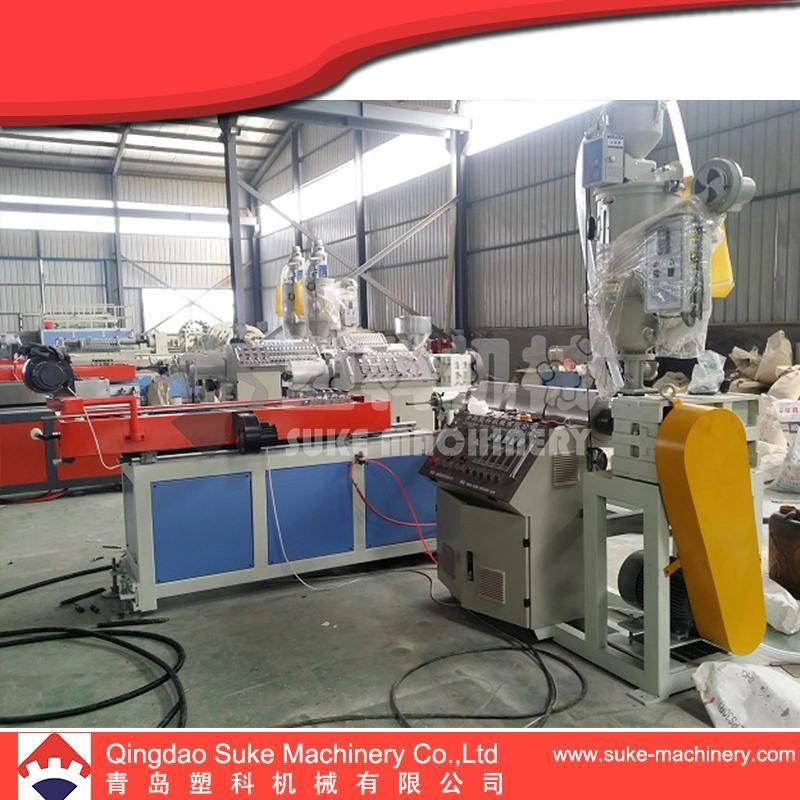

1. Twin Screw Extruder
2. Mould
3. Vacuum Shaping and Cooling Water Tank
4. Haul-off Machine
5. Cutting Machine
6. Stacker

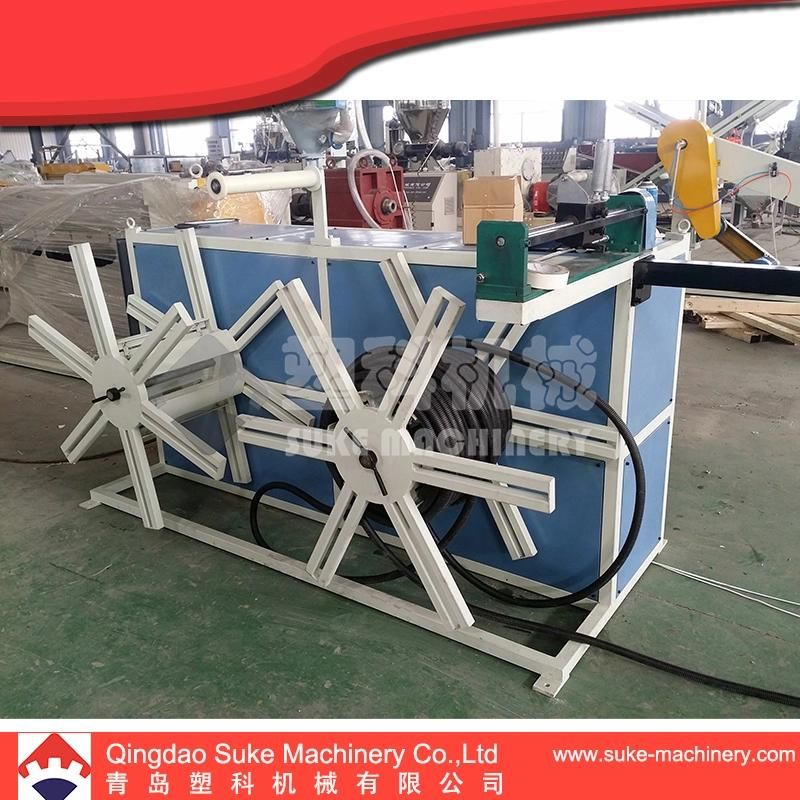

As the pipe with small diameter, the winder(winding machine) will be used.
It depends on the client's requiremetn.
MACHINE TYPE
Main extruder | SJSZ-51/105 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
Main motor power(KW) | 22 | 37 | 55 | 110 |
Pipe diameter(mm) | 16- 63mm | 75-160mm | 200-400 | 400- 630 |
Hauling speed(m/min) | 0.8-10 | 0.5-5 | 0.3-4 | 0.2-3 |
Max. Capacity(kg/h) | 120 | 260 | 400 | 600 |
Total power(KW) | 89 | 95 | 135 | 255 |
