• Model NO.：SJ-A Series
• Machine Weight：2t
• Certification：CE, ISO9001:2008
• Machine Color：We Can Make According to Your Demand
• Transport Package：Wrapping Film
• Specification：CE
• Trademark：Changyin
• Origin：China
• HS Code：84773090
• Production Capacity：500sets,Year

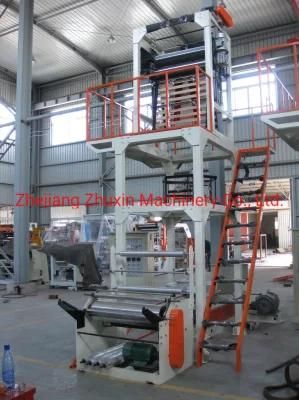

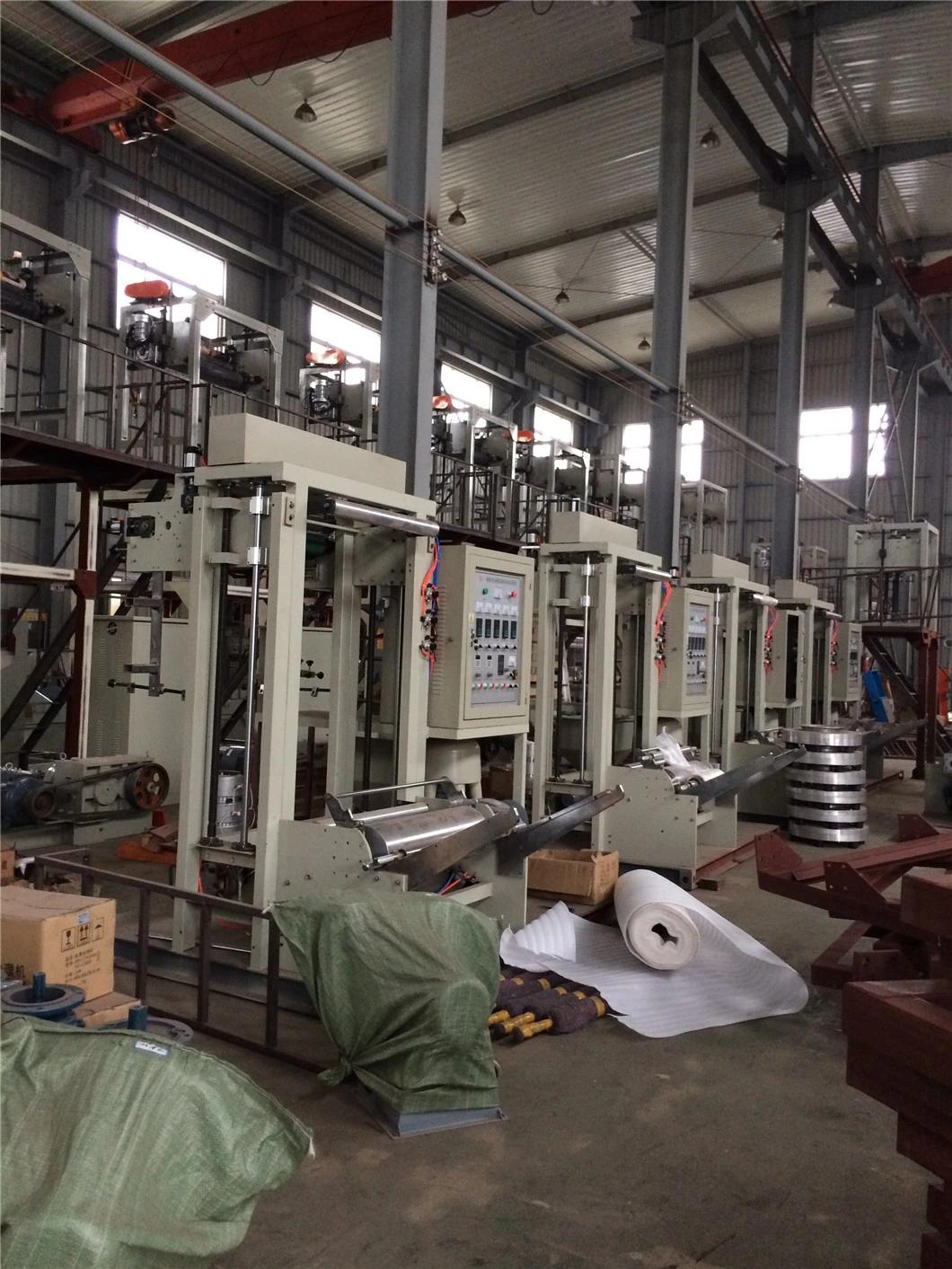

Performance and Characteristics:The machinge body is channel steel frame traction frequency friction,with single rolling friction,lift up and down which is suitable for blowing high-low pressure polyethylene industral fiml and agricultural film.
 Main Technical Variables:

Model	SJ-A45	SJ-A50	SJ-A55	SJ-A65
Suitable Material	LDPE,HDPE,LLDPE	LDPE,HDPE,LLDPE	LDPE,HDPE,LLDPE	LDPE,HDPE,LLDPE
Screw Diameter	45	50	55	65
Film Width(mm)	100-500	300-600	400-800	600-1200
Film Thickness (mm)(HD)	0.009-0.05	0.009-0.05	0.009-0.15	0.009-0.15
Film Thickness (mm)(LD)	0.02-0.15	0.02-0.15	0.03-0.15	0.03-0.15
Max Extrusion Output(kg/h)(HD)	40	45	55	65
Max Extrusion Output(kg/h)(LD)	4550	50	60	70
Screw L/D Length	28:130:1	28:130:1	28:130:1	28:130:1
Main Motor(kw)	7.5	11	15	22
Take-up Motor(kw)	0.75	1.1	1.1	1.5
Outline Dimension (L×W×H)(m)	5.0×2.0×4.1	5.0×2.2×4.5	5.5×2.5×5.2	5.8×2.8×6.3
